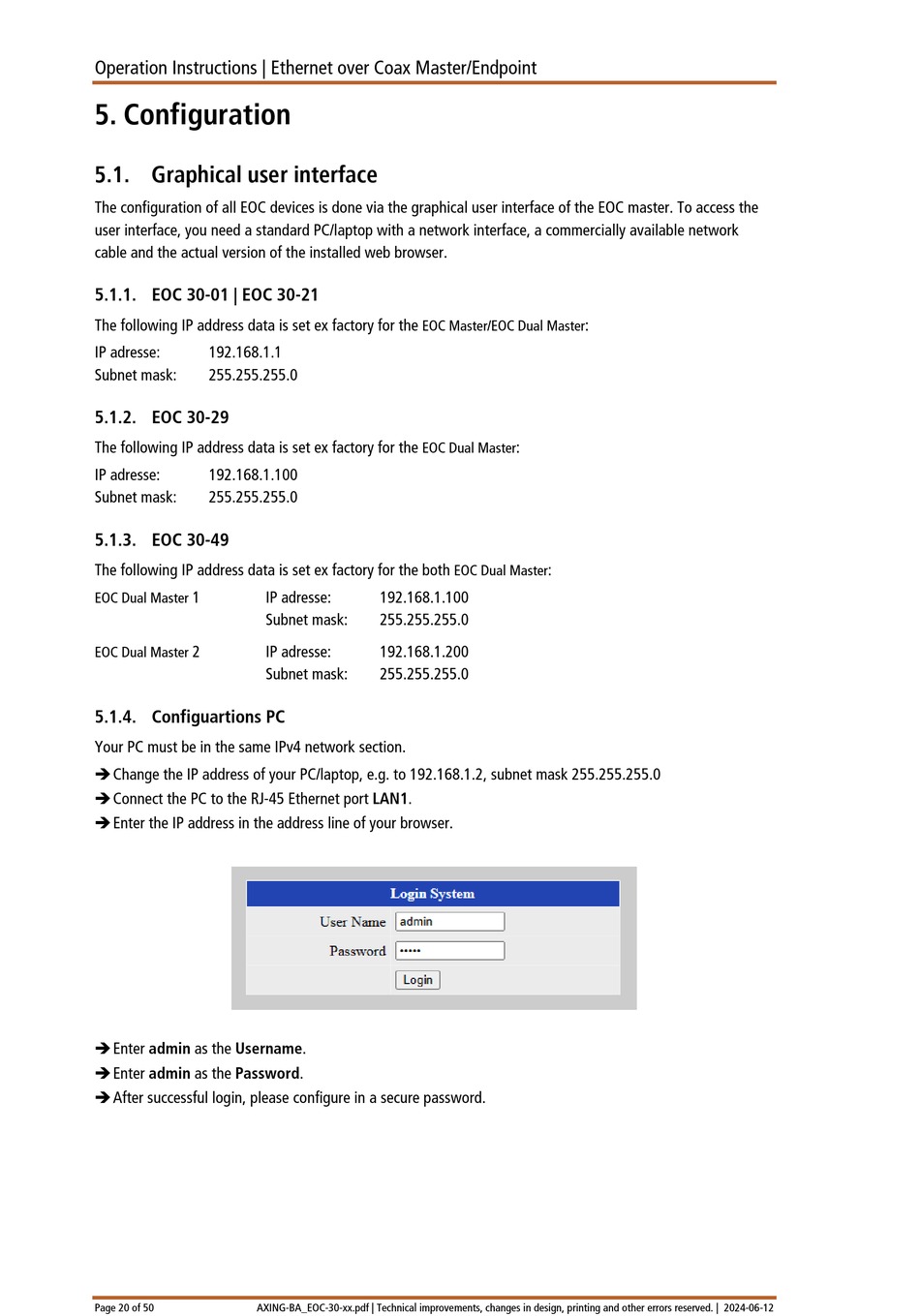

Operation Instructions | Ethernet over Coax Master/Endpoint
5. Configuration
5.1. Graphical user interface
The configuration of all EOC devices is done via the graphical user interface of the EOC master. To access the
user interface, you need a standard PC/laptop with a network interface, a commercially available network
cable and the actual version of the installed web browser.
5.1.1. EOC 30-01 | EOC 30-21
The following IP address data is set ex factory for the
IP adresse: 192.168.1.1
Subnet mask: 255.255.255.0
5.1.2. EOC 30-29
The following IP address data is set ex factory for the
IP adresse: 192.168.1.100
Subnet mask: 255.255.255.0
5.1.3. EOC 30-49
The following IP address data is set ex factory for the both
1 IP adresse:
EOC Dual Master
Subnet mask:
2 IP adresse:
EOC Dual Master
Subnet mask:
5.1.4. Configuartions PC
Your PC must be in the same IPv4 network section.
 Change the IP address of your PC/laptop, e.g. to 192.168.1.2, subnet mask 255.255.255.0
 Connect the PC to the RJ-45 Ethernet port LAN1.
 Enter the IP address in the address line of your browser.
 Enter admin as the Username.
 Enter admin as the Password.
 After successful login, please configure in a secure password.
Page 20 of 50 AXING-BA_EOC-30-xx.pdf | Technical improvements, changes in design, printing and other errors reserved. | 2024-06-12
EOC Master/EOC Dual Master
:
EOC Dual Master
:
EOC Dual Master
192.168.1.100
255.255.255.0
192.168.1.200
255.255.255.0
:
