Hdmi In : Connecting To An External Component With An Hdmi Cable; Attaching The Toroidal Ferrite Core To The Power Cord Of The Main Unit - Samsung HT-D5200 Benutzerhandbuch


After making the video connection, set the Video input source on your TV to match the
corresponding Video output (HDMI, Component or Composite) on your product.
See your TV owner's manual for more information on how to select the TV's Video Input source.

If you have set the product's remote control to operate your TV, press the TV SOURCE button
on the remote control and select HDMI as the external source of the TV.

You must have an HDMI connection to enjoy videos with 3D technology.

A long HDMI cable may cause a screen noise. If this is the case, set Deep Colour to Off in the
menu.

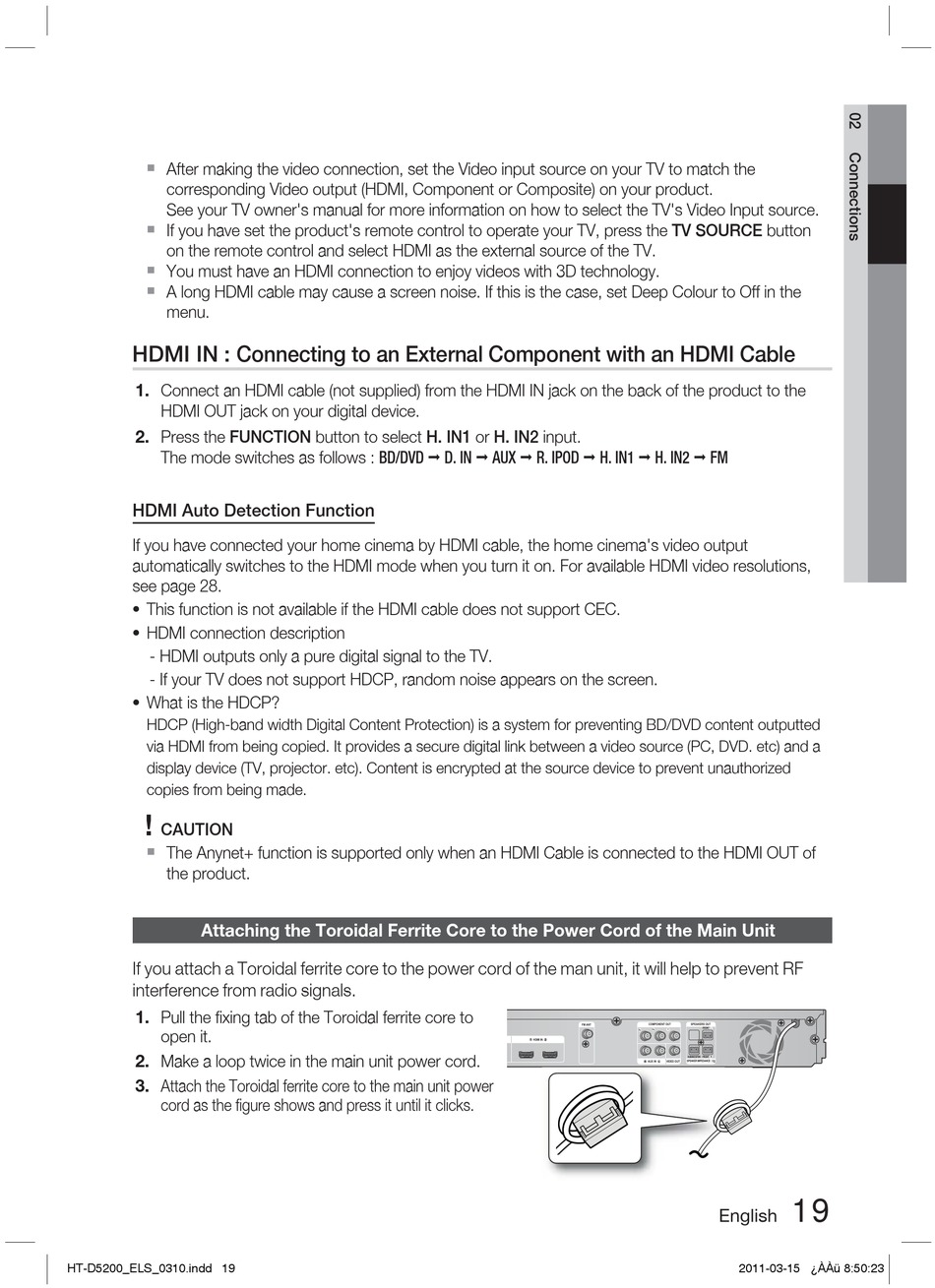

HDMI IN : Connecting to an External Component with an HDMI Cable

1. Connect an HDMI cable (not supplied) from the HDMI IN jack on the back of the product to the
HDMI OUT jack on your digital device.
2. Press the FUNCTION button to select H. IN1 or H. IN2 input.
The mode switches as follows : BD/DVD
HDMI Auto Detection Function
If you have connected your home cinema by HDMI cable, the home cinema's video output
automatically switches to the HDMI mode when you turn it on. For available HDMI video resolutions,
see page 28.
•
This function is not available if the HDMI cable does not support CEC.
•
HDMI connection description
- HDMI outputs only a pure digital signal to the TV.
- If your TV does not support HDCP, random noise appears on the screen.
•
What is the HDCP?
HDCP (High-band width Digital Content Protection) is a system for preventing BD/DVD content outputted
via HDMI from being copied. It provides a secure digital link between a video source (PC, DVD. etc) and a
display device (TV, projector. etc). Content is encrypted at the source device to prevent unauthorized
copies from being made.
!
CAUTION

The Anynet+ function is supported only when an HDMI Cable is connected to the HDMI OUT of
the product.

Attaching the Toroidal Ferrite Core to the Power Cord of the Main Unit

If you attach a Toroidal ferrite core to the power cord of the man unit, it will help to prevent RF
interference from radio signals.
1. Pull the fi xing tab of the Toroidal ferrite core to
open it.
2. Make a loop twice in the main unit power cord.
3. Attach the Toroidal ferrite core to the main unit power
cord as the fi gure shows and press it until it clicks.
