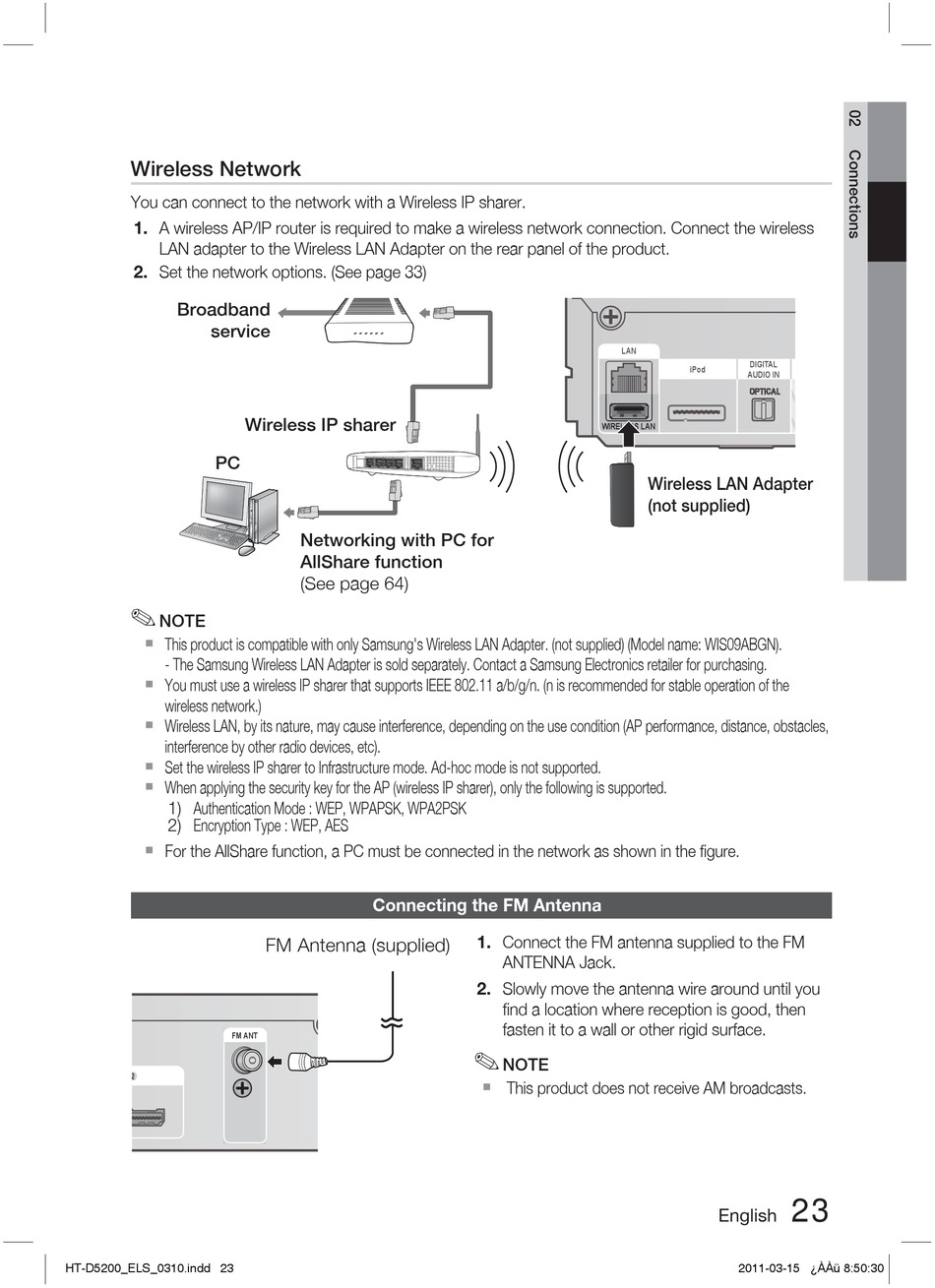

Wireless Network

You can connect to the network with a Wireless IP sharer.
1. A wireless AP/IP router is required to make a wireless network connection. Connect the wireless
LAN adapter to the Wireless LAN Adapter on the rear panel of the product.
2. Set the network options. (See page 33)
Broadband
service
PC
✎
NOTE

This product is compatible with only Samsung's Wireless LAN Adapter. (not supplied) (Model name: WIS09ABGN).
- The Samsung Wireless LAN Adapter is sold separately. Contact a Samsung Electronics retailer for purchasing.

You must use a wireless IP sharer that supports IEEE 802.11 a/b/g/n. (n is recommended for stable operation of the
wireless network.)

Wireless LAN, by its nature, may cause interference, depending on the use condition (AP performance, distance, obstacles,
interference by other radio devices, etc).

Set the wireless IP sharer to Infrastructure mode. Ad-hoc mode is not supported.

When applying the security key for the AP (wireless IP sharer), only the following is supported.
1) Authentication Mode : WEP, WPAPSK, WPA2PSK
2) Encryption Type : WEP, AES

For the AllShare function, a PC must be connected in the network as shown in the fi gure.
FM ANT
HT-D5200_ELS_0310.indd 23 HT-D5200_ELS_0310.indd 23
Wireless IP sharer
Networking with PC for
AllShare function
(See page 64)

Connecting the FM Antenna

FM Antenna (supplied)
LAN LAN
WIRELESS LAN
Wireless LAN Adapter
(not supplied)
1. Connect the FM antenna supplied to the FM
ANTENNA Jack.
2. Slowly move the antenna wire around until you
fi nd a location where reception is good, then
fasten it to a wall or other rigid surface.
✎
NOTE

This product does not receive AM broadcasts.
DIGITAL DIGITAL
iPod iPod
AUDIO IN AUDIO IN
OPTICAL
23
English
