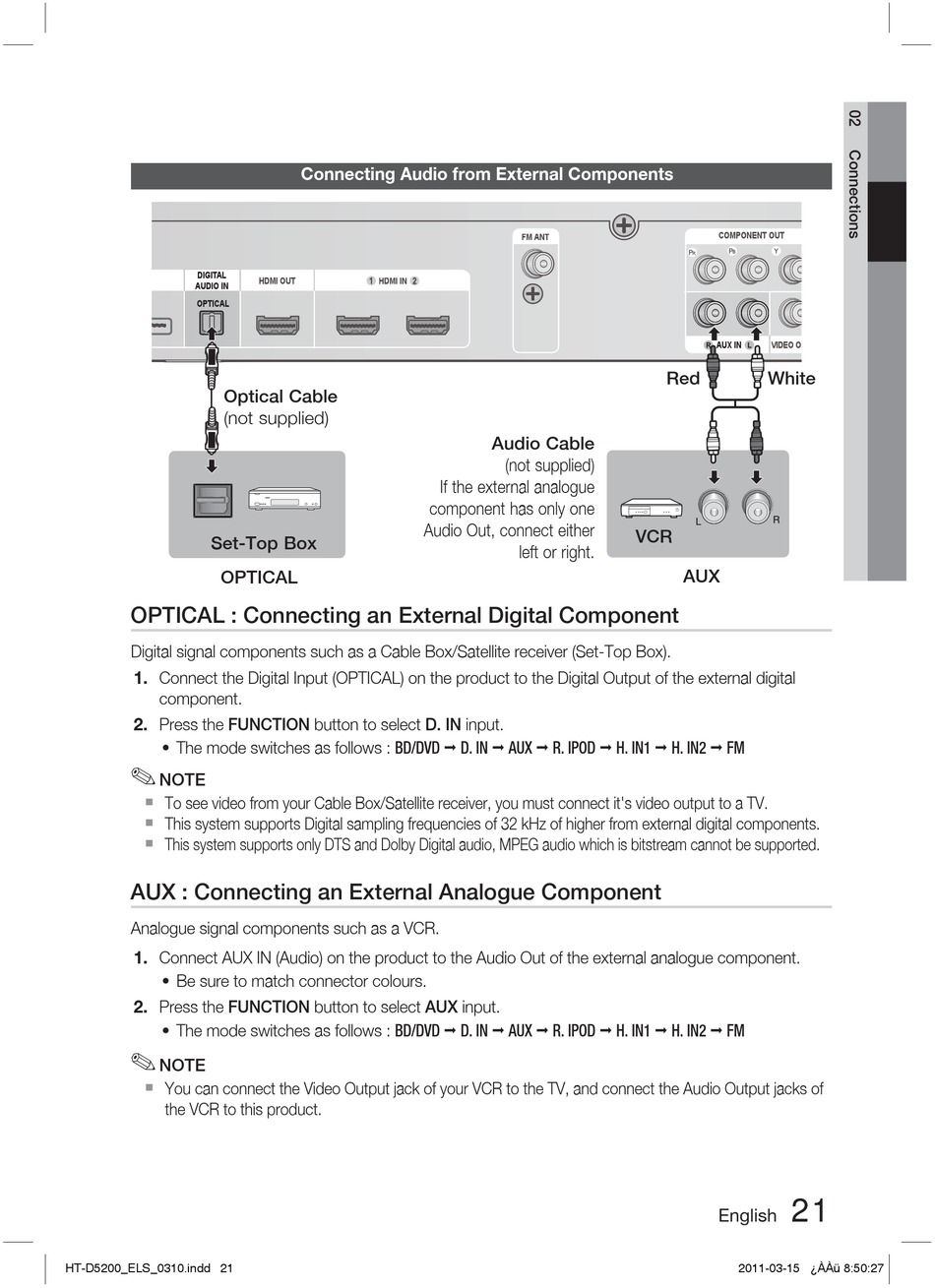

OPTICAL : Connecting an External Digital Component

Digital signal components such as a Cable Box/Satellite receiver (Set-Top Box).
1. Connect the Digital Input (OPTICAL) on the product to the Digital Output of the external digital
component.
2. Press the FUNCTION button to select D. IN input.
•
The mode switches as follows : BD/DVD
✎
NOTE

To see video from your Cable Box/Satellite receiver, you must connect it's video output to a TV.

This system supports Digital sampling frequencies of 32 kHz of higher from external digital components. This system supports Digital sampling frequencies of 32 kHz of higher from external digital components.

This system supports only DTS and Dolby Digital audio, MPEG audio which is bitstream cannot be supported.

AUX : Connecting an External Analogue Component

Analogue signal components such as a VCR.
1. Connect AUX IN (Audio) on the product to the Audio Out of the external analogue component.
•
Be sure to match connector colours.
2. Press the FUNCTION button to select AUX input.
•
The mode switches as follows : BD/DVD
✎
NOTE

You can connect the Video Output jack of your VCR to the TV, and connect the Audio Output jacks of
the VCR to this product.
