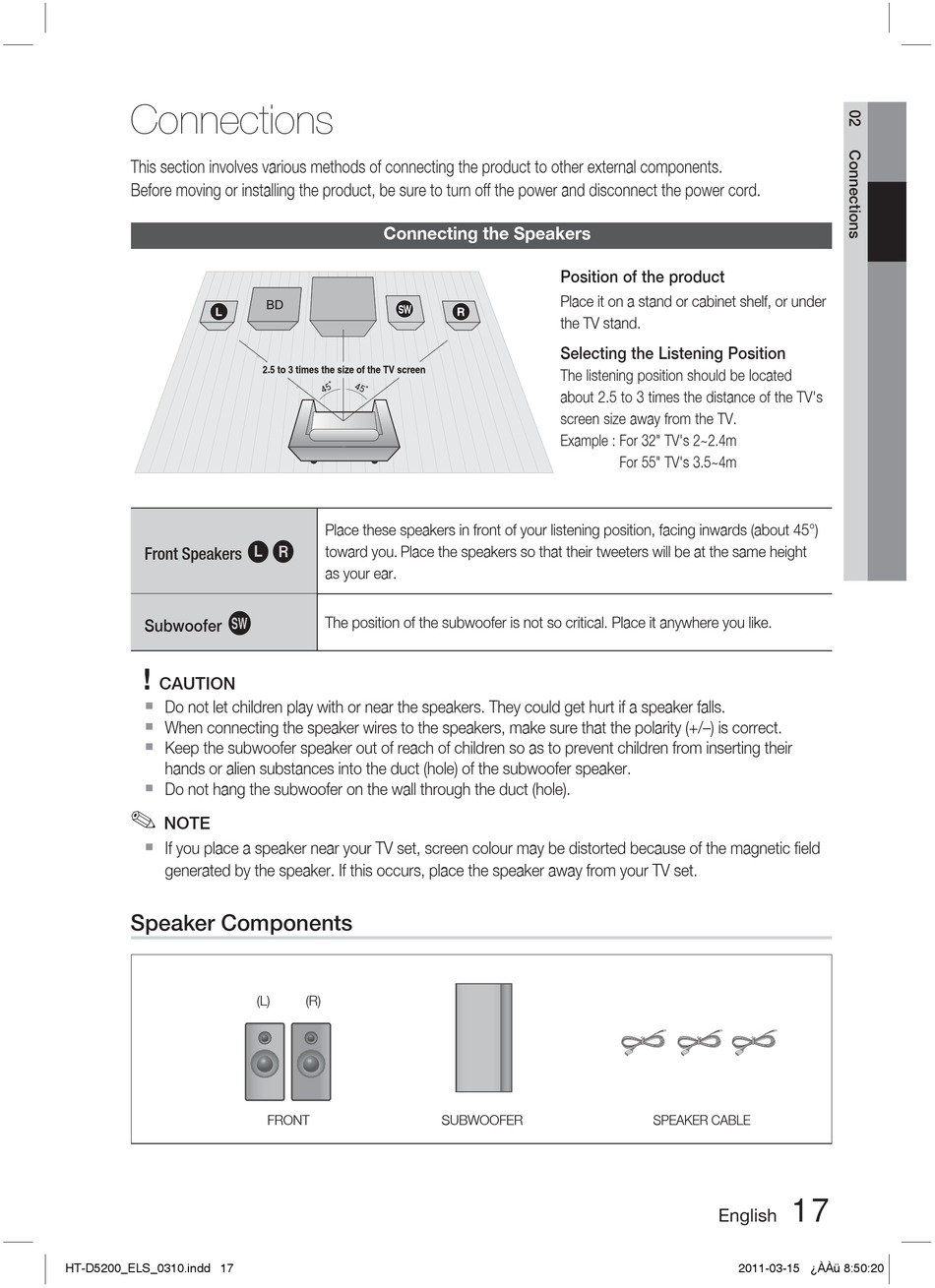

Connections
This section involves various methods of connecting the product to other external components.
Before moving or installing the product, be sure to turn off the power and disconnect the power cord.
Front Speakers
g
Subwoofer
!
CAUTION

Do not let children play with or near the speakers. They could get hurt if a speaker falls.

When connecting the speaker wires to the speakers, make sure that the polarity (+/ –) is correct.

Keep the subwoofer speaker out of reach of children so as to prevent children from inserting their
hands or alien substances into the duct (hole) of the subwoofer speaker.

Do not hang the subwoofer on the wall through the duct (hole).
✎
NOTE

If you place a speaker near your TV set, screen colour may be distorted because of the magnetic fi eld
generated by the speaker. If this occurs, place the speaker away from your TV set.

Speaker Components

HT-D5200_ELS_0310.indd 17 HT-D5200_ELS_0310.indd 17
Connecting the Speakers
SW
Place these speakers in front of your listening position, facing inwards (about 45°)
ei
toward you. Place the speakers so that their tweeters will be at the same height
as your ear.
The position of the subwoofer is not so critical. Place it anywhere you like.
(L) (R)
FRONT
Position of the product
Place it on a stand or cabinet shelf, or under
the TV stand.
Selecting the Listening Position
The listening position should be located
about 2.5 to 3 times the distance of the TV's
screen size away from the TV.
Example : For 32" TV's 2~2.4m
SUBWOOFER
For 55" TV's 3.5~4m
SPEAKER CABLE
17
English
