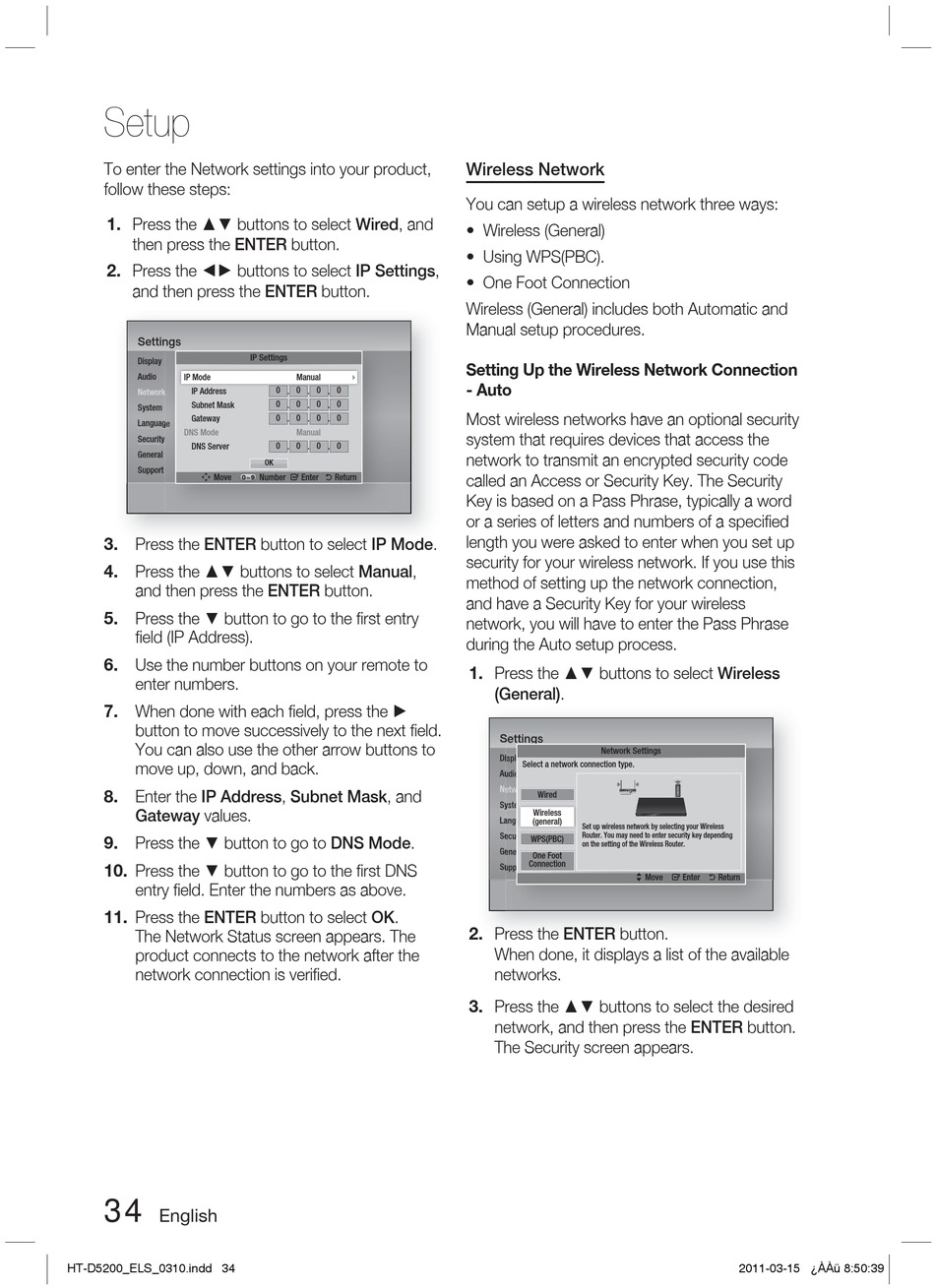

Samsung HT-D5200 Benutzerhandbuch Seite 34

Setup
To enter the Network settings into your product,
follow these steps:
1. Press the ▲▼ buttons to select Wired, and
then press the ENTER button.
2. Press the ◄► buttons to select IP Settings,
and then press the ENTER button.
Settings
Display
Audio IP Mode
IP Address
Network
Subnet Mask
System
Gateway
Language
DNS Mode
Security
DNS Server
General
Support
m Move
3. Press the ENTER button to select IP Mode.
4. Press the ▲▼ buttons to select Manual,
and then press the ENTER button.
5. Press the ▼ button to go to the fi rst entry
fi eld (IP Address).
6. Use the number buttons on your remote to
enter numbers.
7. When done with each fi eld, press the ►
button to move successively to the next fi eld.
You can also use the other arrow buttons to
move up, down, and back.
8. Enter the IP Address, Subnet Mask, and
Gateway values.
9. Press the ▼ button to go to DNS Mode.
10. Press the ▼ button to go to the fi rst DNS
entry fi eld. Enter the numbers as above.
11. Press the ENTER button to select OK.
The Network Status screen appears. The
product connects to the network after the
network connection is verifi ed.
34
English
HT-D5200_ELS_0310.indd 34 HT-D5200_ELS_0310.indd 34
IP Settings
Manual
0 . 0 . 0 . 0
0 . 0 . 0 . 0
0 . 0 . 0 . 0
Manual
0 . 0 . 0 . 0
OK
Number " Enter ' Return
Wireless Network
You can setup a wireless network three ways:
• Wireless (General)
• Using WPS(PBC).
• One Foot Connection
Wireless (General) includes both Automatic and
Manual setup procedures.
Setting Up the Wireless Network Connection
- Auto
Most wireless networks have an optional security
system that requires devices that access the
network to transmit an encrypted security code
called an Access or Security Key. The Security
Key is based on a Pass Phrase, typically a word
or a series of letters and numbers of a specifi ed
length you were asked to enter when you set up
security for your wireless network. If you use this
method of setting up the network connection,
and have a Security Key for your wireless
network, you will have to enter the Pass Phrase
during the Auto setup process.
1. Press the ▲▼ buttons to select Wireless
(General).
Settings
Network Settings
Display
Select a network connection type.
Audio
Network
Wired
System
Wireless
Language
(general)
Set up wireless network by selecting your Wireless
Security Router. You may need to enter security key depending
WPS(PBC)
on the setting of the Wireless Router.
General
One Foot
Connection
Support
> Move " Enter ' Return
2. Press the ENTER button.
When done, it displays a list of the available
networks.
3. Press the ▲▼ buttons to select the desired
network, and then press the ENTER button.
The Security screen appears.
