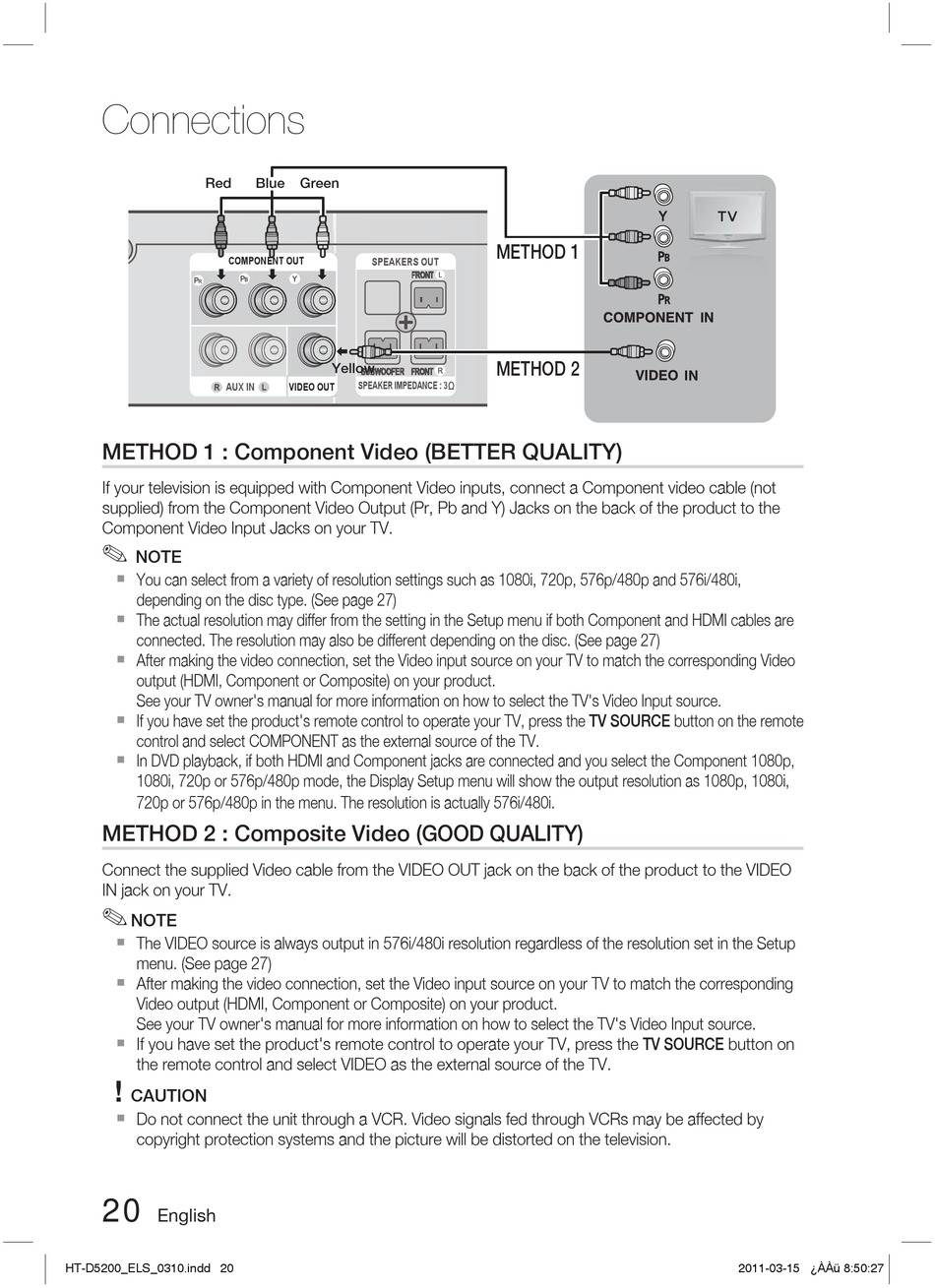

Connections
Red
COMPONENT OUT
AUX IN AUX IN
METHOD 1 : Component Video
If your television is equipped with Component Video inputs, connect a Component video cable (not
supplied) from the Component Video Output (Pr, Pb and Y) Jacks on the back of the product to the
Component Video Input Jacks on your TV.
✎
NOTE

You can select from a variety of resolution settings such as 1080i, 720p, 576p/480p and 576i/480i,
depending on the disc type. (See page 27)

The actual resolution may differ from the setting in the Setup menu if both Component and HDMI cables are
connected. The resolution may also be different depending on the disc. (See page 27)

After making the video connection, set the Video input source on your TV to match the corresponding Video
output (HDMI, Component or Composite) on your product.
See your TV owner's manual for more information on how to select the TV's Video Input source.

If you have set the product's remote control to operate your TV, press the TV SOURCE button on the remote
control and select COMPONENT as the external source of the TV.

In DVD playback, if both HDMI and Component jacks are connected and you select the Component 1080p,
1080i, 720p or 576p/480p mode, the Display Setup menu will show the output resolution as 1080p, 1080i,
720p or 576p/480p in the menu. The resolution is actually 576i/480i.
METHOD 2 : Composite Video
Connect the supplied Video cable from the VIDEO OUT jack on the back of the product to the VIDEO
IN jack on your TV.
✎
NOTE

The VIDEO source is always output in 576i/480i resolution regardless of the resolution set in the Setup
menu. (See page 27)

After making the video connection, set the Video input source on your TV to match the corresponding
Video output (HDMI, Component or Composite) on your product.
See your TV owner's manual for more information on how to select the TV's Video Input source.

If you have set the product's remote control to operate your TV, press the TV SOURCE button on
the remote control and select VIDEO as the external source of the TV.
!
CAUTION

Do not connect the unit through a VCR. Video signals fed through VCRs may be affected by
copyright protection systems and the picture will be distorted on the television.
20
English
HT-D5200_ELS_0310.indd 20 HT-D5200_ELS_0310.indd 20
Blue Green
SPEAKERS OUT SPEAKERS OUT
FRONT
Yellow
SUBWOOFER FRONT
SPEAKER IMPEDANCE : 3 SPEAKER IMPEDANCE : 3
VIDEO OUT
(BETTER QUALITY)
(GOOD QUALITY)
METHOD 1
METHOD 2
