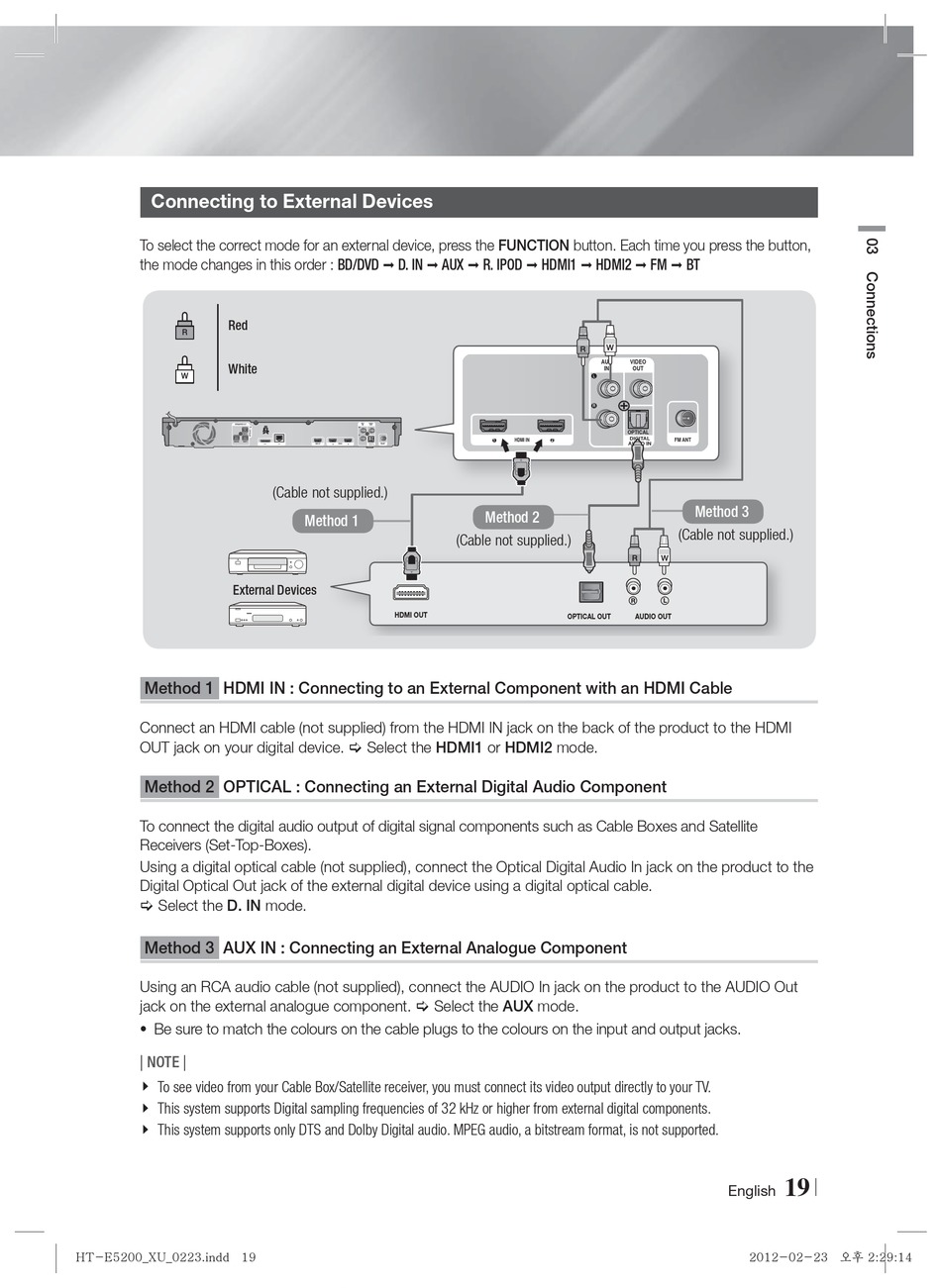

Connecting to External Devices

To select the correct mode for an external device, press the FUNCTION button. Each time you press the button,
the mode changes in this order : BD/DVD
Red
R
White
W
SPEAKERS OUT
External Devices
Method 1 HDMI IN : Connecting to an External Component with an HDMI Cable
Connect an HDMI cable (not supplied) from the HDMI IN jack on the back of the product to the HDMI
OUT jack on your digital device.  Select the HDMI1 or HDMI2 mode.
Method 2 OPTICAL : Connecting an External Digital Audio Component
To connect the digital audio output of digital signal components such as Cable Boxes and Satellite
Receivers (Set-Top-Boxes).
Using a digital optical cable (not supplied), connect the Optical Digital Audio In jack on the product to the
Digital Optical Out jack of the external digital device using a digital optical cable.
 Select the D. IN mode.
Method 3 AUX IN : Connecting an External Analogue Component
Using an RCA audio cable (not supplied), connect the AUDIO In jack on the product to the AUDIO Out
jack on the external analogue component.  Select the AUX mode.
• Be sure to match the colours on the cable plugs to the colours on the input and output jacks.
| NOTE |
\ To see video from your Cable Box/Satellite receiver, you must connect its video output directly to your TV.
\ This system supports Digital sampling frequencies of 32 kHz or higher from external digital components.
\ This system supports only DTS and Dolby Digital audio. MPEG audio, a bitstream format, is not supported.
HT-E5200_XU_0223.indd 19 HT-E5200_XU_0223.indd 19
D. IN
AUX VIDEO
IN OUT
OPTICAL
iPod LAN HDMI OUT 1 HDMI IN 2 DIGITAL FM ANT
AUDIO IN
(Cable not supplied.)
Method 1
HDMI OUT
AUX R. IPOD HDMI1 HDMI2
AUX
IN
1 HDMI IN 2
Method 2
(Cable not supplied.)
OPTICAL OUT
FM BT
VIDEO
OUT
OPTICAL
DIGITAL
FM ANT
AUDIO IN
Method 3
(Cable not supplied.)
AUDIO OUT
19
English
