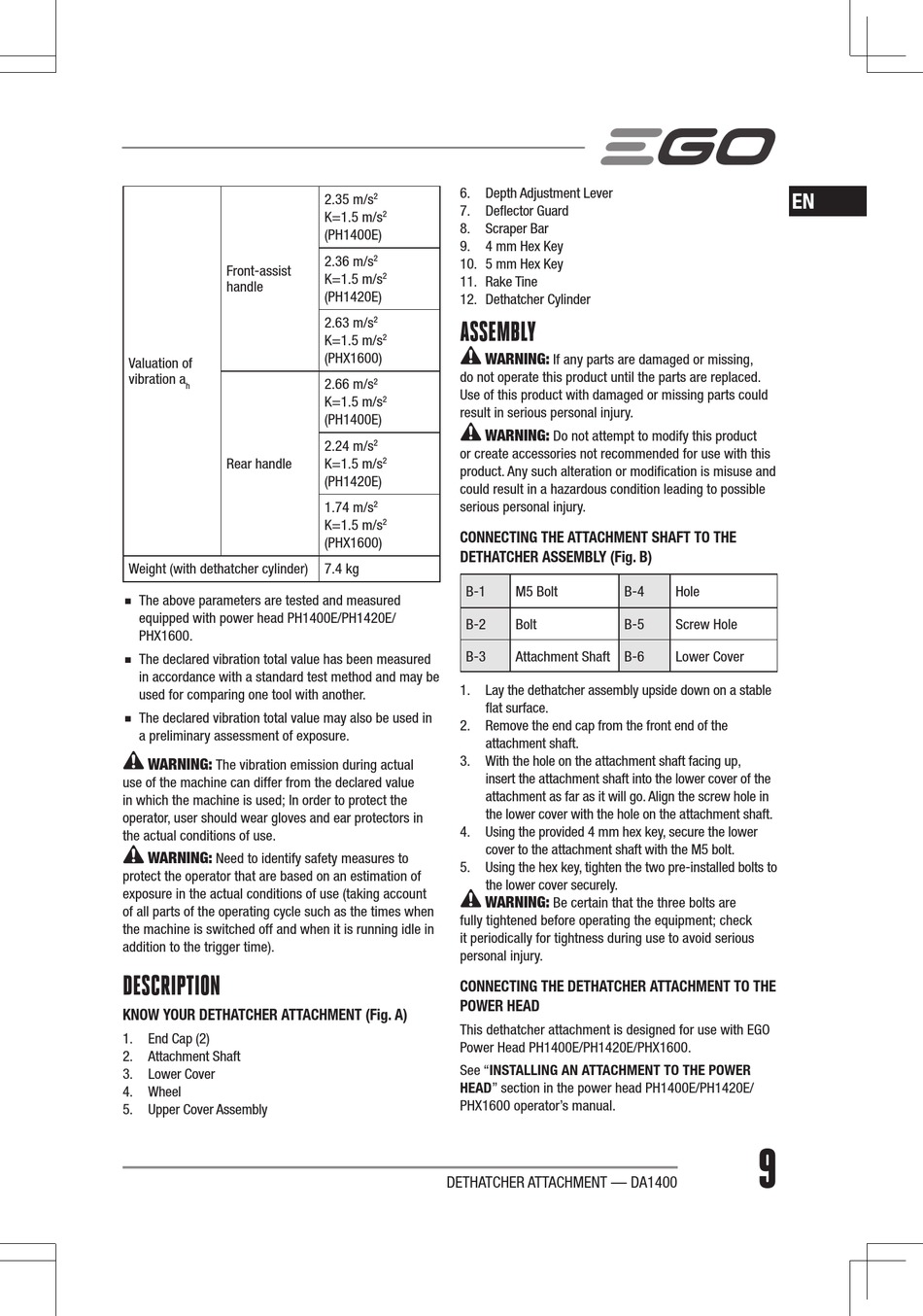

Ego Power+ DA1400 Anleitung Seite 9

Front-assist
handle
Valuation of
vibration a
h
Rear handle
Weight (with dethatcher cylinder)
◾
The above parameters are tested and measured
equipped with power head PH1400E/PH1420E/
PHX1600.
◾
The declared vibration total value has been measured
in accordance with a standard test method and may be
used for comparing one tool with another.
◾
The declared vibration total value may also be used in
a preliminary assessment of exposure.
WARNING:
The vibration emission during actual
use of the machine can differ from the declared value
in which the machine is used; In order to protect the
operator, user should wear gloves and ear protectors in
the actual conditions of use.
WARNING:
Need to identify safety measures to
protect the operator that are based on an estimation of
exposure in the actual conditions of use (taking account
of all parts of the operating cycle such as the times when
the machine is switched off and when it is running idle in
addition to the trigger time).
DESCRIPTION
KNOW YOUR DETHATCHER ATTACHMENT (Fig. A)
1. End Cap (2)
2. Attachment Shaft
3. Lower Cover
4. Wheel
5. Upper Cover Assembly
6. Depth Adjustment Lever
2.35 m/s
2
7. Deflector Guard
K=1.5 m/s
2
8. Scraper Bar
(PH1400E)
9. 4 mm Hex Key
2.36 m/s
2
10. 5 mm Hex Key
K=1.5 m/s 2
11. Rake Tine
(PH1420E)
12. Dethatcher Cylinder
2.63 m/s
2
ASSEMBLY
K=1.5 m/s
2
(PHX1600) WARNING:
do not operate this product until the parts are replaced.
2.66 m/s
2
Use of this product with damaged or missing parts could
K=1.5 m/s
2
result in serious personal injury.
(PH1400E)
WARNING:
2.24 m/s 2
or create accessories not recommended for use with this
K=1.5 m/s
2
product. Any such alteration or modification is misuse and
(PH1420E)
could result in a hazardous condition leading to possible
serious personal injury.
1.74 m/s
2
K=1.5 m/s
2
CONNECTING THE ATTACHMENT SHAFT TO THE
(PHX1600)
DETHATCHER ASSEMBLY (Fig. B)
7.4 kg
B-1
B-2
B-3
1. Lay the dethatcher assembly upside down on a stable
flat surface.
2. Remove the end cap from the front end of the
attachment shaft.
3. With the hole on the attachment shaft facing up,
insert the attachment shaft into the lower cover of the
attachment as far as it will go. Align the screw hole in
the lower cover with the hole on the attachment shaft.
4. Using the provided 4 mm hex key, secure the lower
cover to the attachment shaft with the M5 bolt.
5. Using the hex key, tighten the two pre-installed bolts to
the lower cover securely.
WARNING:
fully tightened before operating the equipment; check
it periodically for tightness during use to avoid serious
personal injury.
CONNECTING THE DETHATCHER ATTACHMENT TO THE
POWER HEAD
This dethatcher attachment is designed for use with EGO
Power Head PH1400E/PH1420E/PHX1600.
See "INSTALLING AN ATTACHMENT TO THE POWER
HEAD" section in the power head PH1400E/PH1420E/
PHX1600 operator's manual.
DETHATCHER ATTACHMENT — DA1400
If any parts are damaged or missing,
Do not attempt to modify this product
M5 Bolt B-4 Hole
Bolt B-5 Screw Hole
Attachment Shaft B-6 Lower Cover
Be certain that the three bolts are
EN
9
