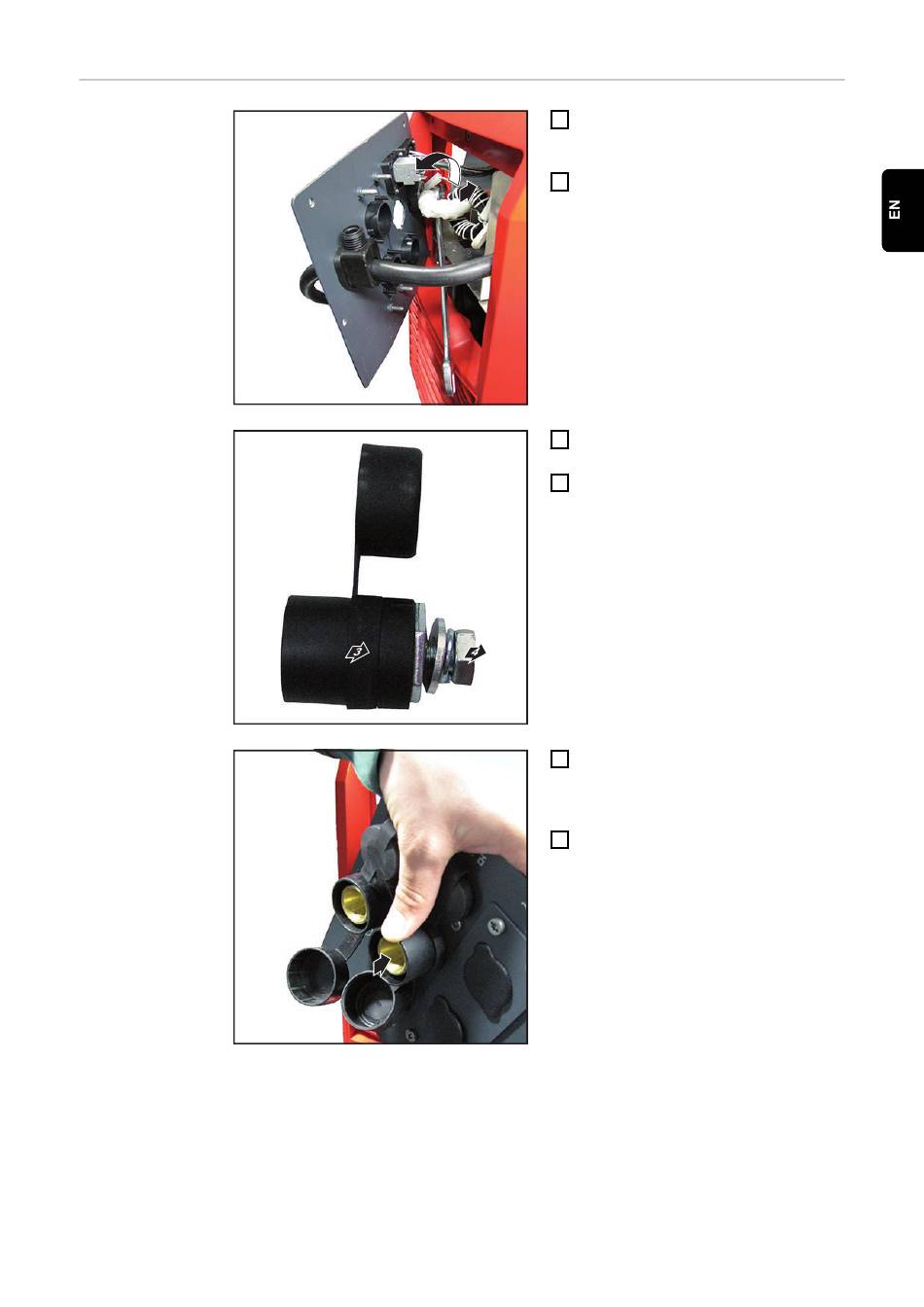

Installing the
OPT/i TPS rear
2nd plus socket
1
2
5
Undo the 19 mm hexagon bolt on the
1
existing plus socket
Remove the hexagon bolt
2
Insert the 2nd plus socket into the
3
cover
Remove the 19 mm hexagon bolt,
4
spring washer and washer
Insert the 2nd plus socket with the
5
cover downwards from the outside
inwards into the opening on the con-
nection plate
Fix the 2nd plus socket to the inside of
6
the connection plate using the 32 mm
hexagon nut,
tightening torque = 35 Nm
