Fronius OPT/i TPS 2 Installationsanleitung Seite 15

And finally...
1
2
1 0
1 2
1 1
1 3

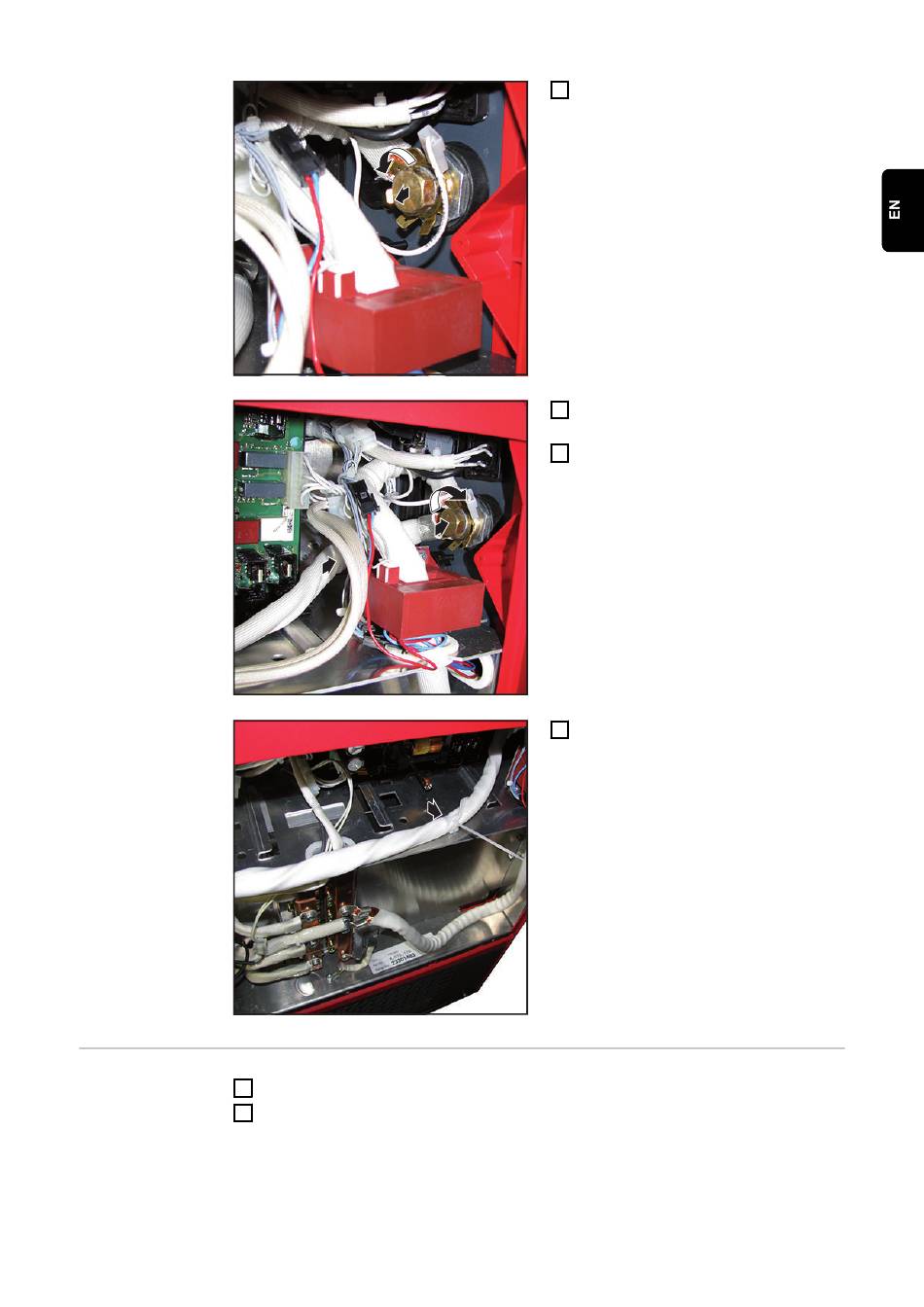

Fit the control panel to the power source using two TX25 screws
Attach the right side panel to the power source
Unscrew the hexagon bolt from the
10
existing current socket on the inside of
the power source rear panel
Route the new cable behind the exis-
11
ting cable
Connect the new cable to the existing
12
current socket using the hexagon bolt
Tightening torque = 15 - 35 Nm
Secure cables using cable ties
13
15
