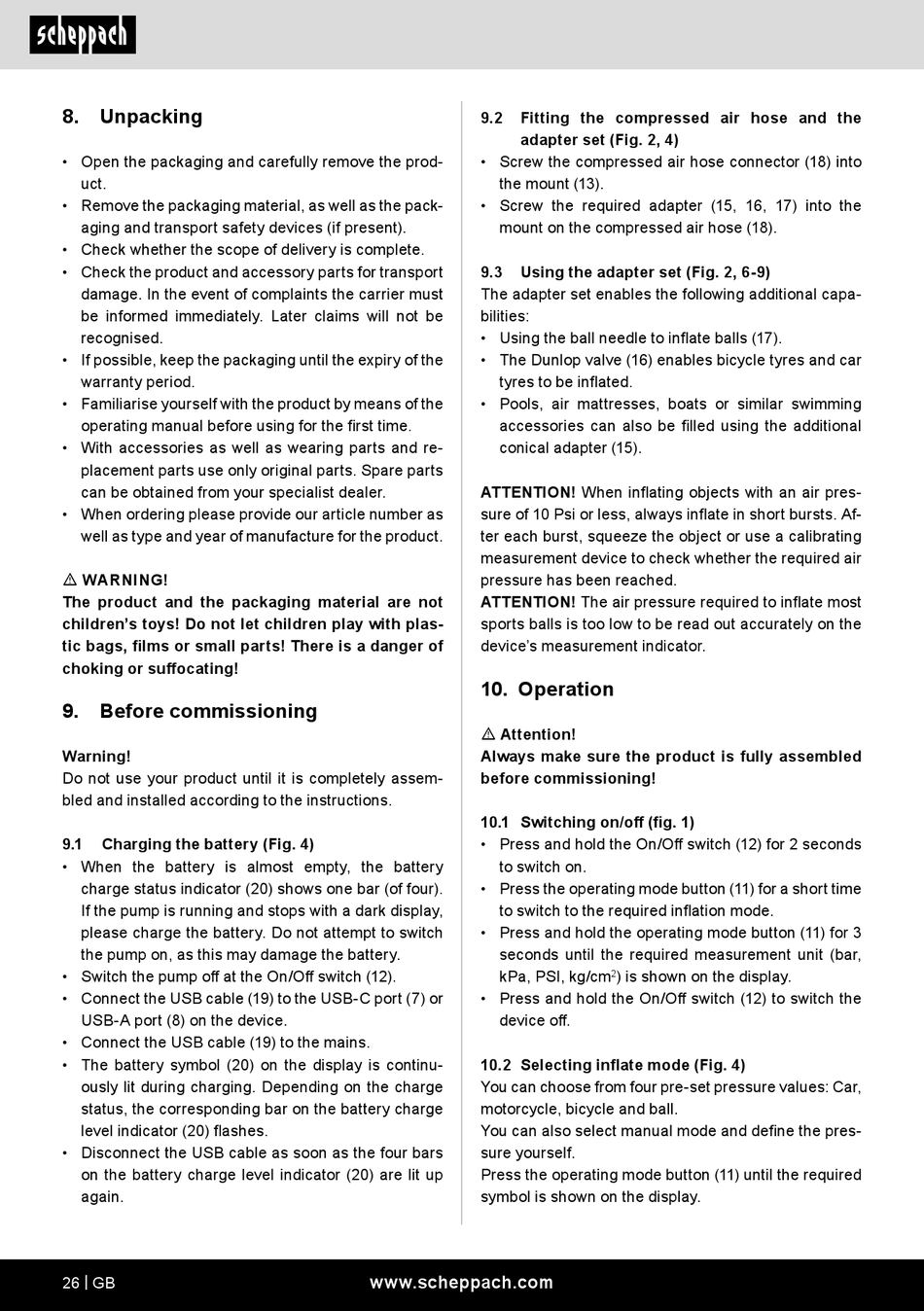

8. Unpacking
• Open the packaging and carefully remove the prod-
uct.
• Remove the packaging material, as well as the pack-
aging and transport safety devices (if present).
• Check whether the scope of delivery is complete.
• Check the product and accessory parts for transport
damage. In the event of complaints the carrier must
be informed immediately. Later claims will not be
recognised.
• If possible, keep the packaging until the expiry of the
warranty period.
• Familiarise yourself with the product by means of the
operating manual before using for the first time.
• With accessories as well as wearing parts and re-
placement parts use only original parts. Spare parts
can be obtained from your specialist dealer.
• When ordering please provide our article number as
well as type and year of manufacture for the product.
m WARNING!
The product and the packaging material are not
children's toys! Do not let children play with plas-
tic bags, films or small parts! There is a danger of
choking or suffocating!
9. Before commissioning
Warning!
Do not use your product until it is completely assem-
bled and installed according to the instructions.
9.1 Charging the battery (Fig. 4)
• When the battery is almost empty, the battery
charge status indicator (20) shows one bar (of four).
If the pump is running and stops with a dark display,
please charge the battery. Do not attempt to switch
the pump on, as this may damage the battery.
• Switch the pump off at the On/Off switch (12).
• Connect the USB cable (19) to the USB-C port (7) or
USB-A port (8) on the device.
• Connect the USB cable (19) to the mains.
• The battery symbol (20) on the display is continu-
ously lit during charging. Depending on the charge
status, the corresponding bar on the battery charge
level indicator (20) flashes.
• Disconnect the USB cable as soon as the four bars
on the battery charge level indicator (20) are lit up
again.
26 | GB
9.2 Fitting the compressed air hose and the
adapter set (Fig. 2, 4)
• Screw the compressed air hose connector (18) into
the mount (13).
• Screw the required adapter (15, 16, 17) into the
mount on the compressed air hose (18).
9.3 Using the adapter set (Fig. 2, 6-9)
The adapter set enables the following additional capa-
bilities:
• Using the ball needle to inflate balls (17).
• The Dunlop valve (16) enables bicycle tyres and car
tyres to be inflated.
• Pools, air mattresses, boats or similar swimming
accessories can also be filled using the additional
conical adapter (15).
ATTENTION! When inflating objects with an air pres-
sure of 10 Psi or less, always inflate in short bursts. Af-
ter each burst, squeeze the object or use a calibrating
measurement device to check whether the required air
pressure has been reached.
ATTENTION! The air pressure required to inflate most
sports balls is too low to be read out accurately on the
device's measurement indicator.
10. Operation
m Attention!
Always make sure the product is fully assembled
before commissioning!
10.1 Switching on/off (fig. 1)
• Press and hold the On/Off switch (12) for 2 seconds
to switch on.
• Press the operating mode button (11) for a short time
to switch to the required inflation mode.
• Press and hold the operating mode button (11) for 3
seconds until the required measurement unit (bar,
kPa, PSI, kg/cm
• Press and hold the On/Off switch (12) to switch the
device off.
10.2 Selecting inflate mode (Fig. 4)
You can choose from four pre-set pressure values: Car,
motorcycle, bicycle and ball.
You can also select manual mode and define the pres-
sure yourself.
Press the operating mode button (11) until the required
symbol is shown on the display.
www.scheppach.com
) is shown on the display.
