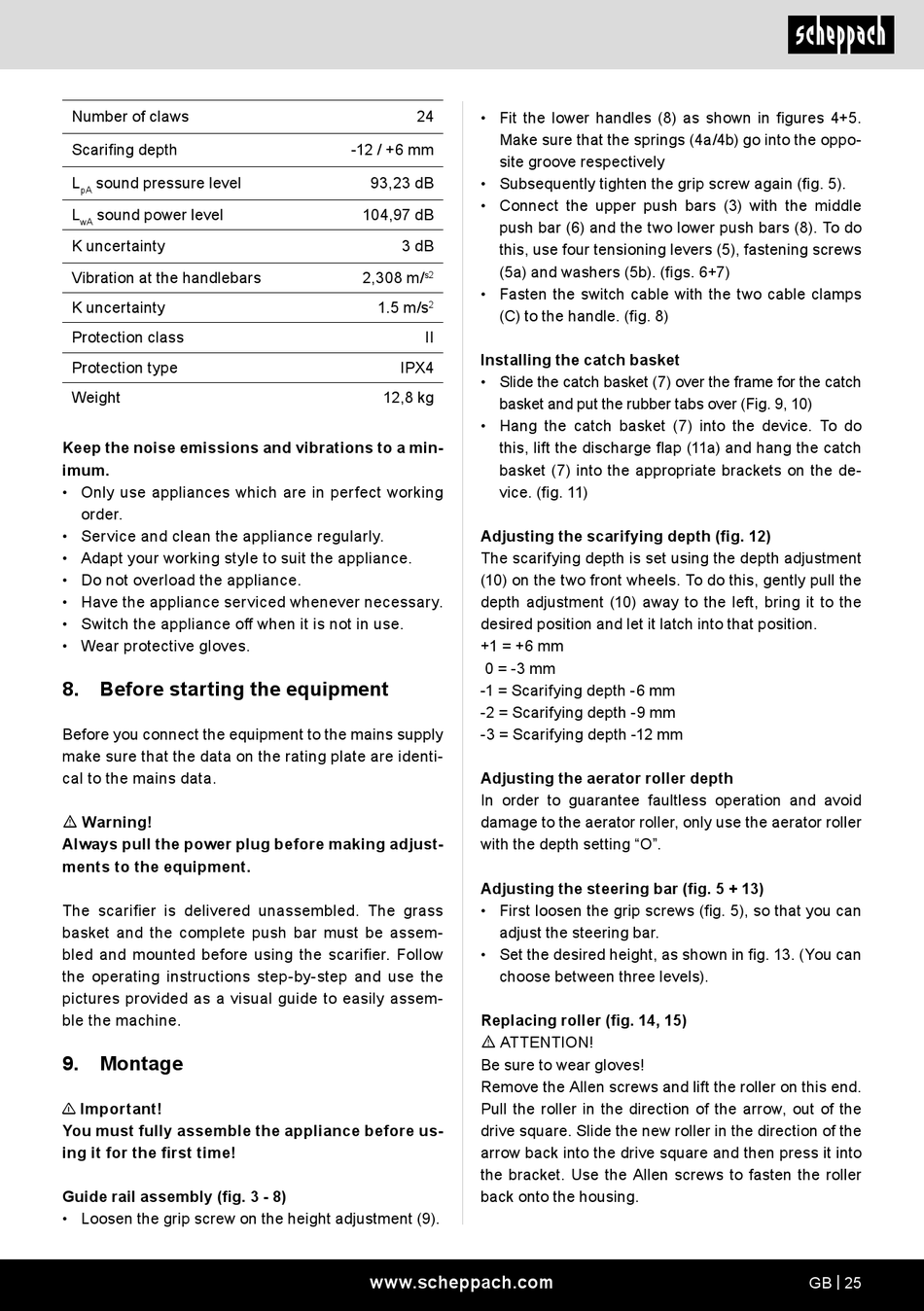

Scheppach SC38 Originalbetriebsanleitung Seite 25

Number of claws
Scarifing depth
L sound pressure level
pA
L sound power level
wA
K uncertainty
Vibration at the handlebars
K uncertainty
Protection class
Protection type
Weight
Keep the noise emissions and vibrations to a min-
imum.
• Only use appliances which are in perfect working
order.
• Service and clean the appliance regularly.
• Adapt your working style to suit the appliance.
• Do not overload the appliance.
• Have the appliance serviced whenever necessary.
• Switch the appliance off when it is not in use.
• Wear protective gloves.
8. Before starting the equipment
Before you connect the equipment to the mains supply
make sure that the data on the rating plate are identi-
cal to the mains data.
m Warning!
Always pull the power plug before making adjust-
ments to the equipment.
The scarifier is delivered unassembled. The grass
basket and the complete push bar must be assem-
bled and mounted before using the scarifier. Follow
the operating instructions step-by-step and use the
pictures provided as a visual guide to easily assem-
ble the machine.
9. Montage
n Important!
You must fully assemble the appliance before us-
ing it for the first time!
Guide rail assembly (fig. 3 - 8)
• Loosen the grip screw on the height adjustment (9).
24
• Fit the lower handles (8) as shown in figures 4+5.
Make sure that the springs (4a/4b) go into the oppo-
-12 / +6 mm
site groove respectively
93,23 dB
• Subsequently tighten the grip screw again (fig. 5).
• Connect the upper push bars (3) with the middle
104,97 dB
push bar (6) and the two lower push bars (8). To do
3 dB
this, use four tensioning levers (5), fastening screws
(5a) and washers (5b). (figs. 6+7)
2,308 m/
s2
• Fasten the switch cable with the two cable clamps
1.5 m/s
2
(C) to the handle. (fig. 8)
II
Installing the catch basket
IPX4
• Slide the catch basket (7) over the frame for the catch
12,8 kg
basket and put the rubber tabs over (Fig. 9, 10)
• Hang the catch basket (7) into the device. To do
this, lift the discharge flap (11a) and hang the catch
basket (7) into the appropriate brackets on the de-
vice. (fig. 11)
Adjusting the scarifying depth (fig. 12)
The scarifying depth is set using the depth adjustment
(10) on the two front wheels. To do this, gently pull the
depth adjustment (10) away to the left, bring it to the
desired position and let it latch into that position.
+1 = +6 mm
0 = -3 mm
-1 = Scarifying depth -6 mm
-2 = Scarifying depth -9 mm
-3 = Scarifying depth -12 mm
Adjusting the aerator roller depth
In order to guarantee faultless operation and avoid
damage to the aerator roller, only use the aerator roller
with the depth setting "O".
Adjusting the steering bar (fig. 5 + 13)
• First loosen the grip screws (fig. 5), so that you can
adjust the steering bar.
• Set the desired height, as shown in fig. 13. (You can
choose between three levels).
Replacing roller (fig. 14, 15)
m ATTENTION!
Be sure to wear gloves!
Remove the Allen screws and lift the roller on this end.
Pull the roller in the direction of the arrow, out of the
drive square. Slide the new roller in the direction of the
arrow back into the drive square and then press it into
the bracket. Use the Allen screws to fasten the roller
back onto the housing.
