Start-up
If the day/night mode is changed
by time control or remote control,
the position of the connected
switch may not match the current
mode. However, actuating the
switch always results in a change
to or continuation in the respec-
tive mode.

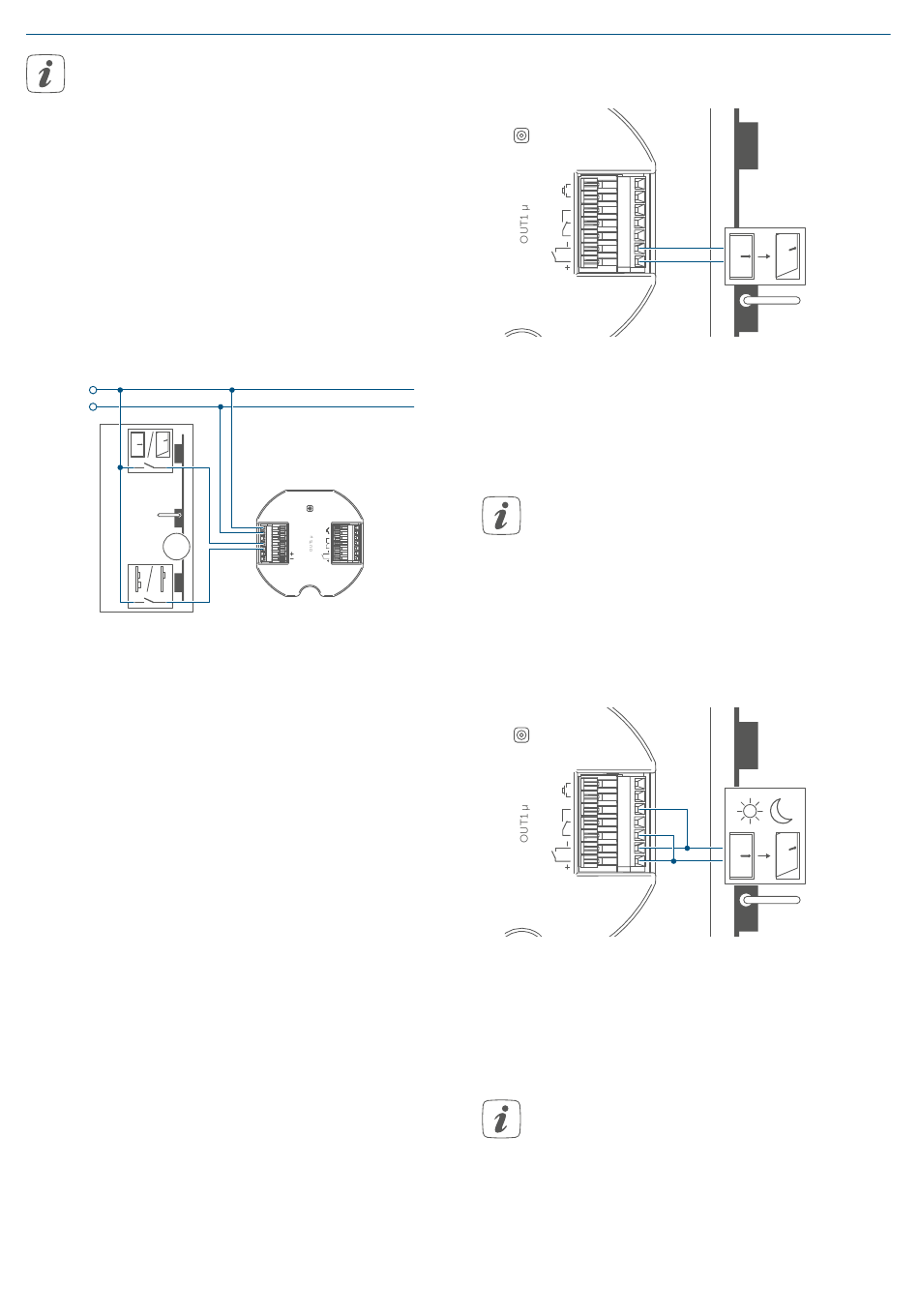

6.3.3 Door status detection
VCC
GND
M
Figure 5
The open/closed door status can be
detected with the IN1 input. Input IN2
detects the locked/unlocked status, if
installed. The corresponding signals for
this must be provided by the motorised
lock. Separate door/window contacts
can also be used and connected to the
HmIP-FLC.
VCC
IN4
GND
OUT
NO
IN1
NC
IN2
COM
IN3
OUT2
ε
6.3.4 Simple door opener
VCC
IN4
GND
OUT
NO
NC
IN2
COM
OUT2
IN3
ε
Figure 6
Connection of door openers with one
signal input. When connecting the bat-
tery, ensure the correct polarity.
e.g. compatible with Winkhaus
blueMatic EAV3 and simple door
openers
6.3.5 Common door opener and day/
night mode switching
VCC
IN4
GND
OUT
NO
NC
IN2
COM
OUT2
IN3
ε
Figure 7
Connection of door openers and locks
with separate inputs for door opening
and locking functions.
e.g. compatible with MACO M-TS,
Fuhr multitronic 881
20
