Function and device overview
4 Function and device
overview
The Homematic IP Universal Lock
Controller is a device for controlling a
motorised lock and is used in installa-
tions with permanently installed mo-
torised lock drives in (house) entrance
doors. To use the HmIP-FLC, the mo-
torised lock must have a manufactur-
er-specific control unit that monitors
all relevant technical parameters of the
motorised lock. The HmIP-FLC is con-
trolled via four inputs that can be used
for different purposes. The door status
(open/closed or locked/unlocked) can
be detected and switched between
day/night mode using a button or
switch. It is also possible to output an
opening pulse at the touch of a but-
ton. There are two switching outputs
for activating the motorised lock. The
changeover contact is used to switch
between day/night mode. The open
collector output sends the switching
pulse to the motorised lock.

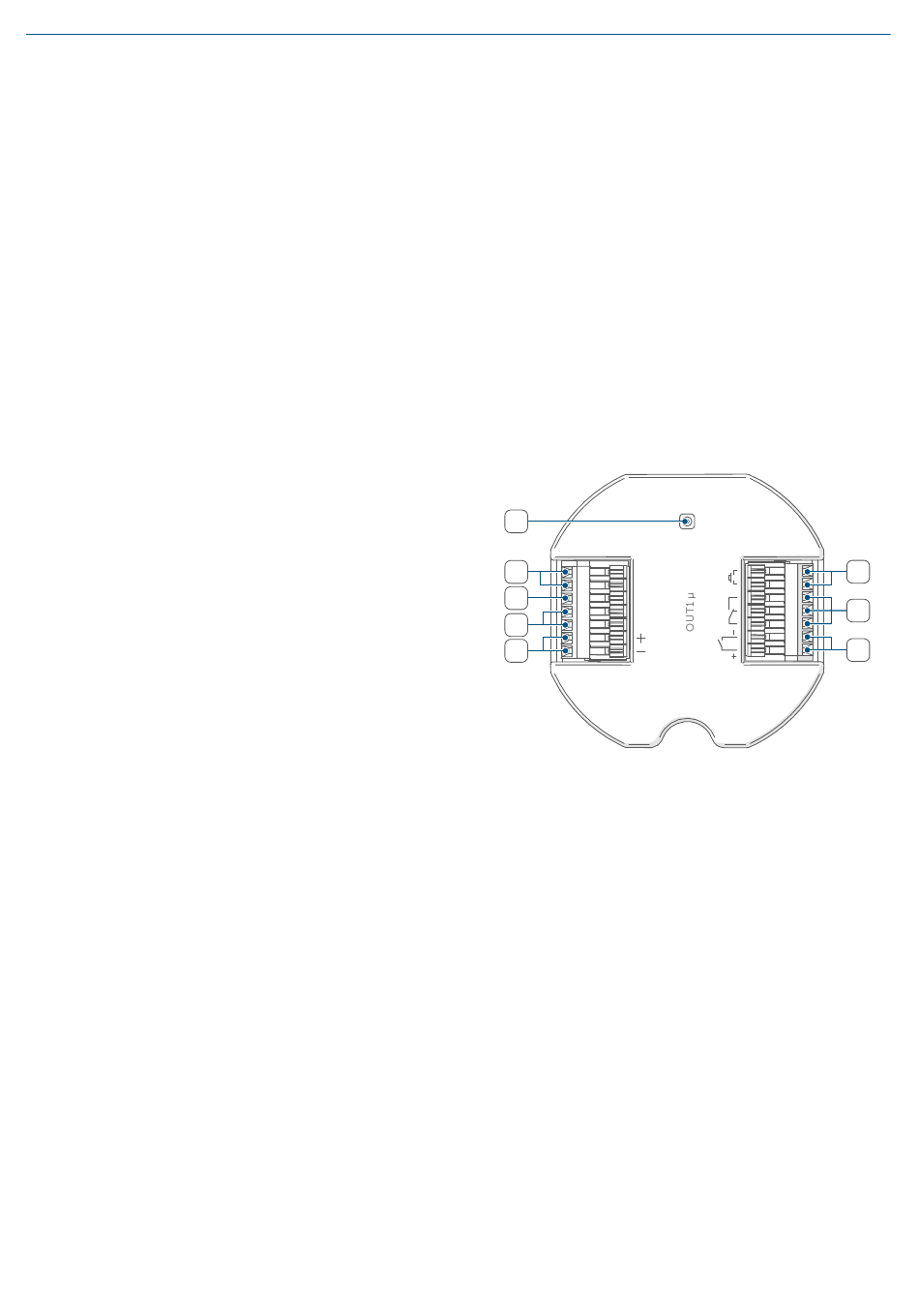

Device overview:
(A) System button (pairing button/LED)
(B) Power supply 12 – 24 V
(C) Output terminals 12 – 24 V
(D) Input terminals
of contact interface 12 – 24 V
(E) Input terminals
of door opener 6 – 24 V
(F) Input terminals
of day/night switch
(G) Output terminals
of changeover contact
(H) Output terminals of open collector
A
B
VCC
GND
C
OUT
IN1
D
IN2
E
IN3
Figure 1
5 General system information
This device is part of the Homematic IP
Smart Home system and commu-
nicates via the Homematic IP wire-
less protocol. All devices in the
Homematic IP system can be con-
figured easily and individually with a
smartphone using the Homematic IP
app. The functions provided by the
system in combination with oth-
er components are described in the
Homematic IP User Guide. All current
technical documents and updates can
be found at www.homematic-ip.com.
DC
DC
DC
AC/DC
F
IN4
NO
G
NC
COM
OUT2
H
ε
17
