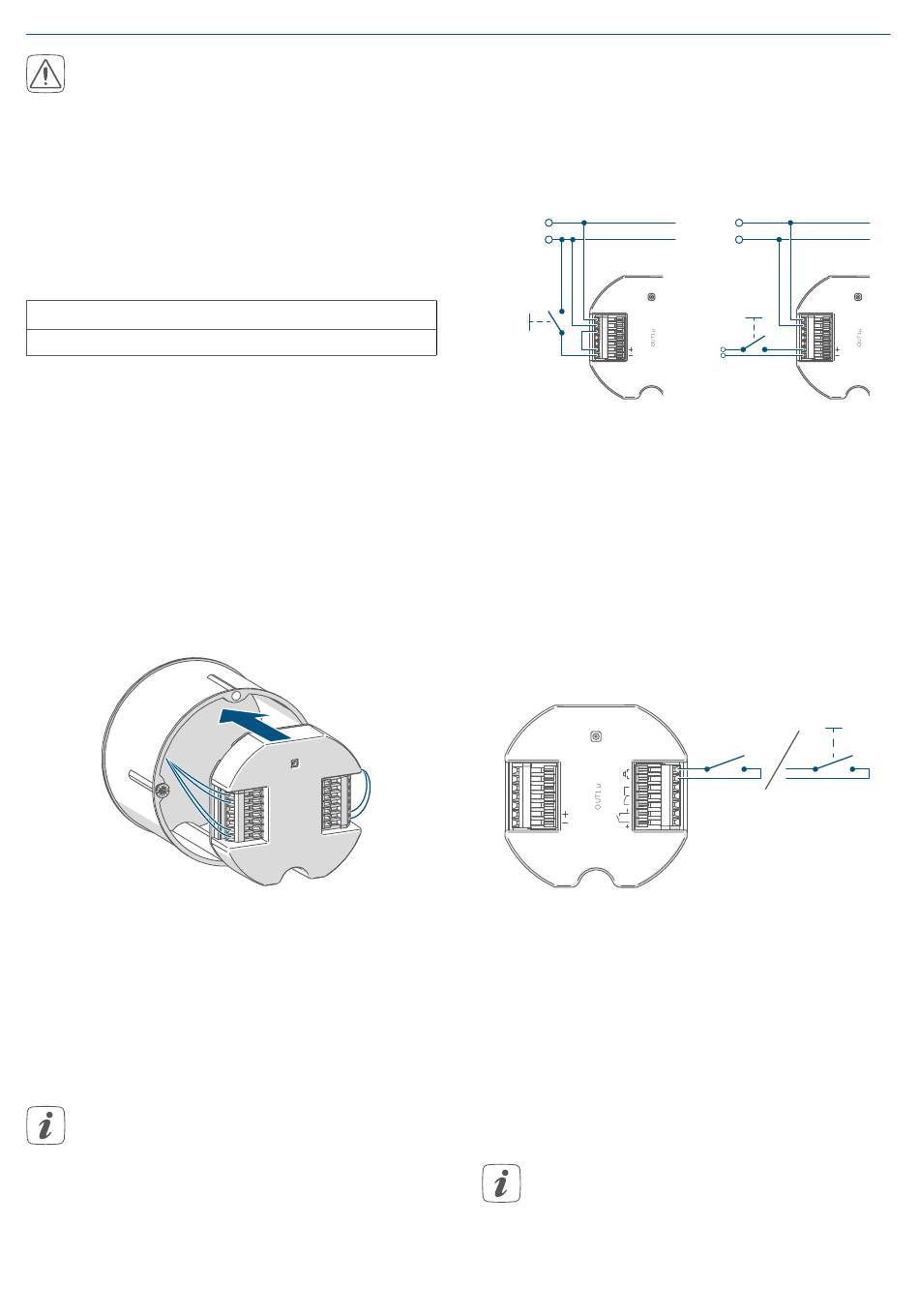

Start-up
It is absolutely essential to ensure
that all connecting cables are laid
so that they are physically sepa-
rate from cables carrying mains
voltage (e.g. in separate cable
ducts or wiring conduits).
Permitted cable cross sections for con-
necting to the device are:
Rigid cable and flexible cable [mm
0.08 – 0.5 mm
2
6.3
Installation
Proceed as follows to install the device
in a flush-mounted box:
• Switch off the power supply unit.
• Connect the device according to
the connecting diagram.
• Fix the controller to an appropriate
flush-mounted box.
Figure 2
• Supply the device with voltage via
the power supply unit provided to
activate the device's pairing mode.
Possible application examples are
shown below
Please refer to the operating in-
structions for your motorised lock
for wiring instructions
6.3.1 Door opening via button
A Floating button
B Button with external voltage
A
VCC
GND
]
2
Figure 3
Input IN3 is normally used for the door
opening function. Alternatively, other
access control systems with pulse out-
puts can also be used (code lock, RFID
reader, wireless receiver).
6.3.2 Day/night switching via button/
switch
Figure 4
Day/night mode switching can also be
triggered by a button or switch. The
mode is changed automatically when
a button is used (toggle function). A
switch that specifies the mode by the
corresponding position is normally
used.
This differs from the standard
configuration and must be set
separately in the Homematic IP
app.
B
VCC
GND
VCC
IN4
GND
OUT
NO
6-24 V
IN1
NC
AC/DC
IN2
COM
SELV
IN3
OUT2
ε
VCC
IN4
GND
OUT
NO
IN1
NC
IN2
COM
IN3
OUT2
ε
VCC
IN4
GND
OUT
NO
IN1
NC
IN2
COM
IN3
OUT2
ε
19
