Powercablemust not be longerthan2 m
i
becauseof safetyreasons.

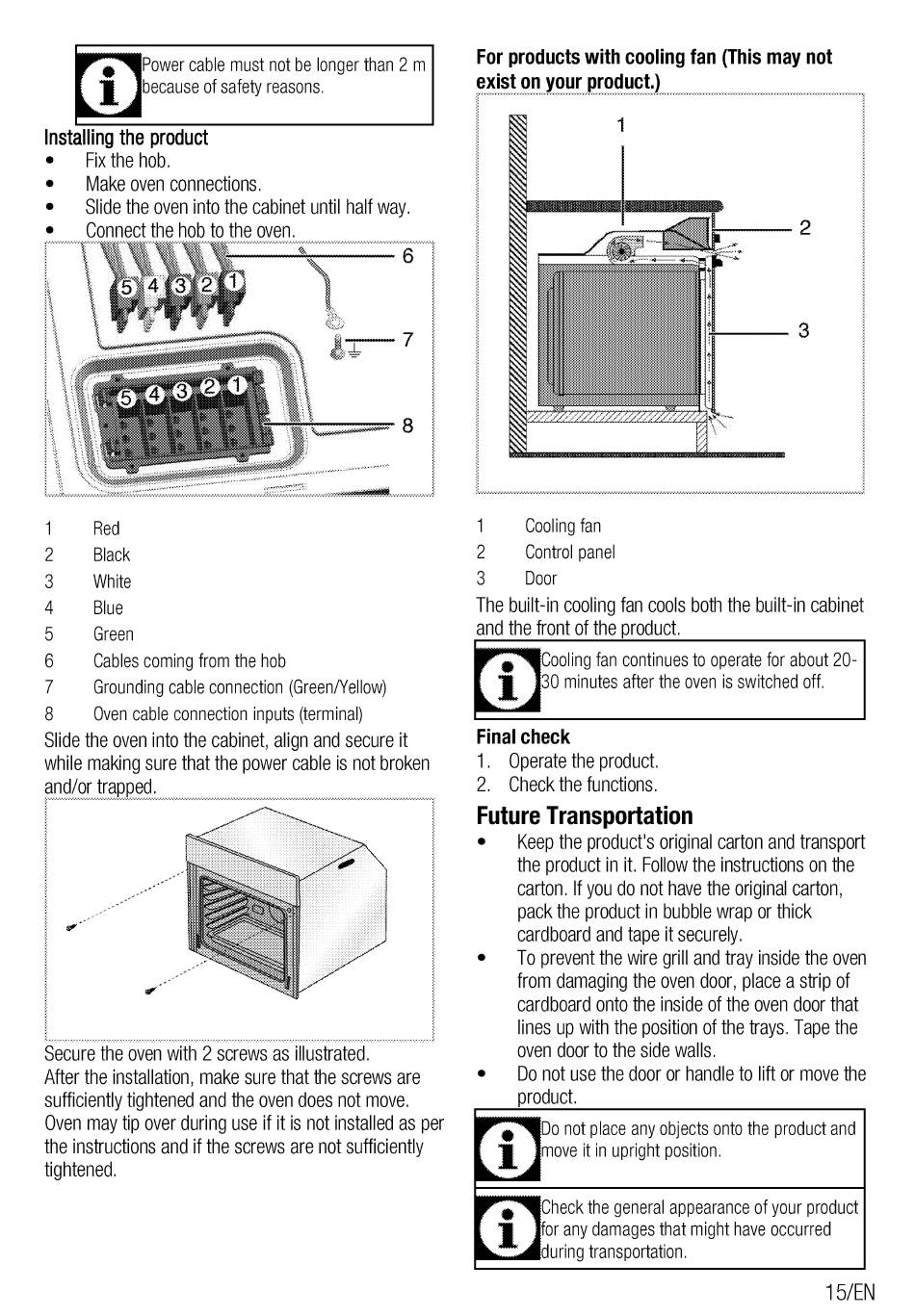

Installing the product
Fix the hob.
Make oven connections.
Slide the oven into the cabinet until half way.
•
Connect the hob to the oven.
54321
Red
2
Black
3
Whlte
4
Blue
Green
5
6
Cablescomingfrom the hob
Grounding cableconnection(Green/Yellow)
7
8
Ovencableconnectioninputs(terminal)
Slide the oven into the cabinet, align and secure it
while making sure that the power cable is not broken
and/or trapped.
Secure the oven with 2 screws as illustrated.
After the installation, make sure that the screws are
sufficiently tightened and the ovendoes not move.
Ovenmaytip overduringuseif it is notinstalled as per
the instructionsand if the screws are not sufficiently
tightened.
For products with cooling fan (This may not
exist on your product.
6
7
8
Coolingfan
2
Controlpanel
3
Door
The built-incoolingfancoolsboththe built-incabinet
and the front of the
Coolingfan continuesto operatefor about20-
i
30 minutes after the oven is switched off.
Final check
1.
Operatethe product.
2.
Check the functions.
Future Transportation
Keepthe product's original carton and transport
the product in it. Followthe instructionson the
carton.If youdo nothavethe original c arton,
pack the product in bubble wrap or thick
cardboard and tape it securely.
To prevent t he wire grill andtrayinsidetheoven
from damaging theovendoor,placea strip of
cardboard
lines up with the position of the trays, Tape the
oven door to the side walls.
Do not use the door or handle to lift or move the
product.
Donot placeany objectsontothe productand
i
moveit in uprightposition.
Checkthe generalappearance of your product
i
or any damagesthat mighthaveoccurred
uring transportation.
1
roduct.
onto the inside of the oven door that
2
3
