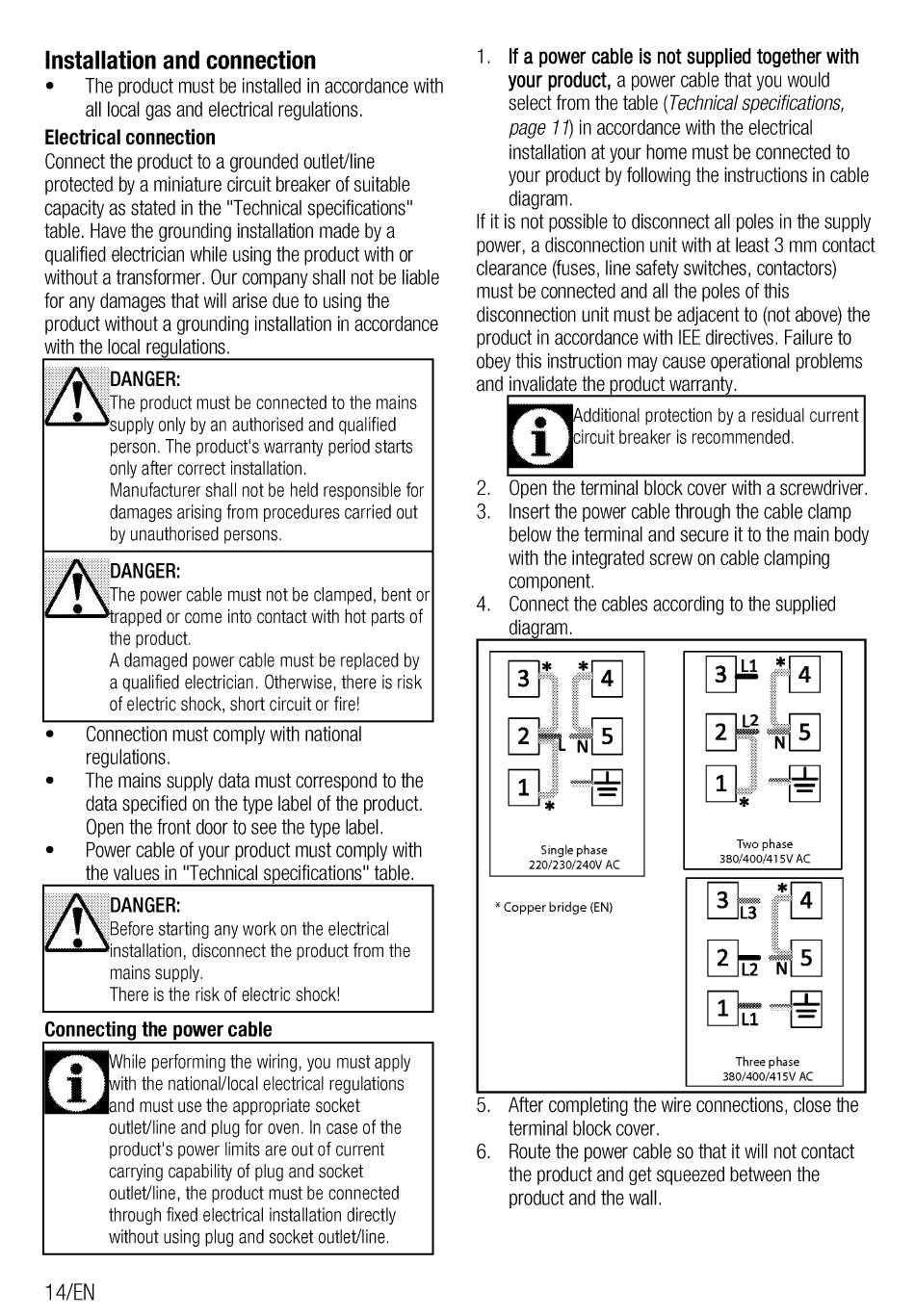

Installation
and connection
•
Theproductmustbe installedin accordance with
all localgasandelectrical r egulations.
Electrical
connection
Connect t heproductto a groundedoutlet/line
protectedbya miniaturecircuitbreakerof suitable
capacity as stated in the "Technical specifications"
table. Havethe grounding installation made by a
qualifiedelectrician whileusingtheproductwithor
without a transformer. Our companyshall not be liable
for any damagesthat will arise due to using the
product without a grounding installation in accordance
with the local r
ulations.
DANGER:
The productmustbe connectedto the mains
upplyonlybyan authorised and qualified
person. The product's warranty period starts
onlyafter correctinstallation.
Manufacturer shall not be held responsible for
damagesarisingfrom procedures carriedout
by unauthorised persons.
DANGER:
The powercablemust not be clamped,bentor
rappedor comeinto contactwith hot parts of
the product.
A damagedpowercablemust be replacedby
a qualifiedelectrician.Otherwise, t hereis risk
of electric shock, short circuit or fire!
Connection mustcomplywith national
regulations.
The mains supply data must correspondto the
data specified on the type label of the product.
Openthefront doorto seethetypelabel.
Powercable of your product must comply with
the values in "Technical specifications" table.
DANGER:
Beforestartingany work on the electrical
installation, disconnect the product from the
mainssupply.
There is the risk of electric shock!
Connecting the power cable
hile performingthe wiring,you mustapply
i
ith the national/local e lectricalreguations
nd must use the appropriate socket
outlet/lineand plugfor oven.In caseof the
product'spower limitsareout of current
carryingcapabilityof plug andsocket
outlet/line,the productmust be connected
throughfixed electricalinstallationdirectly
withoutusingplug andsocketoutlet/line.
1 4/EN
If a power cable is not suppliedtogether with
your product,a powercablethatyouwould
selectfrom thetable(Technical specifications,
page 11) in accordancewith the electrical
installation at your home must be connected to
your product by following the instructionsin cable
diagram.
If it is not possibleto disconnect all poles in the supply
power, a disconnectionunit with at least 3 mm contact
clearance (fuses,line safetyswitches, c ontactors)
must be connected and all the poles of this
disconnectionunit must be adjacent to (not above)the
product in accordancewith IEEdirectives. Failureto
obeythis instruction may cause operational problems
and invalidate the
roduct warran
dditionalprotectionbya residualcurrent
i
Ircuit breaker is recommended.
2.
Openthe terminal block cover with a screwdriver.
3. Insertthe powercablethroughthe cableclamp
below the terminal and secure it to the main body
with the integrated screw on cable clamping
component.
4.
Connect t he cablesaccording to thesupplied
dia ram.
3
4
2
5
1
Single phase
220/230/240V
AC
Copper bridge (EN)
After completing the wireconnections, c losethe
5.
terminal
block cover.
6.
Routethe power cable so that it will not contact
the product and get squeezedbetween the
productandthe wall.
Ll
*
3
4
1
Two phase
380/400/41
SV AC
3
4
L3
Threephase
380/400/4151/
AC
