• LCD DISPLAY – APT 500S

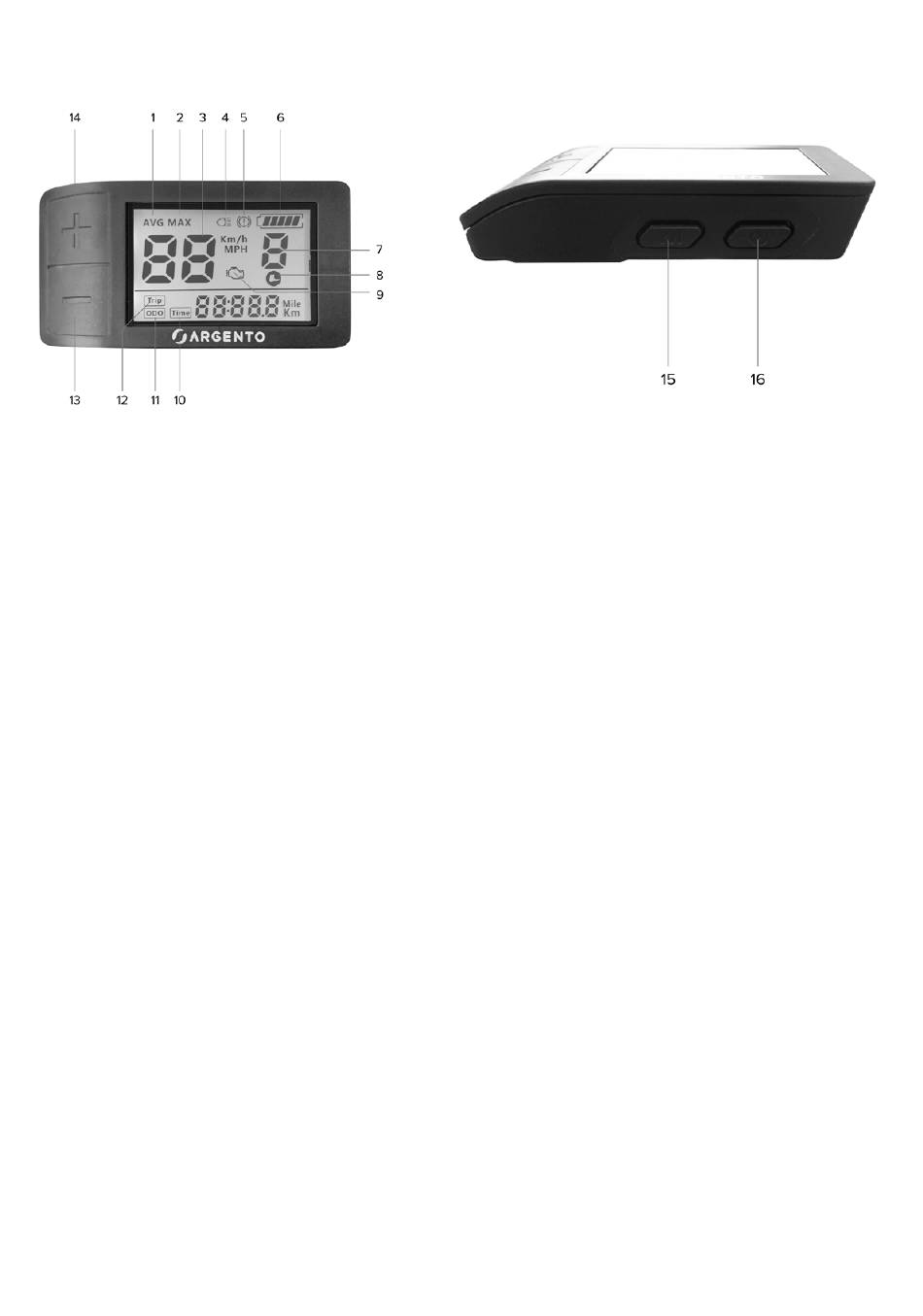

Overview of controls and symbols
1. AVG: display of average speed data recorded during last use (Km/h or MPH)
2. MAX: display of maximum speed data recorded during the last use (Km/h or MPH)
3. Digital speedometer: indicator light for speed detected during use (Km/H or MPH)
4. Indicator light for lights ON
5. Indicator light for instant motor deactivation by brake lever operation with cut-off sensor supplied (if included)
6. Indicator light for residual battery charge
7. Indicator light for the Pedal Assist level selected (numerical value) or indicator light for the activation of the Walk Assist
mode (P)
8. Indicator light for walk assist mode ON corresponding to a value of 1 or above
9. Malfunction warning light
10. Time: display of overall usage time (Hours:Minutes)
11. ODO: display of total distance travelled (Km or Miles)
12. TRIP: display of partial distance travelled (Km or Miles)
13. Button to vary and/or decrease value (-)
14. Button to vary and/or increase value (+)
15. M: mode button (MODE)
16. ON/OFF button
Function description
Display on/off
Press the ON/OFF button for at least 1 second to switch the display on or off.
Selecting the assisted pedalling level
Press + or - button to increase or decrease the level of selected assisted pedalling.
The display is pre-configured to offer the user 5 different assisted pedalling levels (variable values from 1 to 5).
Assistance level 1 provides minimum electrical assistance from the motor.
Assistance level 5 provides maximum electrical support from the motor.
If you select level 0, you exclude electrical assistance from the motor.
When configuring the display, you can modify the parameter for the interval of assisted pedalling that can be selected: 0-3,
0-5 and 0-9.
These options do not change the minimum and maximum value of electrical assistance provided by the motor, but only allow
a different distribution of the pedalling assistance levels between the minimum and maximum value as described in the table
below:
