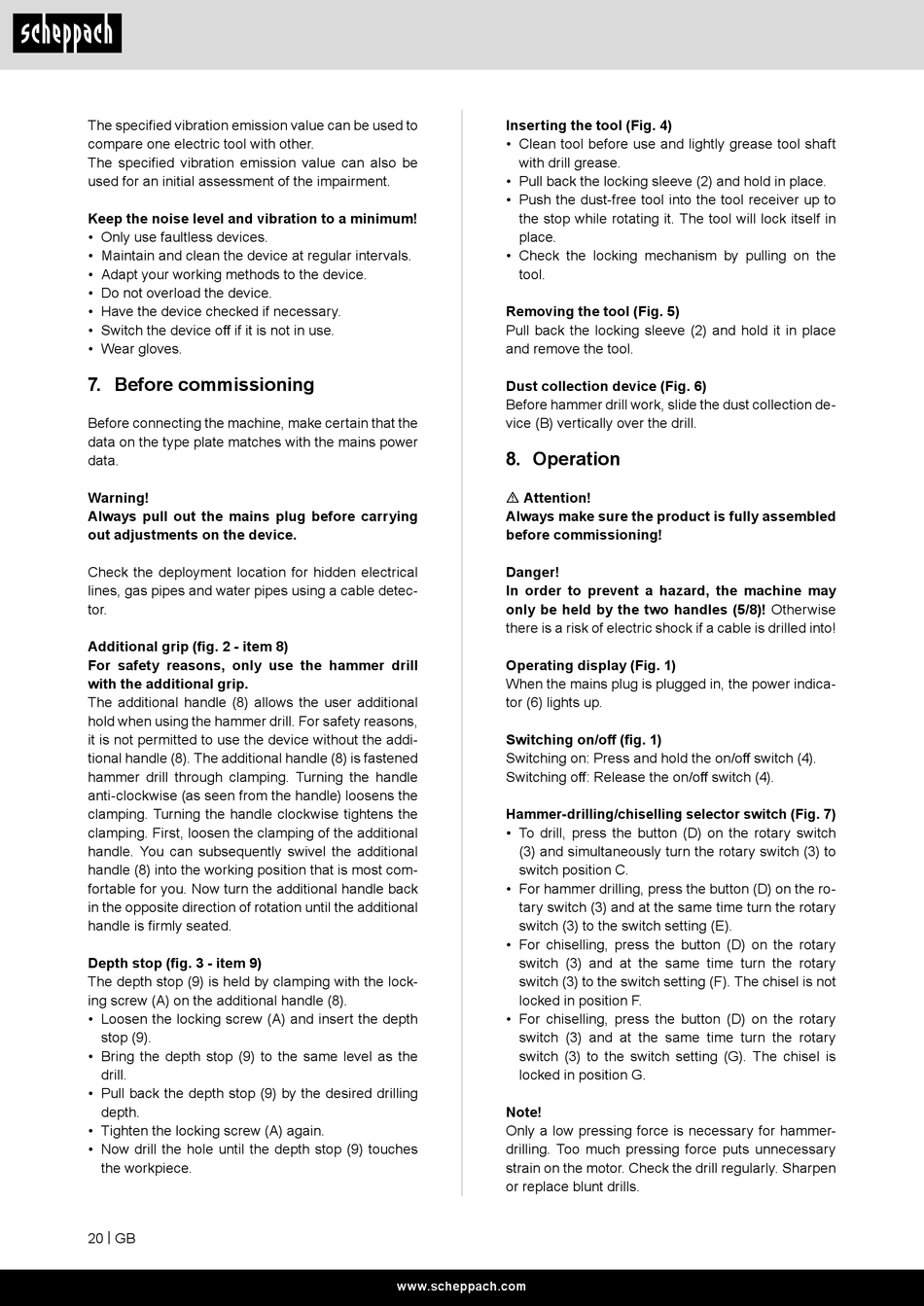

The specified vibration emission value can be used to
compare one electric tool with other.
The specified vibration emission value can also be
used for an initial assessment of the impairment.
Keep the noise level and vibration to a minimum!
• Only use faultless devices.
• Maintain and clean the device at regular intervals.
• Adapt your working methods to the device.
• Do not overload the device.
• Have the device checked if necessary.
• Switch the device off if it is not in use.
• Wear gloves.
7. Before commissioning
Before connecting the machine, make certain that the
data on the type plate matches with the mains power
data.
Warning!
Always pull out the mains plug before carrying
out adjustments on the device.
Check the deployment location for hidden electrical
lines, gas pipes and water pipes using a cable detec-
tor.
Additional grip (fig. 2 - item 8)
For safety reasons, only use the hammer drill
with the additional grip.
The additional handle (8) allows the user additional
hold when using the hammer drill. For safety reasons,
it is not permitted to use the device without the addi-
tional handle (8). The additional handle (8) is fastened
hammer drill through clamping. Turning the handle
anti-clockwise (as seen from the handle) loosens the
clamping. Turning the handle clockwise tightens the
clamping. First, loosen the clamping of the additional
handle. You can subsequently swivel the additional
handle (8) into the working position that is most com-
fortable for you. Now turn the additional handle back
in the opposite direction of rotation until the additional
handle is firmly seated.
Depth stop (fig. 3 - item 9)
The depth stop (9) is held by clamping with the lock-
ing screw (A) on the additional handle (8).
• Loosen the locking screw (A) and insert the depth
stop (9).
• Bring the depth stop (9) to the same level as the
drill.
• Pull back the depth stop (9) by the desired drilling
depth.
• Tighten the locking screw (A) again.
• Now drill the hole until the depth stop (9) touches
the workpiece.
20 | GB
Inserting the tool (Fig. 4)
• Clean tool before use and lightly grease tool shaft
with drill grease.
• Pull back the locking sleeve (2) and hold in place.
• Push the dust-free tool into the tool receiver up to
the stop while rotating it. The tool will lock itself in
place.
• Check the locking mechanism by pulling on the
tool.
Removing the tool (Fig. 5)
Pull back the locking sleeve (2) and hold it in place
and remove the tool.
Dust collection device (Fig. 6)
Before hammer drill work, slide the dust collection de-
vice (B) vertically over the drill.
8. Operation
m Attention!
Always make sure the product is fully assembled
before commissioning!
Danger!
In order to prevent a hazard, the machine may
only be held by the two handles (5/8)! Otherwise
there is a risk of electric shock if a cable is drilled into!
Operating display (Fig. 1)
When the mains plug is plugged in, the power indica-
tor (6) lights up.
Switching on/off (fig. 1)
Switching on: Press and hold the on/off switch (4).
Switching off: Release the on/off switch (4).
Hammer-drilling/chiselling selector switch (Fig. 7)
• To drill, press the button (D) on the rotary switch
(3) and simultaneously turn the rotary switch (3) to
switch position C.
• For hammer drilling, press the button (D) on the ro-
tary switch (3) and at the same time turn the rotary
switch (3) to the switch setting (E).
• For chiselling, press the button (D) on the rotary
switch (3) and at the same time turn the rotary
switch (3) to the switch setting (F). The chisel is not
locked in position F.
• For chiselling, press the button (D) on the rotary
switch (3) and at the same time turn the rotary
switch (3) to the switch setting (G). The chisel is
locked in position G.
Note!
Only a low pressing force is necessary for hammer-
drilling. Too much pressing force puts unnecessary
strain on the motor. Check the drill regularly. Sharpen
or replace blunt drills.
