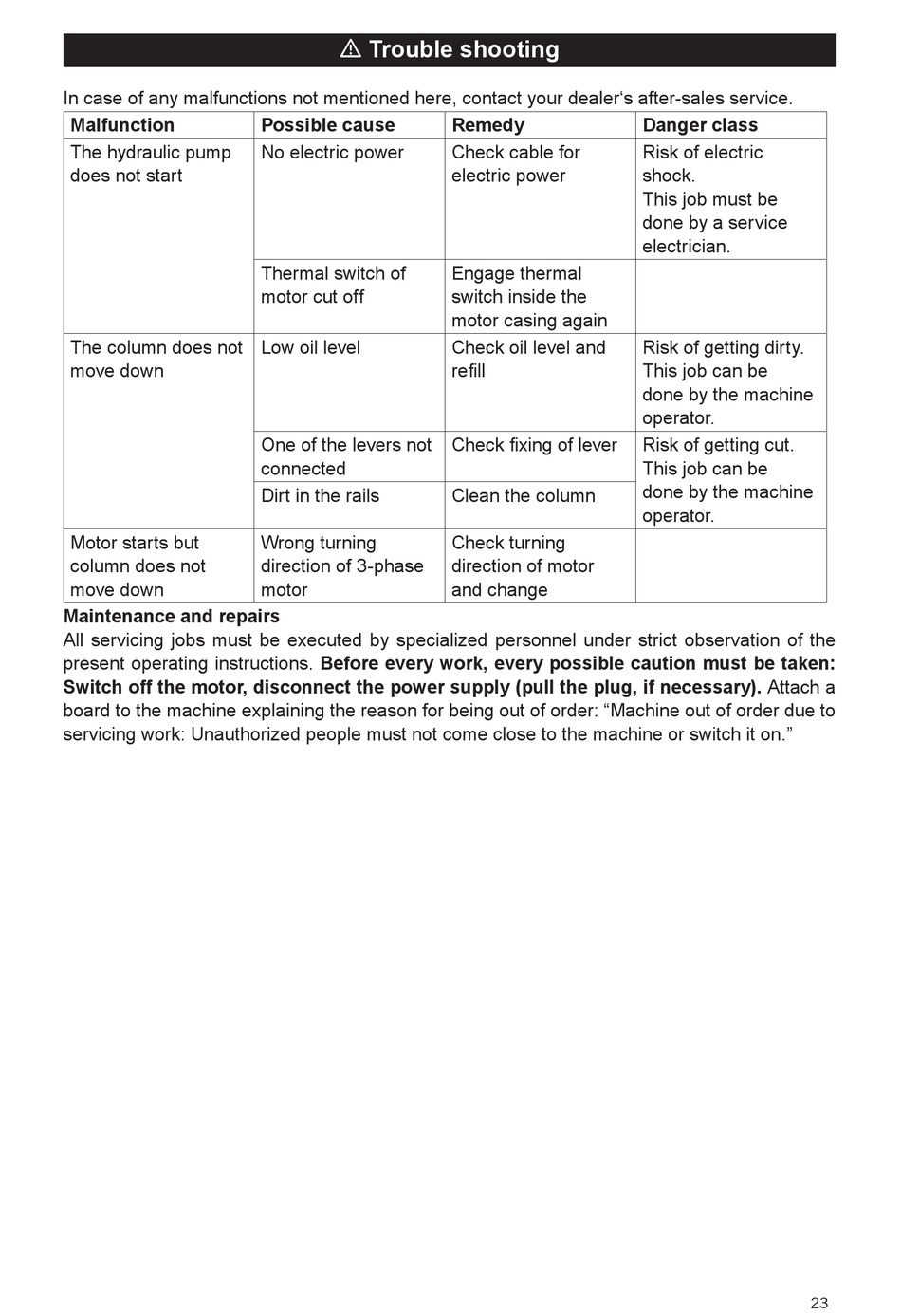

Scheppach HL710 Originalbetriebsanweisung Seite 23

In case of any malfunctions not mentioned here, contact your dealer's after-sales service.
Malfunction
The hydraulic pump
does not start
The column does not
move down
Motor starts but
column does not
move down
Maintenance and repairs
All servicing jobs must be executed by specialized personnel under strict observation of the
present operating instructions. Before every work, every possible caution must be taken:
Switch off the motor, disconnect the power supply (pull the plug, if necessary). Attach a
board to the machine explaining the reason for being out of order: "Machine out of order due to
servicing work: Unauthorized people must not come close to the machine or switch it on."
m Trouble shooting
Possible cause
No electric power
Thermal switch of
motor cut off
Low oil level
One of the levers not
connected
Dirt in the rails
Wrong turning
direction of 3-phase
motor
Remedy
Check cable for
electric power
Engage thermal
switch inside the
motor casing again
Check oil level and
refill
Check fixing of lever
Clean the column
Check turning
direction of motor
and change
Danger class
Risk of electric
shock.
This job must be
done by a service
electrician.
Risk of getting dirty.
This job can be
done by the machine
operator.
Risk of getting cut.
This job can be
done by the machine
operator.
