Scheppach HL710 Originalbetriebsanweisung Seite 16

Log length
cm
Power max.
tons
Piston stroke
cm
Forward
speed cm/s
Return speed
cm/s
Oil quantity
litres
Drive
Motor V/Hz
Input P1 W
Output P2 W
Operating
mode
Motor speed
1/min
Weight kg
* The maximum achievable splitting power
depends on the resistance of the material
to be split and can, due to influencing vari-
able, deflect to the hydraulic system.
Technical changes subject to change!

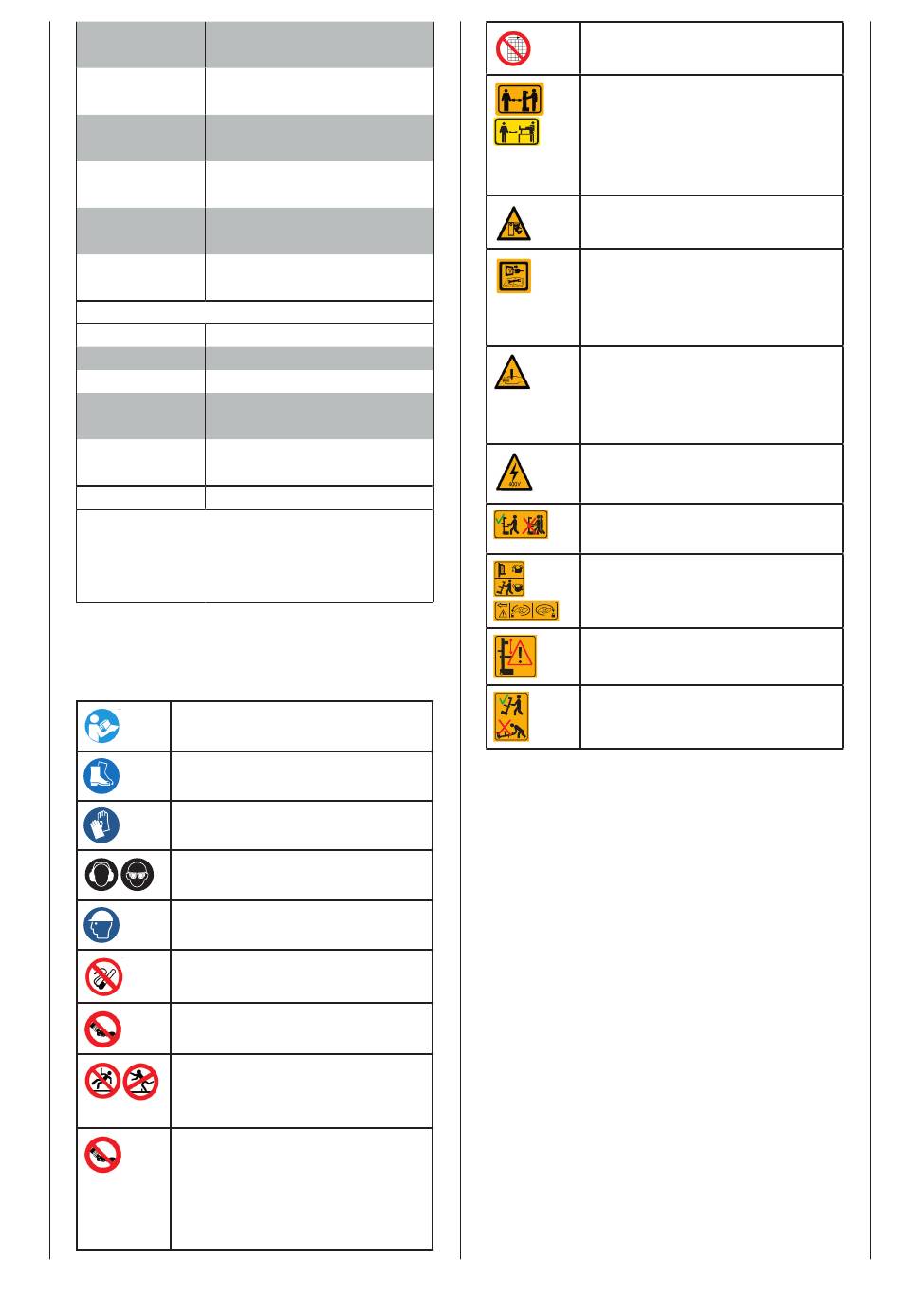

Warning symbols / Instruction
Please read the manual be-
fore start-up
Wear safety footwear
Wear work gloves
Use hearing protection and
safety goggles
Wear a hardhat
No smoking in the working
area
Do not spill hydraulic oil on
the floor
Keep your workspace clean!
Untidiness can cause acci-
dents!
Dispose of waste oil correctly
(waste oil collection point on
site). Do not dump waste oil
in the ground or mix it with
waste.
16
55 / 80 / 103
7,0
49,5
4,1
22,0
4
230/50
2700
2000
S6 40%
2800
94,5
Do not remove or modify pro-
tection and safety devices.
Only the operator is allowed in
the work area of the machine.
Keep other people and ani-
mals (minimum distance 5 m)
at a distance.
Do not remove jammed trunks
with your hands.
Caution! Switch off the engine
before repair, maintenance
and cleaning. Unplug the
mains plug.
Danger of bruising and inju-
ry from sharp edges; never
touch danger areas when the
cleaver is moving.
High-voltage, danger to life!
The machine must only be
operated by one person!
Loosen the vent bolt two revo-
2x
Oil
lutions, before starting work.
Oil
Close before transport.
1. 2x 2.
Caution! Moving machine
parts!
Do not transport the device in
the horizontal position!
