DM600MAX

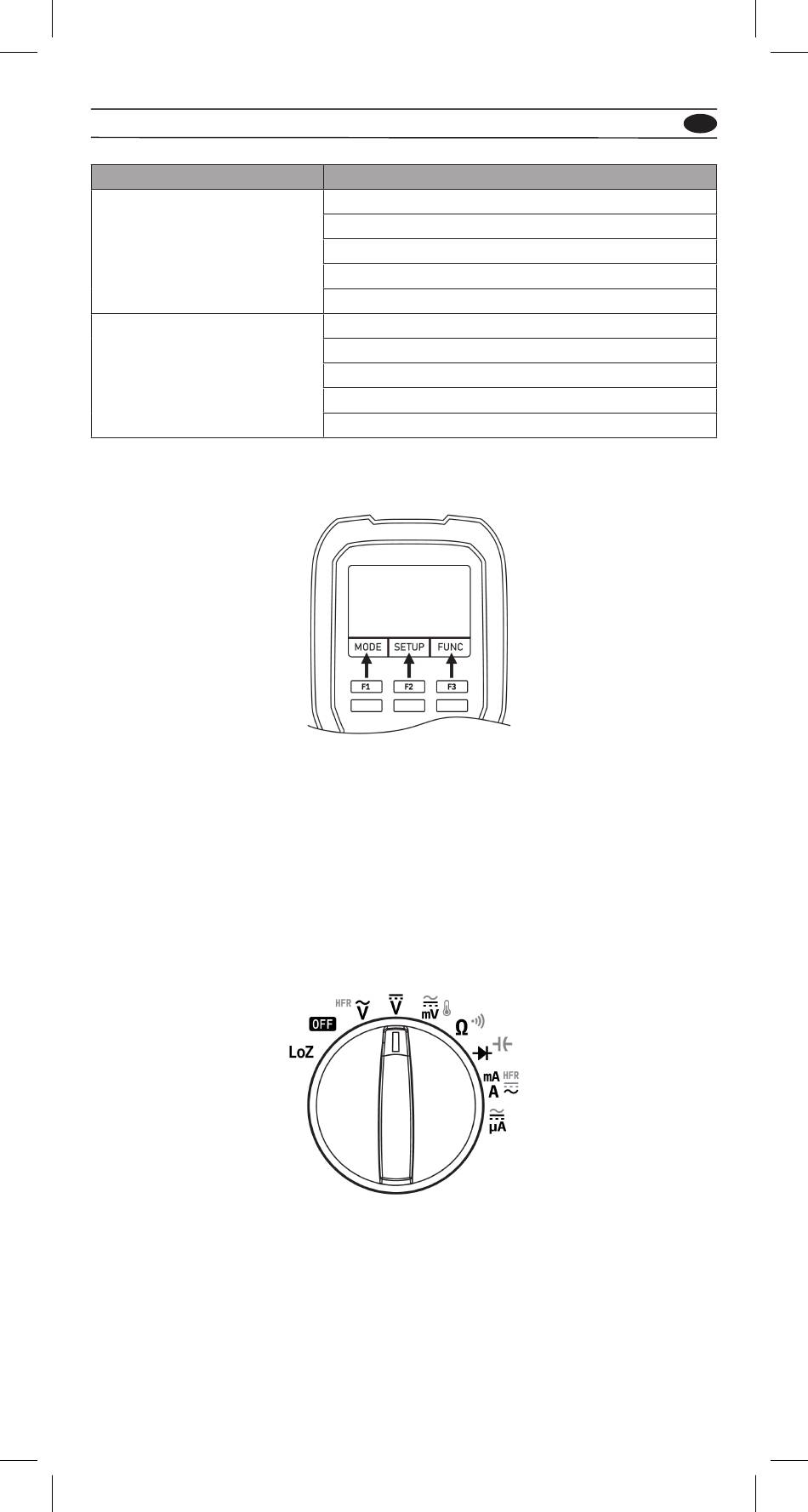

Rotary Switch Position
Ampere/mini Ampere
(Auto-detection)
Micro Ampere
MENU BAR
MENU Bar is used to switch the measurement mode and activate functions. Press F1,
F2, and F3 to execute the corresponding function or enter the sub-level of MENU Bar.
Pressing BACK button can switch the MENU Bar back to the top level.
1. Mode
The multifunction on the rotary switch can be toggled by pressing the MODE button.
In DCV mode, pressing the MODE button allows measurement of the Duty cycle and
Pulse Width.
2. SETUP
After entering SETUP mode, use the up and down keys to select the item you want to
modify. Press ENTER to enter the item and use the up and down keys to adjust the
settings. After making the changes, press ENTER to save. Pressing the BACK button
will exit without saving the modified settings.
Resolution
ACA/ACmA
DCA/DCmA
HFR(Low Pass Filter)
Frequency
Frequency with HFR
ACµA
DCµA
HFR(Low Pass Filter)
Frequency
Frequency with HFR
