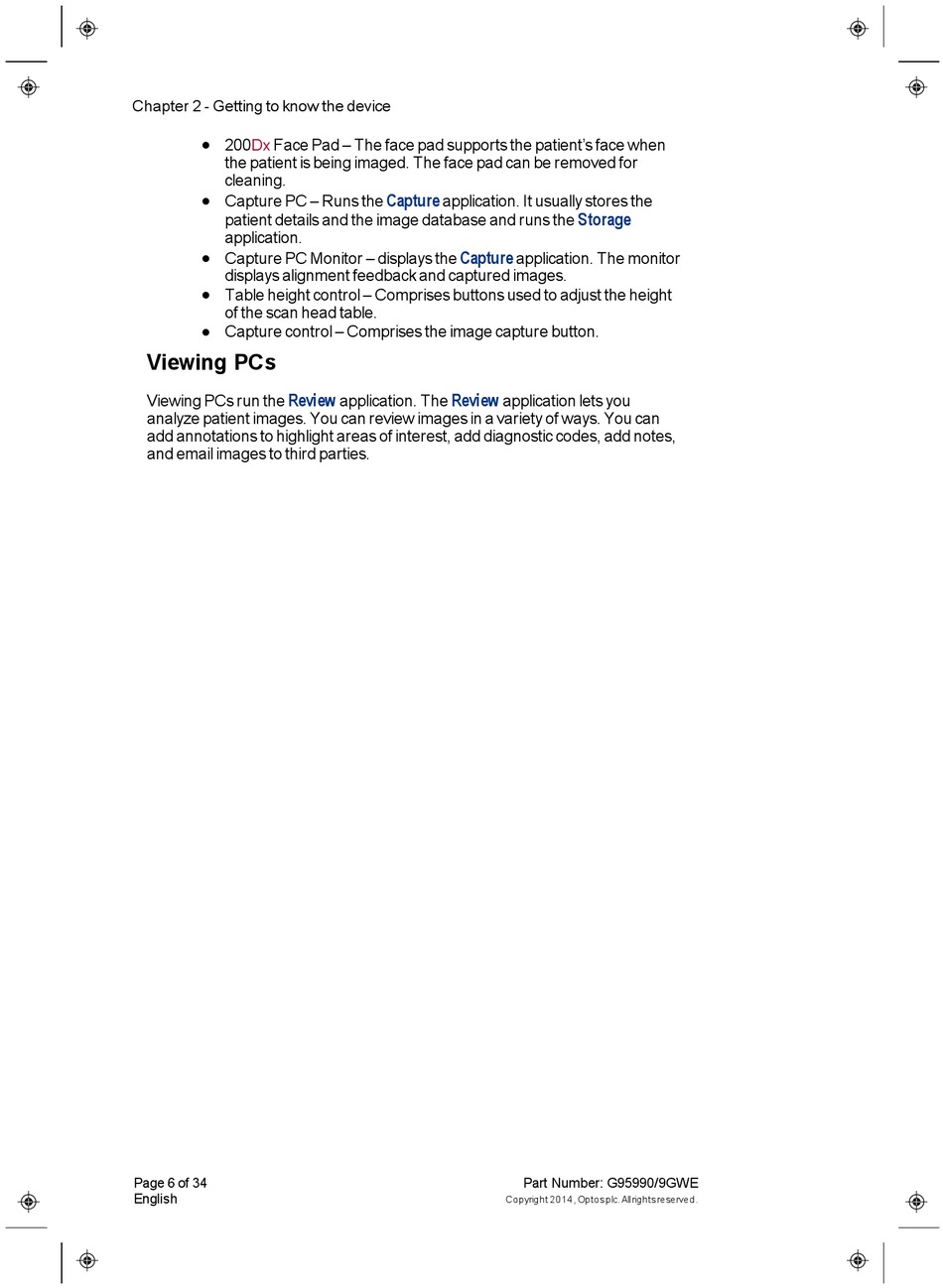

Chapter 2 - Getting to know the device
200 Dx Face Pad – The face pad supports the patient's face when
l
the patient is being imaged. The face pad can be removed for
cleaning.
Capture PC – Runs the
l
patient details and the image database and runs the
application.
Capture PC Monitor – displays the
l
displays alignment feedback and captured images.
Table height control – Comprises buttons used to adjust the height
l
of the scan head table.
Capture control – Comprises the image capture button.
l
Viewing PCs
Review
Viewing PCs run the
analyze patient images. You can review images in a variety of ways. You can
add annotations to highlight areas of interest, add diagnostic codes, add notes,
and email images to third parties.
Page 6 of 34
English
Capture
application. It usually stores the
Capture
application. The monitor
Review
application. The application lets you
Copyright 2014, Optos plc. Allrights reserved.
Storage
Part Number: G95990/9GWE
