Chapter 1 - Introduction
Troubleshooting on page 27 – explains what to do if problems occur.

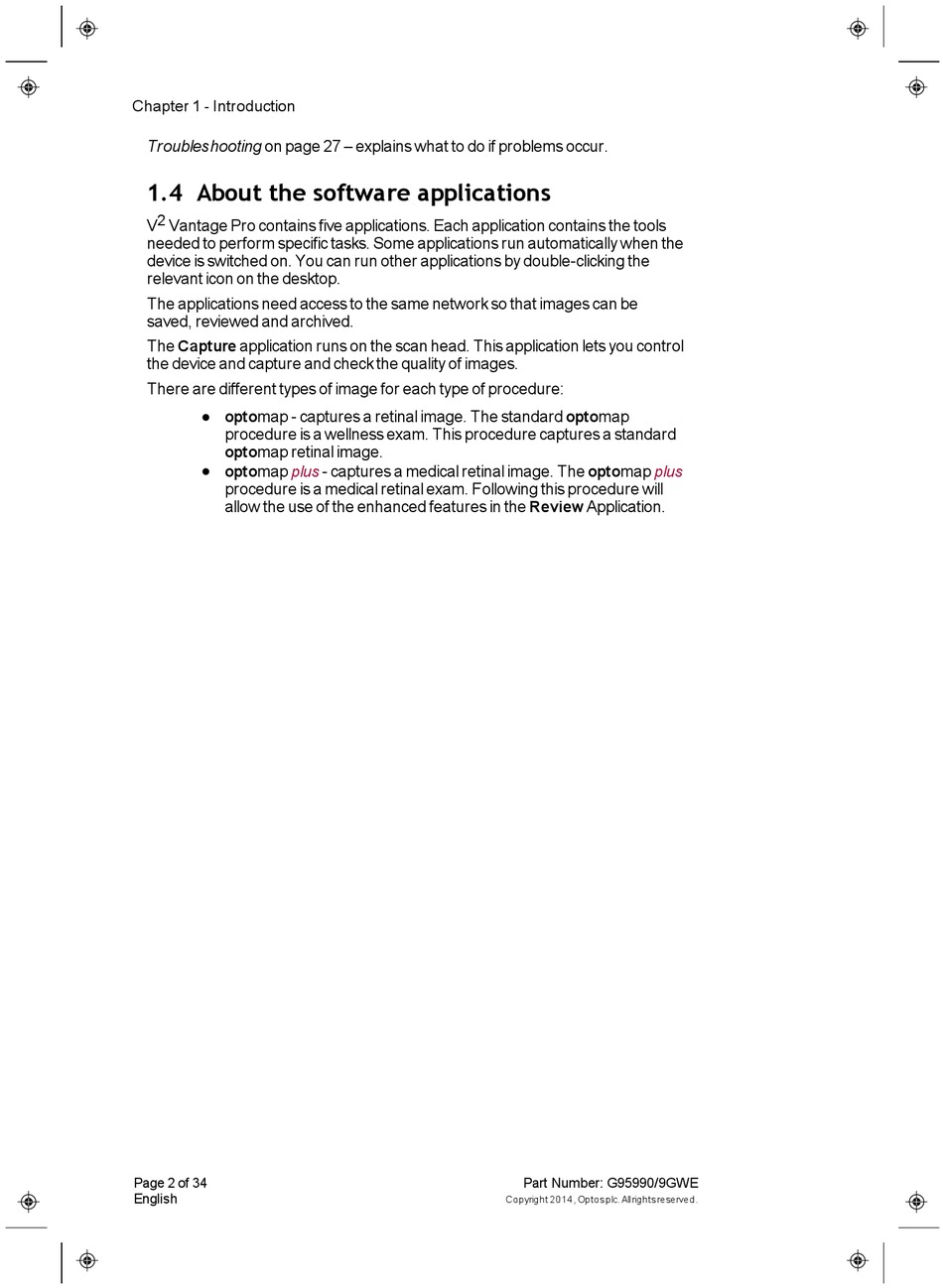

1.4 About the software applications
2
V
Vantage Pro contains five applications. Each application contains the tools
needed to perform specific tasks. Some applications run automatically when the
device is switched on. You can run other applications by double-clicking the
relevant icon on the desktop.
The applications need access to the same network so that images can be
saved, reviewed and archived.
The Capture application runs on the scan head. This application lets you control
the device and capture and check the quality of images.
There are different types of image for each type of procedure:
opto map - captures a retinal image. The standard opto map
l
procedure is a wellness exam. This procedure captures a standard
opto map retinal image.
opto map
plus
l
procedure is a medical retinal exam. Following this procedure will
allow the use of the enhanced features in the Review Application.
Page 2 of 34
English
- captures a medical retinal image. The opto map
plus
