Before using this equipment, record the product identification information from the ID label in the 'Inspection and
Maintenance Log' at the back of this manual.
System Specifications:
Anchorage: The anchorage structure for the SRD must be capable of supporting loads up to 2,698 lbf (12 kN).
Service Temperature: -40°F to 140°F (-40°C to 60°C)
Standards: Each product model is certified to, or conforms with, the applicable standards and regulations listed
within Figure 1.
Component Specifications:
Figure 2
Component
Reference
A Lifeline
B Housing
C Bottom Connector
D Top Connector
E Swivel Eye
F Energy Absorber
--- Drum
;
Internal Components: Internal SRD components are made from a combination of Stainless Steel, Steel, and Aluminum.
Connector Specifications:
Figure 1
Model Number
Reference
C1 2000193
C2 2000161
;
Tensile Strength: The tensile strength of each of the connectors listed above is 22.2 kN (5,000 lbf).
C1 C2
Lifeline Specifications:
Figure 1
Description
Reference
DP1 1 in. Polyester Diamond Weave (0.056 in. Thick)
Performance - SRDs
Capacity Range:
Maximum Arresting Force:
Minimum Fall Clearance Required:
*Assumes the SRD is mounted directly above the user.

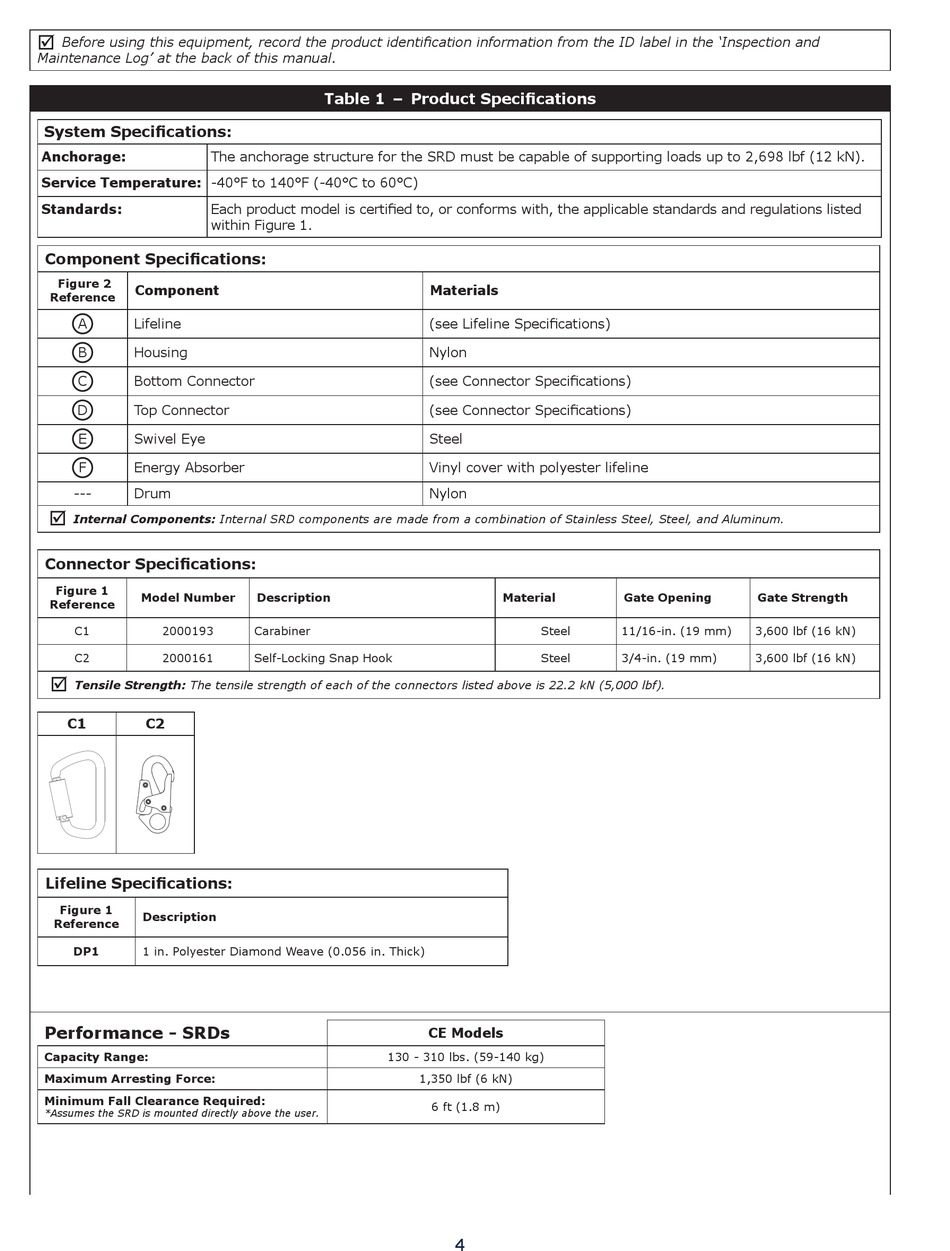

Table 1 – Product Specifications
Materials
(see Lifeline Specifications)
Nylon
(see Connector Specifications)
(see Connector Specifications)
Steel
Vinyl cover with polyester lifeline
Nylon
Description
Carabiner
Self-Locking Snap Hook
CE Models
130 - 310 lbs. (59-140 kg)
1,350 lbf (6 kN)
6 ft (1.8 m)
Material Gate Opening
Steel 11/16-in. (19 mm)
Steel 3/4-in. (19 mm)
4
Gate Strength
3,600 lbf (16 kN)
3,600 lbf (16 kN)
