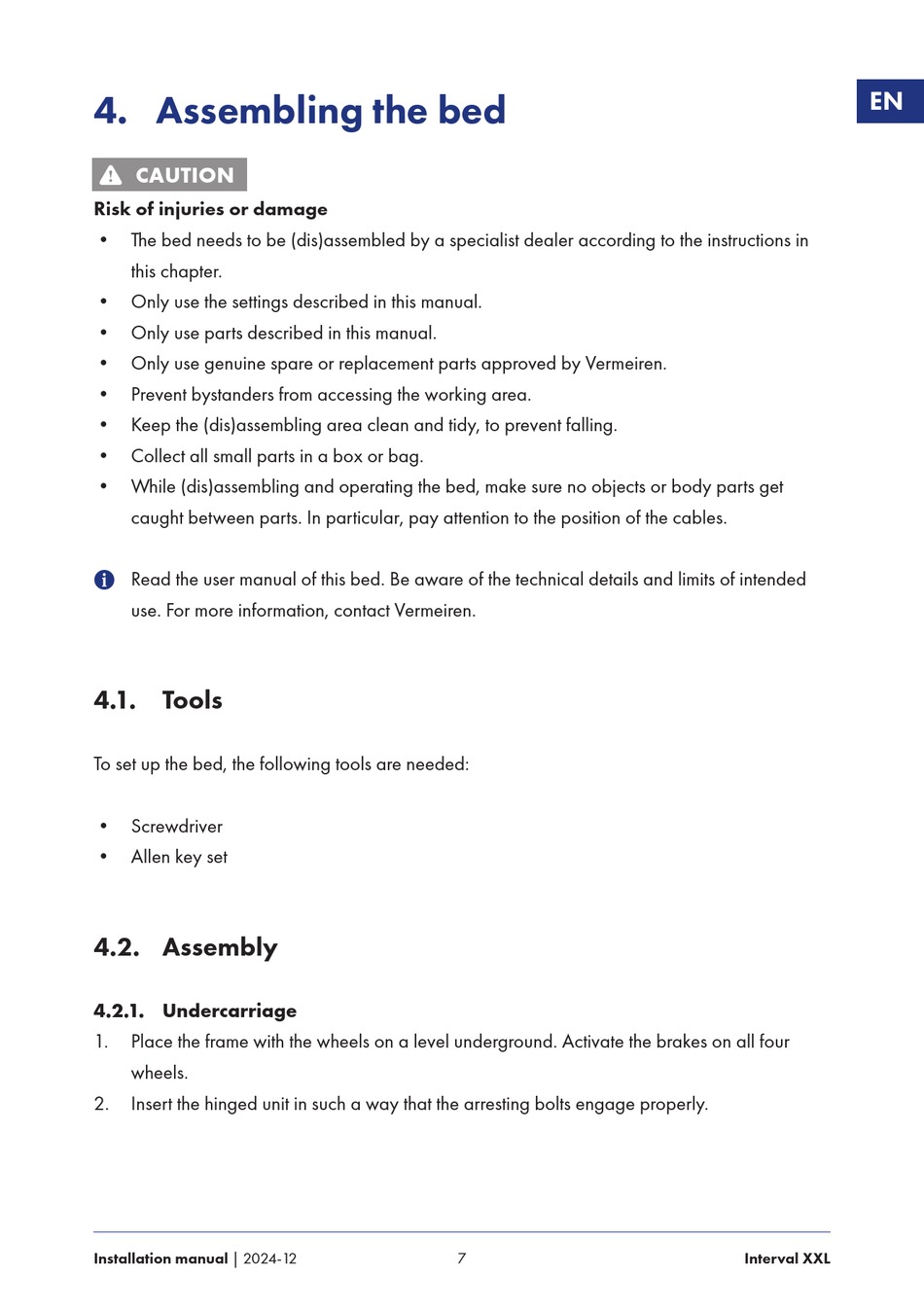

4. Assembling the bed
CAUTION
6
Risk of injuries or damage
• The bed needs to be (dis)assembled by a specialist dealer according to the instructions in
this chapter.
• Only use the settings described in this manual.
• Only use parts described in this manual.
• Only use genuine spare or replacement parts approved by Vermeiren.
• Prevent bystanders from accessing the working area.
• Keep the (dis)assembling area clean and tidy, to prevent falling.
• Collect all small parts in a box or bag.
• While (dis)assembling and operating the bed, make sure no objects or body parts get
caught between parts. In particular, pay attention to the position of the cables.
Read the user manual of this bed. Be aware of the technical details and limits of intended
4
use. For more information, contact Vermeiren.
4.1. Tools
To set up the bed, the following tools are needed:
• Screwdriver
• Allen key set
4.2. Assembly
4.2.1. Undercarriage
1. Place the frame with the wheels on a level underground. Activate the brakes on all four
wheels.
2. Insert the hinged unit in such a way that the arresting bolts engage properly.
Installation manual | 2024-12
7
EN
Interval XXL
