Take hold of the plug only to remove it from the power socket.
The power connection must not have any loops or kinks and should not pass around sharp
edges. Protect the power connection and the cable leading to the handset from being crushed.
4.2.6. Cable placement
Installation manual | 2024-12

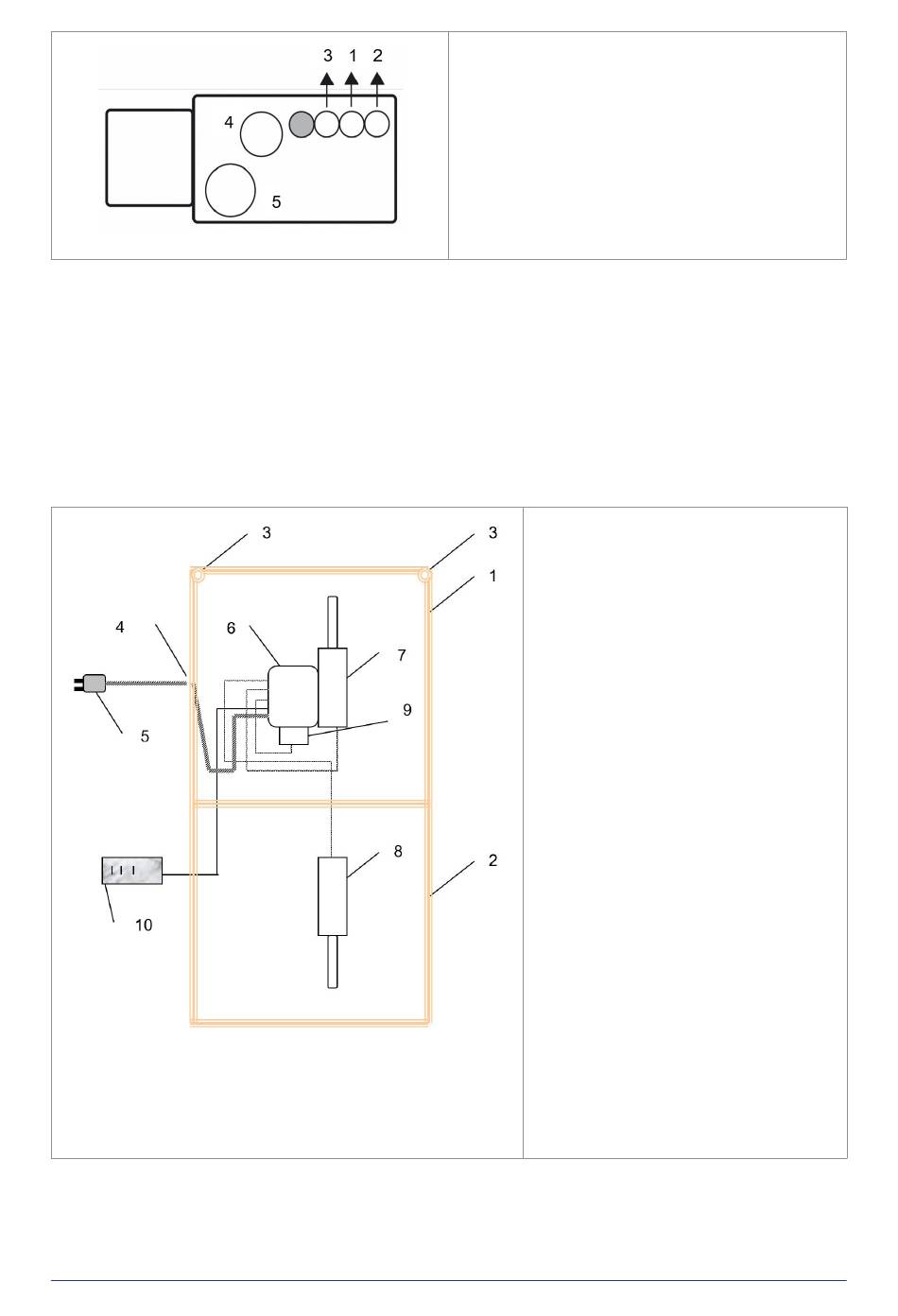

1. Connection of head section motor
2. Connection of knee-bending angle
motor
3. Connection of head panel motor
4. Connection of undercarriage motor
5. Handset
1. Mattress slatted frame head
end
2. Mattress slatted frame feet end
3. Sockets lifting pole
4. Strain relief
5. Power supply
6. Control box
7. Head end motor
8. Knee-bend motor
9. Mattress support height
adjustment motor
10. Handset
All wires within the bed frame
should be placed in such a way
that contact with the floor, deformity
and crushing are avoided. Insert the
power cables for the motors in the
opening on the motor mounts.
