Fitting the T-handle to the XS-JET-80-GRABO

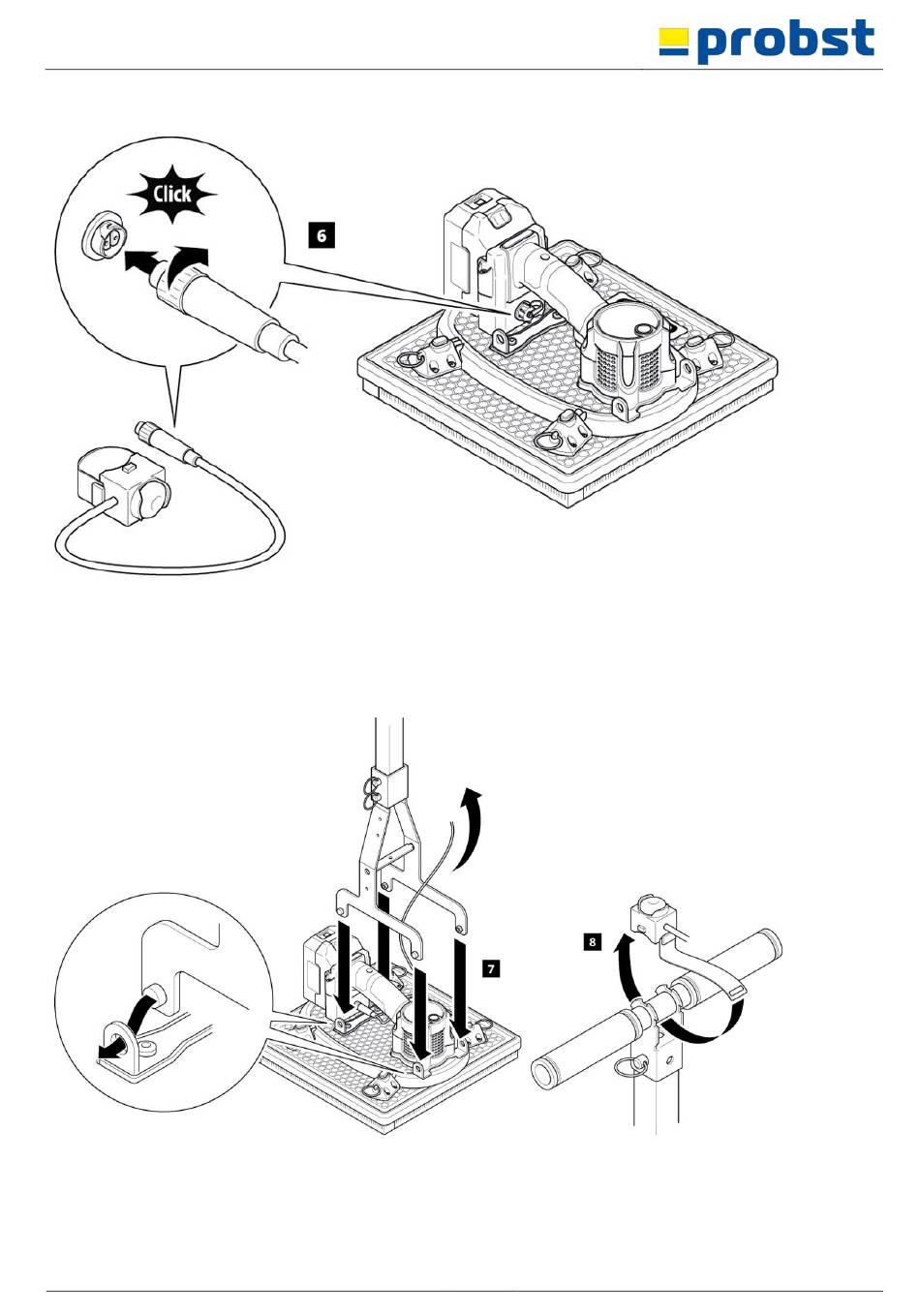

5.2 Connecting the wired remote control
Connect the cable of the wired remote control to the XS-JET-80-GRABO device. You will hear a "click"
⑥
when it is connected correctly.
5.3 Attaching the T-handle to the XS-JET-80-GRABO
Place the assembled T-handle on the device and guide the cable between the device suspensions. Slide
⑦
the four fastening elements of the device suspensions into the fastening eyelets (press together lightly)
of the XS-JET-80-GRABO device.
⑧
Attach the wired remote control to the T-handle.
