Fitting the T-handle to the XS-JET-80-GRABO
5 Fitting the T-handle to the XS-JET-80-GRABO
•
An optional T-handle can be attached to the XS-JET-80-GRABO to move heavy objects quickly
and low to the ground.

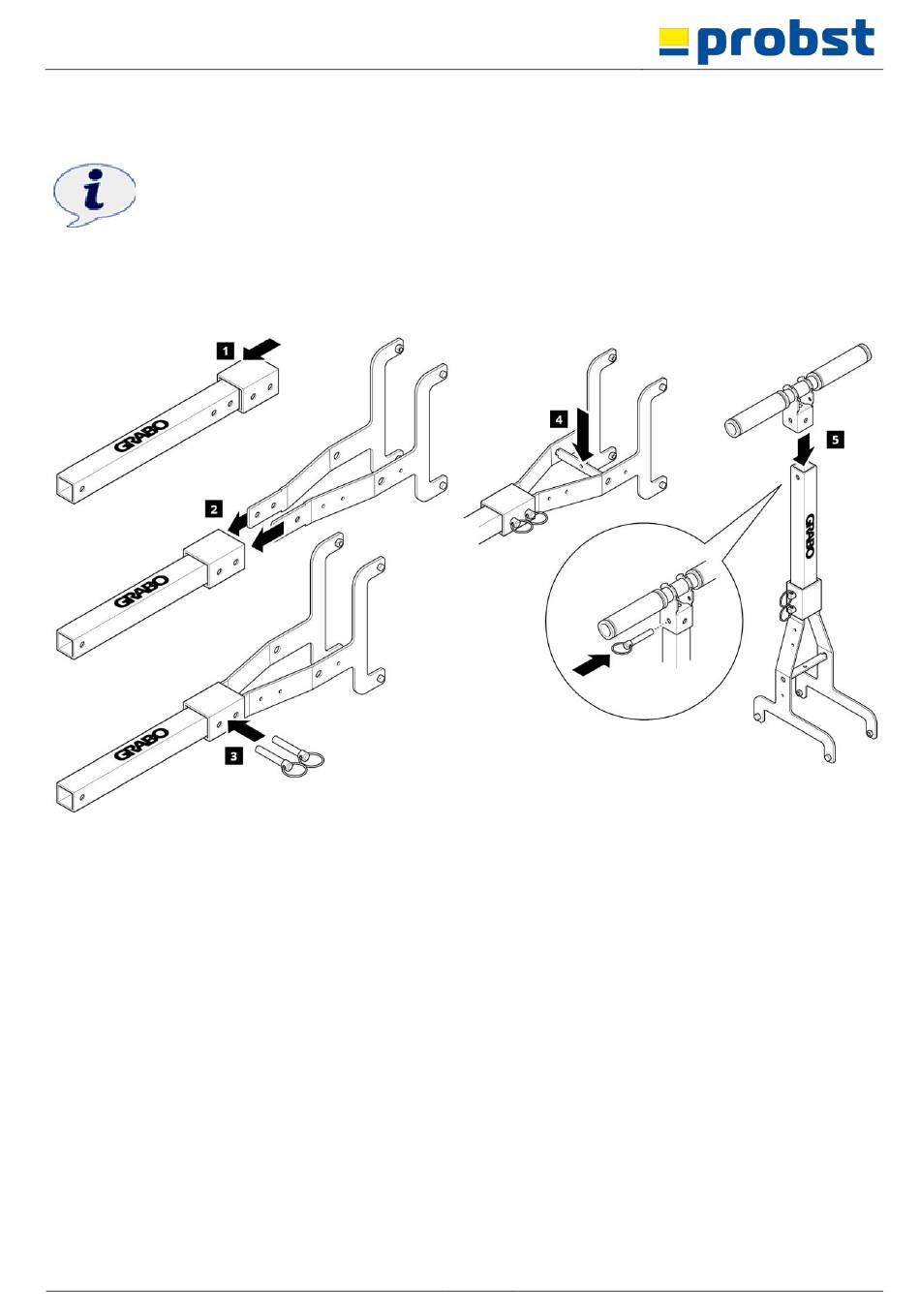

5.1 Assembling the T-handle
①
Slide the extension bracket over the extension piece so that the holes are aligned.
Slide the two appliance suspensions between the extension bracket and the extension piece. Ensure
②
that the nuts at the attachment points are on the inside.
The device is secured by pushing the long locking pins (x2) through the holes on the device
③
suspensions, the extension bracket and the extension piece.
④
Insert the spacer into the holes between the two appliance mounts.
⑤
Slide the T-piece onto the extension piece and secure with the short locking pin
