CoolAir RT 780, SP 950T
5

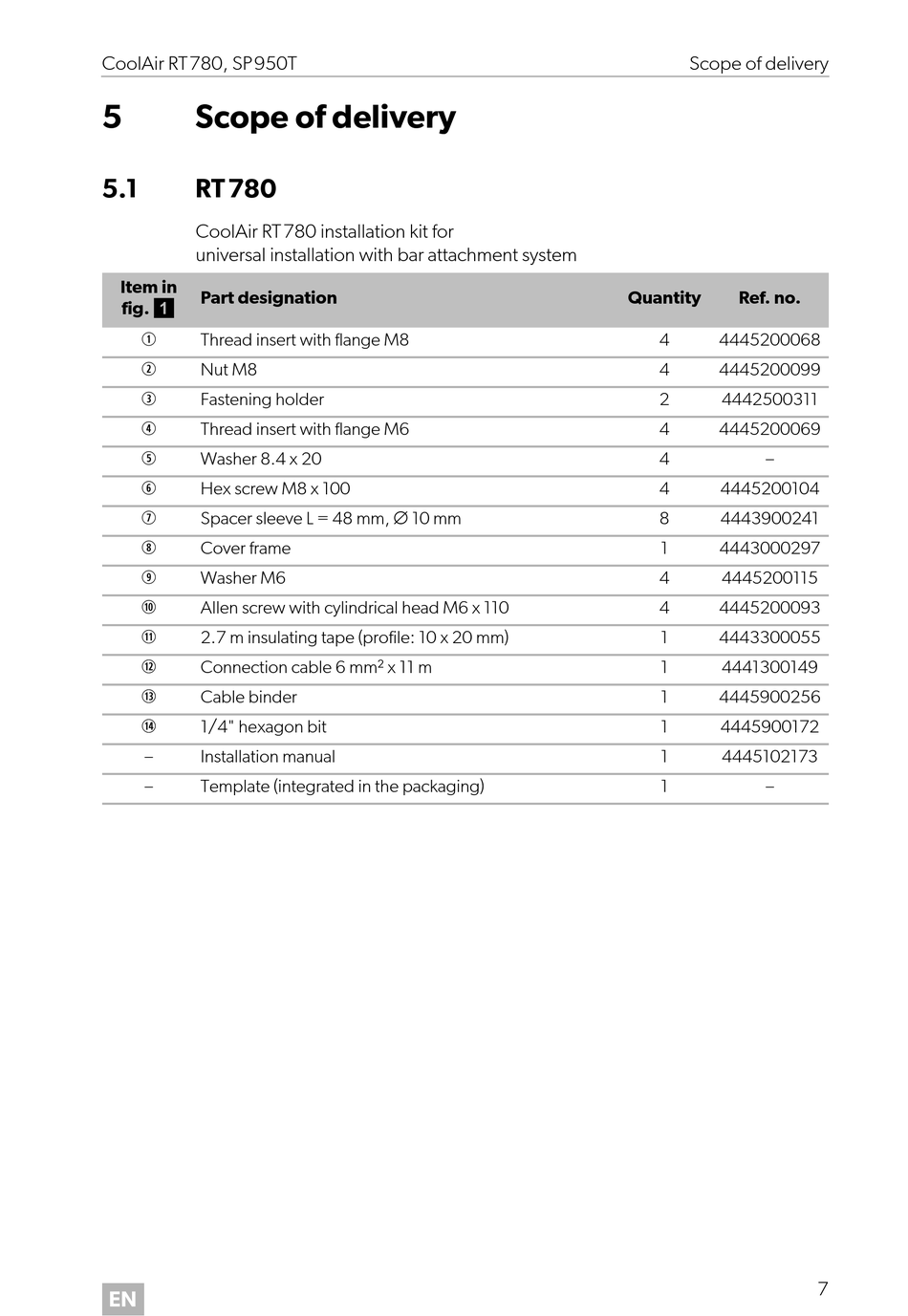

Scope of delivery

5.1

RT 780

CoolAir RT 780 installation kit for
universal installation with bar attachment system
Item in
Part designation
fig. 1

Thread insert with flange M8

Nut M8
 Fastening holder

Thread insert with flange M6

Washer 8.4 x 20

Hex screw M8 x 100
Spacer sleeve L = 48 mm, ∅ 10 mm

 Cover frame

Washer M6

Allen screw with cylindrical head M6 x 110

2.7 m insulating tape (profile: 10 x 20 mm)

Connection cable 6 mm² x 11 m

Cable binder
 1/4" hexagon bit
– Installation manual
– Template (integrated in the packaging)
EN
Scope of delivery
Quantity Ref. no.
4 4445200068
4 4445200099
2 4442500311
4 4445200069
4 –
4 4445200104
8 4443900241
1 4443000297
4 4445200115
4 4445200093
1 4443300055
1 4441300149
1 4445900256
1 4445900172
1 4445102173
1 –
7
