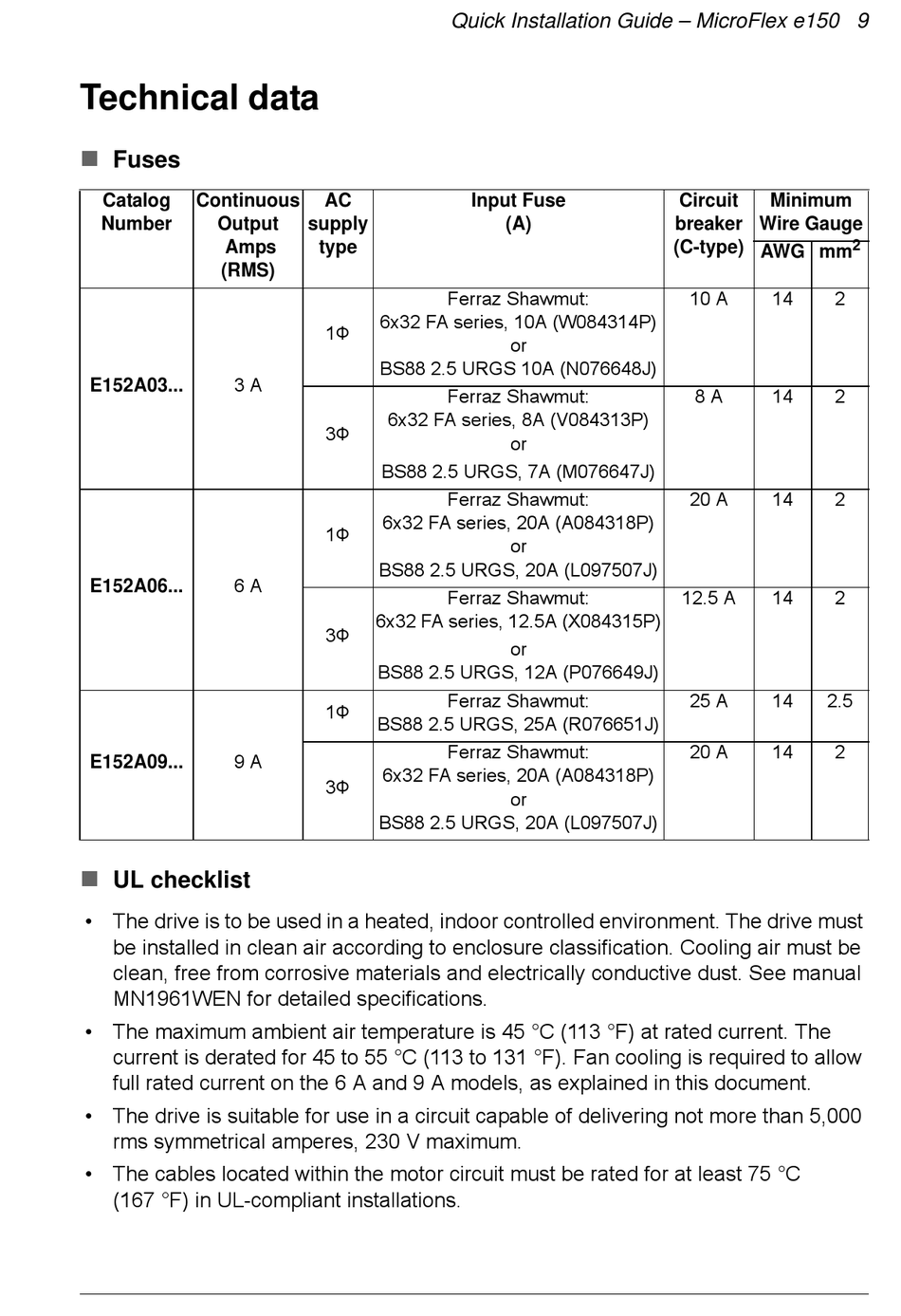

Technical data
Fuses
Catalog
Continuous
Number
Output
Amps
(RMS)
3 A
E152A03...
6 A
E152A06...
9 A
E152A09...
UL checklist
• The drive is to be used in a heated, indoor controlled environment. The drive must
be installed in clean air according to enclosure classification. Cooling air must be
clean, free from corrosive materials and electrically conductive dust. See manual
MN1961WEN for detailed specifications.
• The maximum ambient air temperature is 45 °C (113 °F) at rated current. The
current is derated for 45 to 55 °C (113 to 131 °F). Fan cooling is required to allow
full rated current on the 6 A and 9 A models, as explained in this document.
• The drive is suitable for use in a circuit capable of delivering not more than 5,000
rms symmetrical amperes, 230 V maximum.
• The cables located within the motor circuit must be rated for at least 75 °C
(167 °F) in UL-compliant installations.
Quick Installation Guide – MicroFlex e150 9
AC
Input Fuse
supply
type
Ferraz Shawmut:
6x32 FA series, 10A (W084314P)
1Φ
BS88 2.5 URGS 10A (N076648J)
Ferraz Shawmut:
6x32 FA series, 8A (V084313P)
3Φ
BS88 2.5 URGS, 7A (M076647J)
Ferraz Shawmut:
6x32 FA series, 20A (A084318P)
1Φ
BS88 2.5 URGS, 20A (L097507J)
Ferraz Shawmut:
6x32 FA series, 12.5A (X084315P)
3Φ
BS88 2.5 URGS, 12A (P076649J)
Ferraz Shawmut:
1Φ
BS88 2.5 URGS, 25A (R076651J)
Ferraz Shawmut:
6x32 FA series, 20A (A084318P)
3Φ
BS88 2.5 URGS, 20A (L097507J)
(A)
breaker
(C-type)
or
or
or
or
or
Circuit
Minimum
Wire Gauge
AWG mm
10 A
14
2
8 A
14
2
20 A
14
2
12.5 A
14
2
25 A
14
2.5
20 A
14
2
2
