24 V DC control supply and filter
MicroFlex e150 requires a 24 V DC (20-30 V DC) 1 A supply to power
the control electronics.
Connect the control supply at connector X2.
A fused DC supply should be provided for the MicroFlex e150. If other
devices are to be powered from the same 24 V supply, a filter (catalog
number FI0014A00) should be installed to isolate the MicroFlex e150
from the rest of the system. Alternatively, a ferrite sleeve may be
attached to the supply cable near connector X2.
Safe Torque Off (STO) inputs
24 V DC (12-30 V DC) must be applied to both STO inputs
to allow the drive to operate. SREF is common to both
inputs.
Analog inputs (optional)
The MicroFlex e150 can receive a ±10 V demand signal
from a motion controller.
Motor feedback input
The MicroFlex e150 can operate with incremental, SSI, EnDat, or
SinCos encoder feedback devices. The device type is configured in
Mint WorkBench.
Connect the motor feedback signal to connector X8.

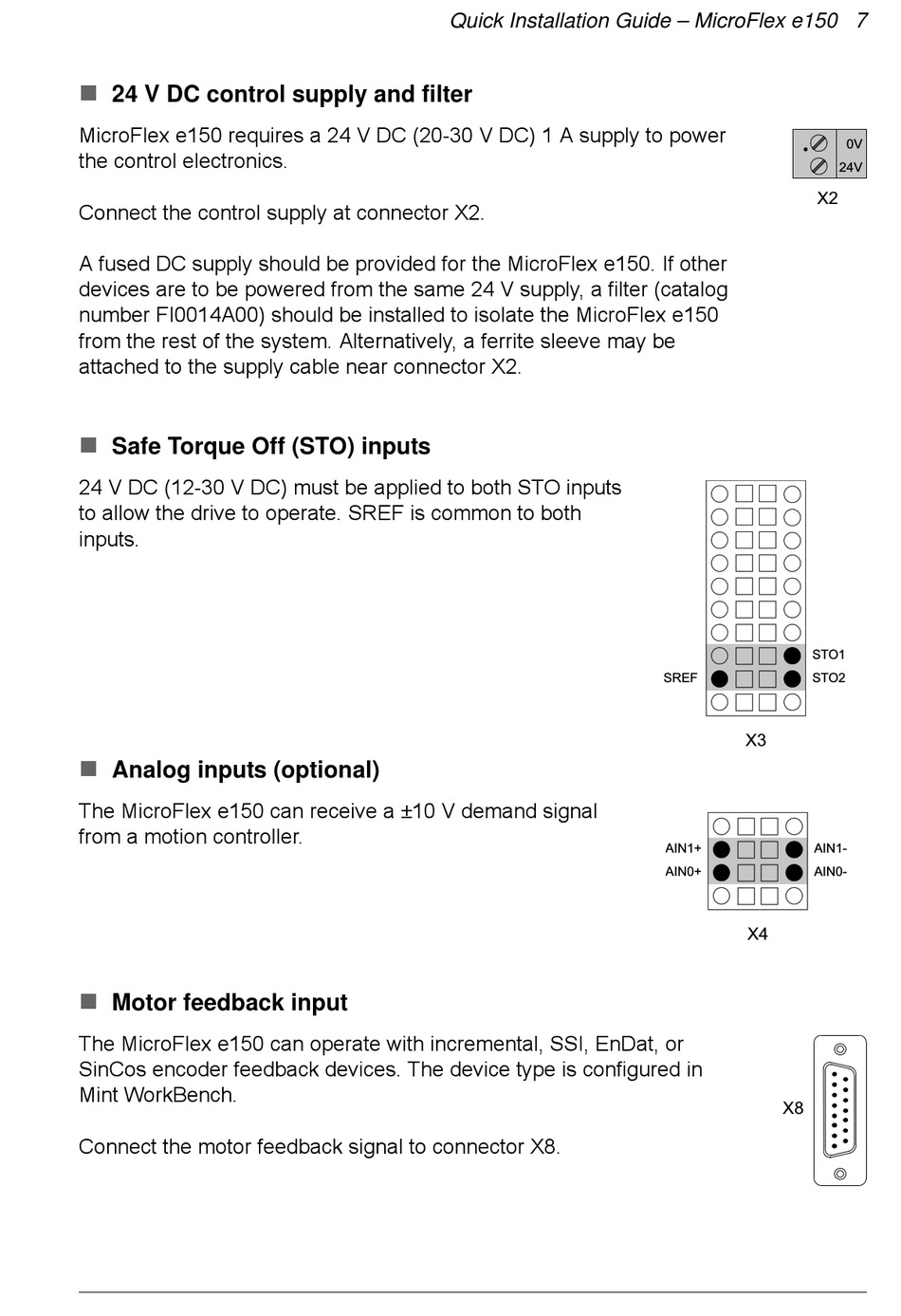

Quick Installation Guide – MicroFlex e150 7
X2
STO1
SREF
STO2
X3
AIN1+
AIN1-
AIN0+
AIN0-
X4
X8
0V
24V
