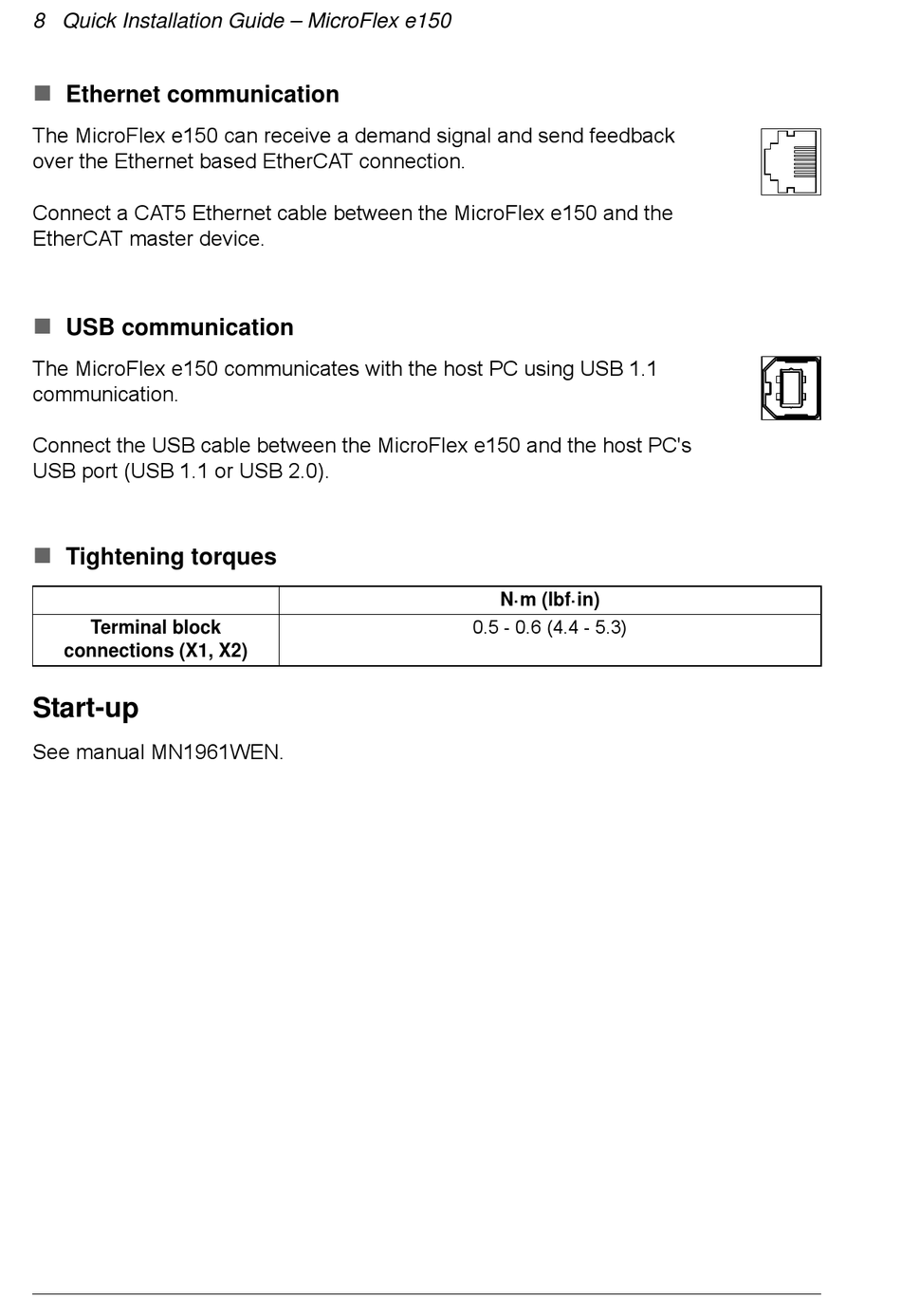

8 Quick Installation Guide – MicroFlex e150

Ethernet communication
The MicroFlex e150 can receive a demand signal and send feedback
over the Ethernet based EtherCAT connection.
Connect a CAT5 Ethernet cable between the MicroFlex e150 and the
EtherCAT master device.

USB communication
The MicroFlex e150 communicates with the host PC using USB 1.1
communication.
Connect the USB cable between the MicroFlex e150 and the host PC's
USB port (USB 1.1 or USB 2.0).

Tightening torques
Terminal block
connections (X1, X2)
Start-up
See manual MN1961WEN.
N·m (lbf·in)
0.5 - 0.6 (4.4 - 5.3)
