Spezifikationen der Datenkommunikationsschnittstelle
Schwesternruf-Schnittstelle

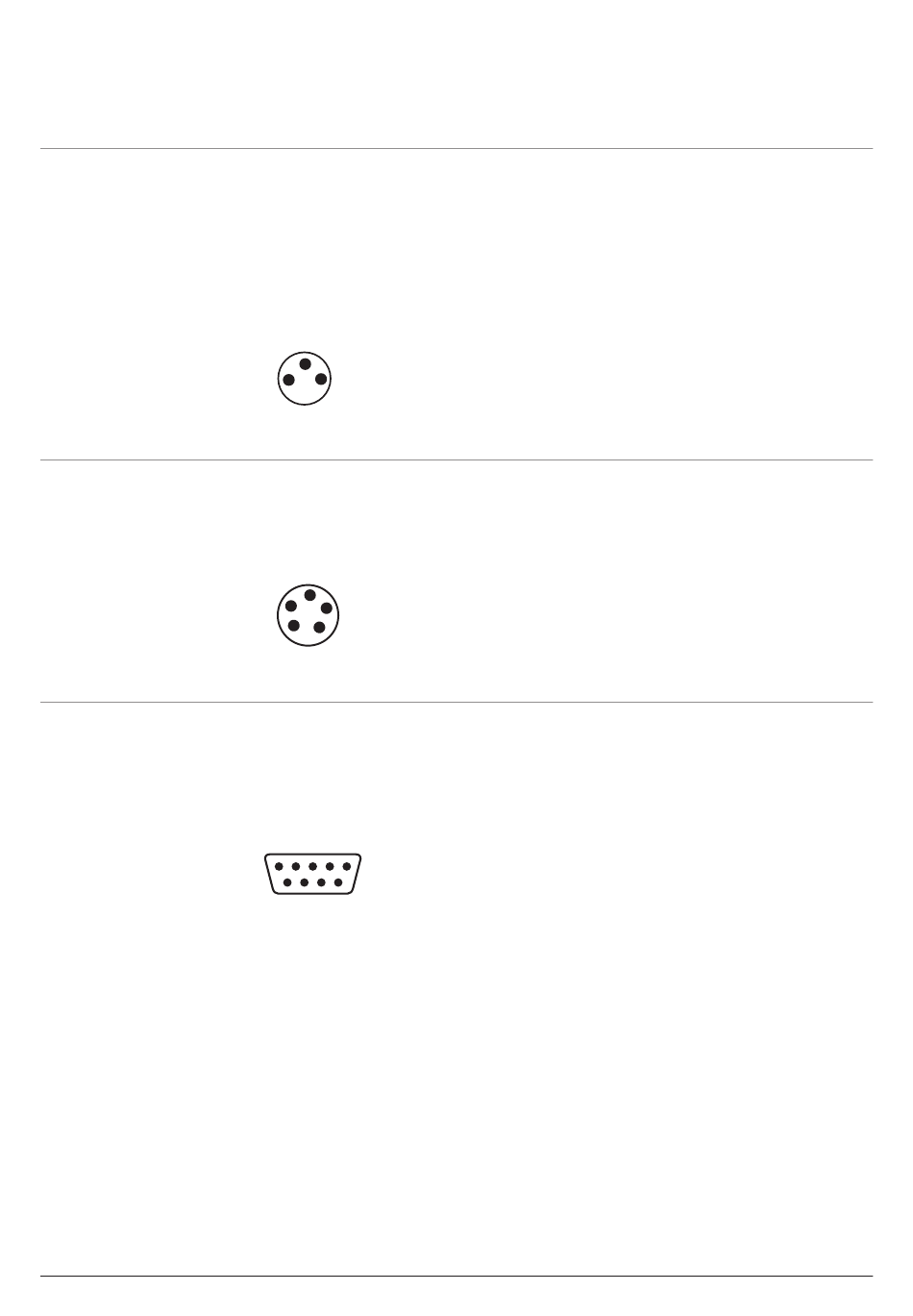

Steckertyp
für Workstation: Binder 09 0978 00 03
Passende
Buchse: Binder 99 0975 100 03 (Serie 710)
Kabeltyp: Max . 4 mm Kabelmanteldurchmesser
Isolierung: 1,5 kV
Nennwert: 30 V/1 A
Beschreibung
Kontaktstift 1: NC_COM
Kontaktstift 2: NC_NC
Kontaktstift 3: NC_NO
Schnittstelle für Strichcode-Lesegerät
Nur zur Verwendung mit einem von CareFusion bereitgestellten Strichcode-Lesegerät.
Steckertyp für Workstation: Binder 09 0998 00 05
Kabeltyp: –––
Beschreibung
Kontaktstift 1: +5 V
Kontaktstift 2: TxD
Kontaktstift 3: GND
Kontaktstift 4: RxD
Kontaktstift 5: SENSE
Serielle RS232-Schnittstelle
Anschlusstyp: D-Typ - 9-polig (weiblich)
Kabeltyp: RS232-Standardkabel: Länge <1,5 m
Isolierung: 1,5 kV
Datenrate: 57,6 kBaud
Beschreibung
Kontaktstift 1: N/C
Kontaktstift 2: RXD
Kontaktstift 3: TXD
Kontaktstift 4: N/C
Kontaktstift 5: GND
Kontaktstift 6: N/C
Kontaktstift 7: RTS
Kontaktstift 8: CTS
Kontaktstift 9: N/C
2
3
1
3
2
4
5
1
1,3
5 4
3
2 1
9 8 7 6
