ASSEMBLY INSTRUCTION

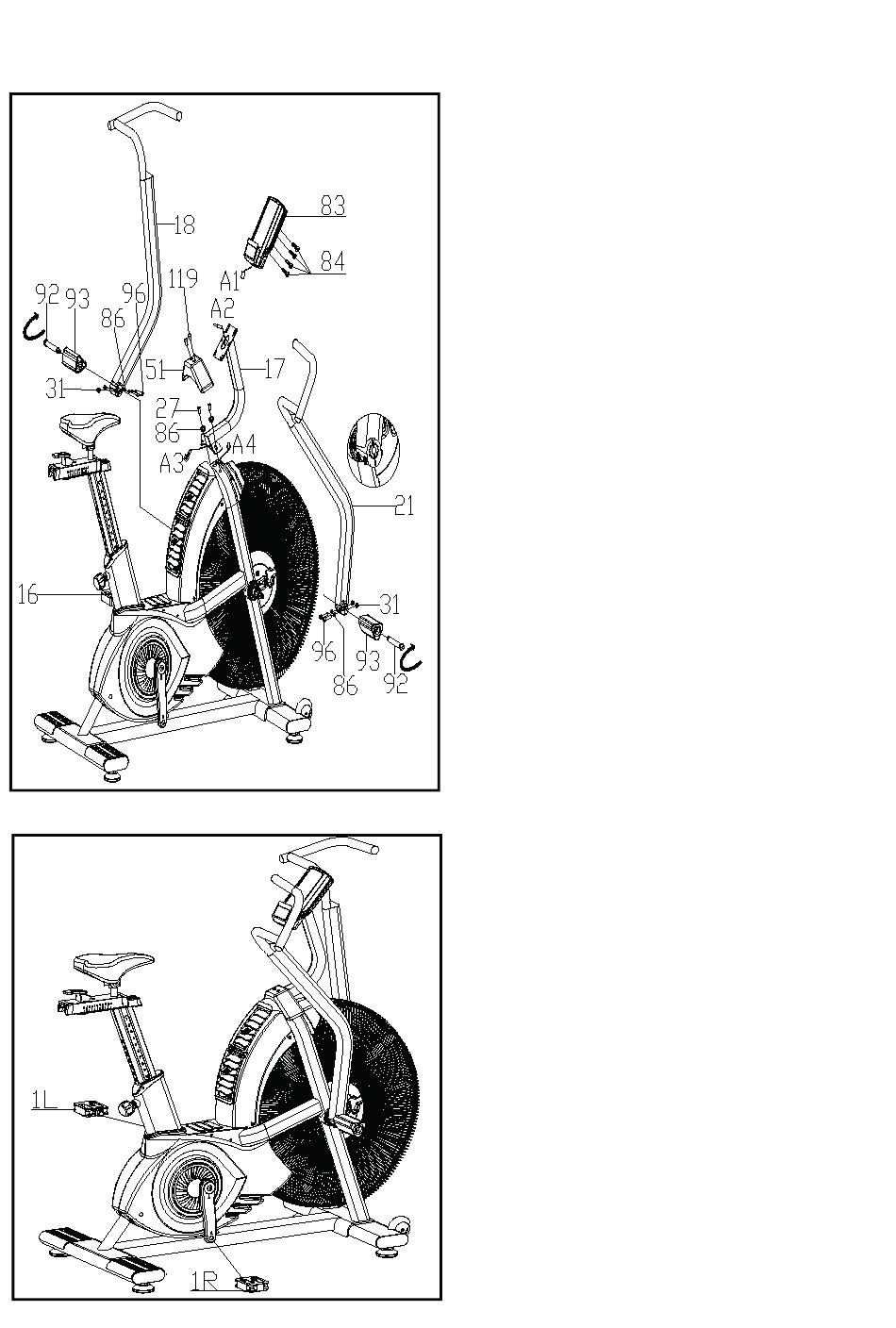

STEP 3:
Insert the left handlebar assembly (18) and the
right handlebar assembly (21) into the main fra-
me assembly (16) according to the method shown
in the figure, and use the bolts 16 (96), elastic
washers (86) and nuts (31) to lock them. Then
use tools to fix the pedal screw (92) and the pedal
decorative cover (93) to the main frame assembly
(16). After connecting the plugs (A3 & A4), fasten
the electronic watch connecting assembly (17) on
the main frame assembly (16) with the hexagon
socket BOLT 1 (27) and the spring washer 2 (86);
use the screw 1 (119) to secure the instrument tube
trim cover (51) to the electronic watch connecting
assembly (17) . Finally, connect the plugs (A1 &
A2), and then fix the computer(83) on the electronic
watch connecting assembly(17) with screws 3 (84).
STEP 4:
The Pedals (pt.1 L & pt.1 R) are marked „L" and
„R" - Left and Right. Connect them to their appro-
priate crank arms. The right crank arm is on the
right- hand side of the cycle as you sit on it.
Note that the Right pedal should be threaded on
clockwise and the Left pedal anticlockwise.
