ASSEMBLY INSTRUCTION

1.PREPARATION:
A. Before assembling make sure that you will have enough space around the item.
B. Use the present tooling for assembling.
C. Before assembling please check whether all needed parts are available (at the above
of this instruction sheet you will find an explosion drawing with all single parts (marked with numbers)
which this item consists of.
2.ASSEMBLY INSTRUCTION:
28

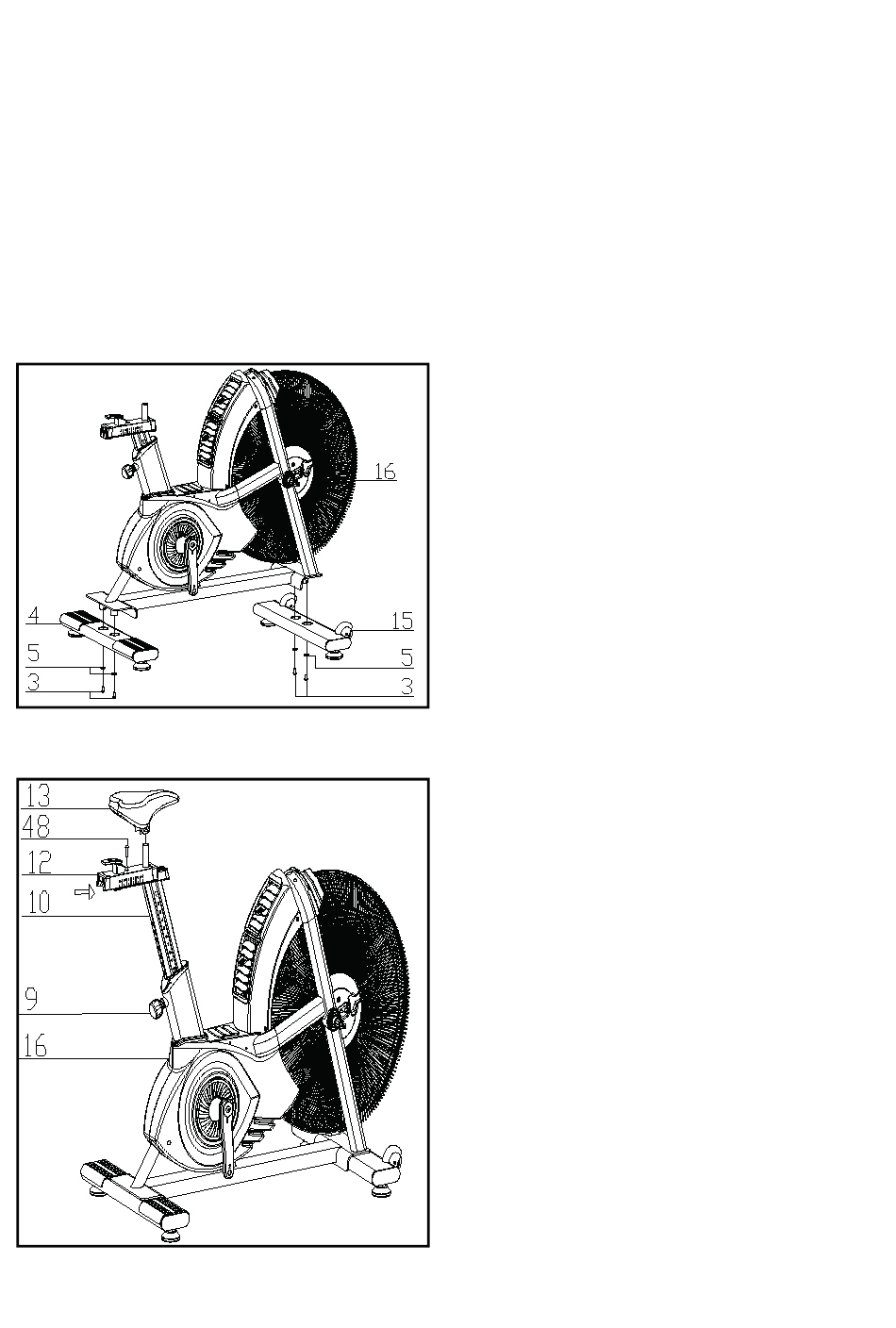

STEP 1:
Attach the Front Stabilizer (15) to the Main Frame
(16) using two sets of Ø10 Flat Washers (5) and bolt
1 (3).
Attach the Rear Stabilizer (4) to the Main Frame
(16) using two sets of Ø10 Flat Washers (5) and bolt
1 (3)
STEP 2:
And put the knob up, then release the round nut(48)
, Then slide the Seat Post (12) into the Vertical Seat
Post (10),Then fixing the bolt8 (48). You will have to
slacken the knurled section of the Adjustment Knob
(9) and pull the knob back and then select the desi-
red height. Release the knob and retighten the knur-
led portion.
Now fix the Seat (13) to the Seat Post (12) as shown,
and tighten the bolts around the screws under the
seat.
