WARNING
Unexpected switch-on when attaching the suction plate
Risk of injury due to vacuum!
1. Attach the lifting device to the carrier device
(crane, construction site vehicle, etc.) using a
suitable sling.

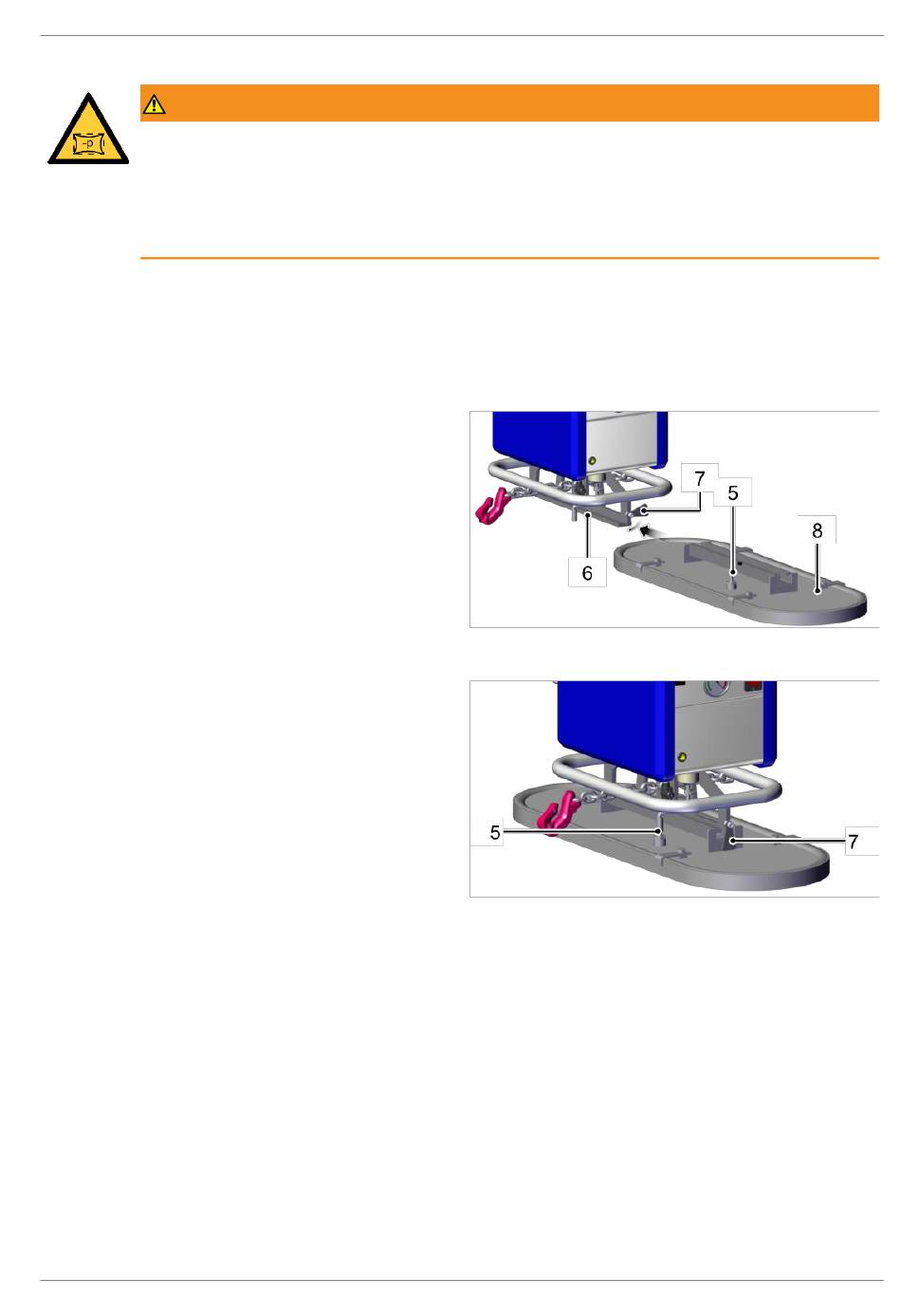

2. Slide the suction plate (8) over the mounting rail
(6) on the base body.
Alternatively, slide the suspended lifting device
onto the suction plate on the floor.
3. Ensure that the latch (7) is swiveled into its origi-
nal position and the suction plate is securely fas-
tened.
4. Connect the vacuum supply hose (5) to the va-
cuum connection on the suction plate.
EN - 30.30.01.04558 - 00 - 09/24
Ensure that the vacuum generator cannot be switched on while the suction plate is
being fitted.
7 Operation
31 / 53
