Fitting the testing
unit
Adjustment with
Robacta W/V or
Robacta G/V test-
ing devices

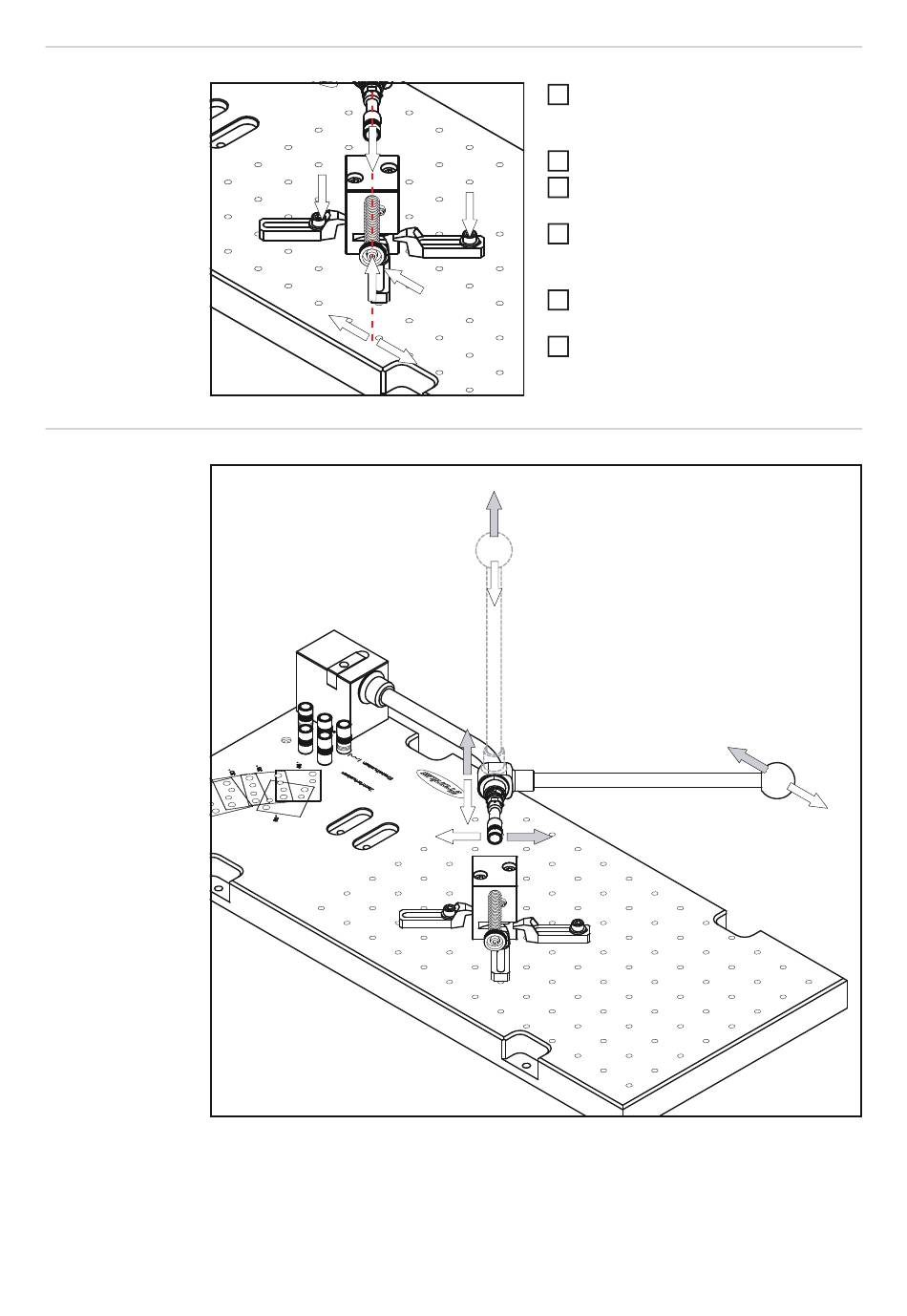

Adjusting the torch body bend
1.
34
1.
5.
4. / 6.
2.
Adjust the torch body bend
Perform adjustment as described in the sections „Adjusting water-cooled robot weld-
ing torches" or „Adjusting gas-cooled robot welding torches".
Position the testing unit on the base
1
plate according to the position of the
torch body bend
Align the testing unit
2
Loosely fix testing unit in place with a
3
clamp
3. / 5.
Test torch body bend as described in
4
Robacta testing device operating inst-
ructions
5.
Fix testing unit in place using the re-
5
maining clamps
Test torch body bend as described in
6
Robacta testing device operating inst-
ructions
