Adjusting the
torch body bend

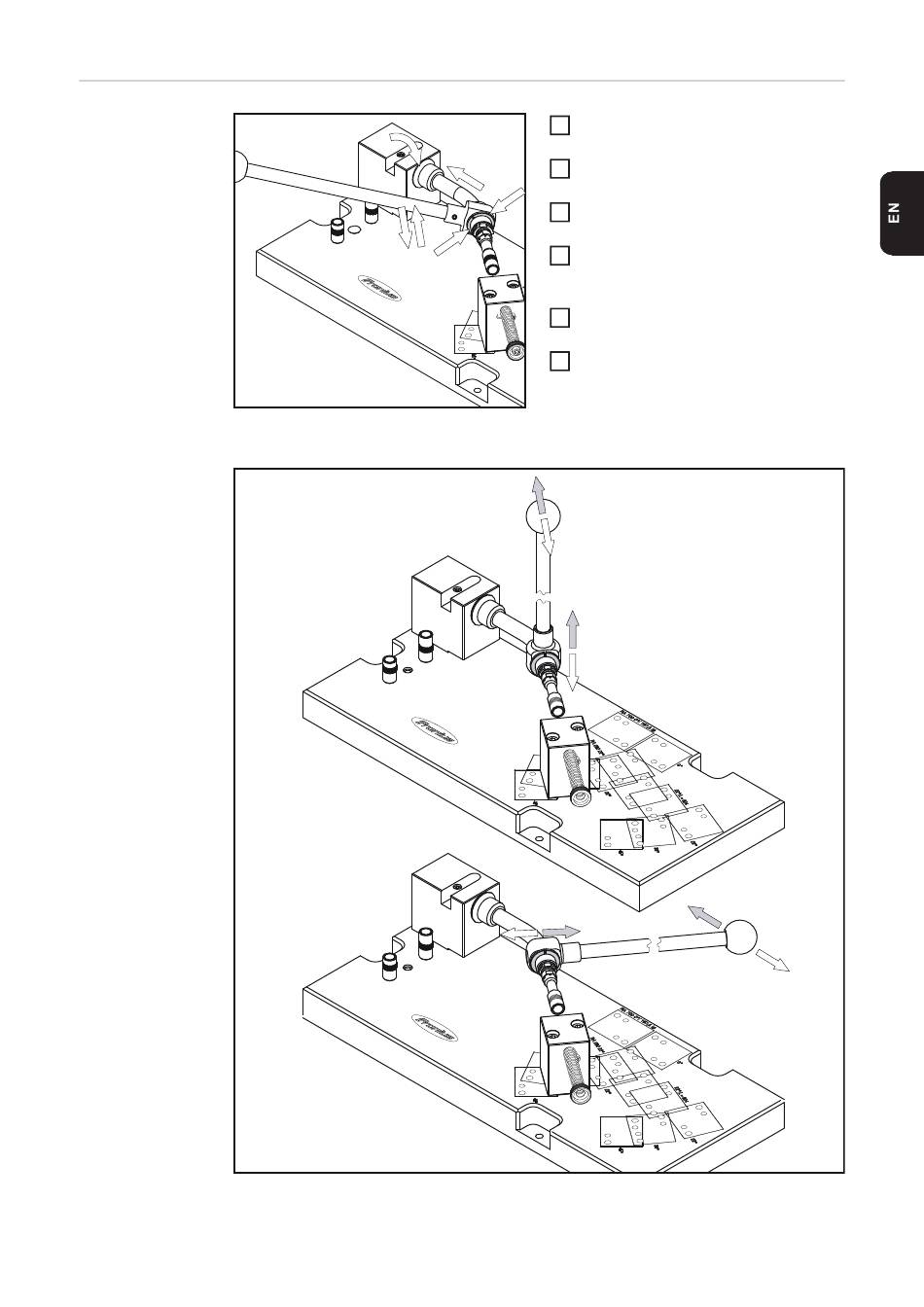

Place the torch body bend onto holder on the Robacta
testing device
Vertical / horizontal adjustment of torch body bend
2.
1.
4.
3.
5.
4.
Insert torch body into the bend holder
1
on the base plate as far as it will go
Fix torch body to bend holder using M5
2
x 20 mm Allen screw
Push adjusting lever over the torch
3
body bend
Place the adjustment shell onto the
4
torch body bend, with the collar facing
the gas nozzle holder
Push adjusting lever over the adjust-
5
ment shell
Adjust torch body bend horizontally
6
and/or vertically
31
