General
Safety
General remarks
The Robacta adjusting device can be used to correct measurement discrepancies on Ro-
bacta robot welding torches.
The Robacta adjusting device is available in 2 versions:
-
-
Scope of supply
Also required for
Robacta testing device:
adjusting robot
-
welding torches
-
-
-
For frequent adjustments:
-
WARNING! Operating the equipment incorrectly or shoddy workmanship can
cause serious injury and damage. The following activities must only be carried out
by trained and qualified personnel! Take note of the safety rules in the power
source operating instructions.
NOTE! In the case of discrepancies of more than 5 mm, do not try to adjust the
torch body bend yourself. Send it to Fronius for repair.
Robacta adjusting device basic set (44,0350,2206): for adjusting water-cooled robot
welding torches
Robacta G adjusting device basic set (44,0350,2433): for adjusting gas-cooled robot
welding torches

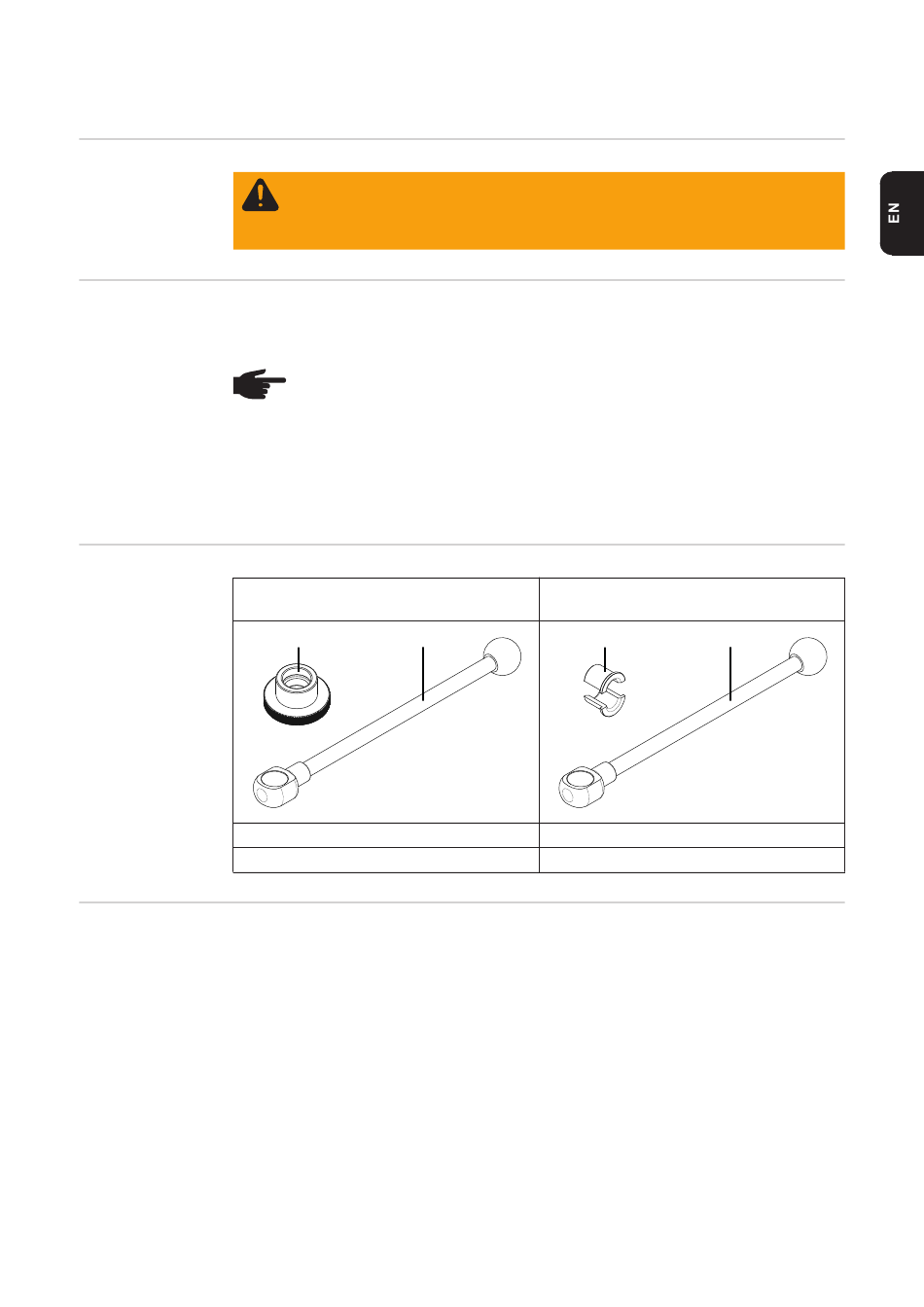

Robacta adjusting device basic set
(44,0350,2206)
(1)
(2)
(1) supporting nut
(2) adjusting lever
Robacta testing device W (44,0360,0063) for water-cooled robot welding torches
Robacta testing device W/V (44,0360,0070) for customer-specific, water-cooled robot
welding torches
Robacta testing device G (44,0360,0064) for gas-cooled robot welding torches
Robacta testing device G/V (44,0360,0069) for customer-specific, gas-cooled robot
welding torches
Steel „Professional" base plate (42,0201,2064)
Robacta G adjusting device basic set
(44,0350,2433)
(1)
(2)
(1) adjusting shell
(2) adjusting lever
23
