EN

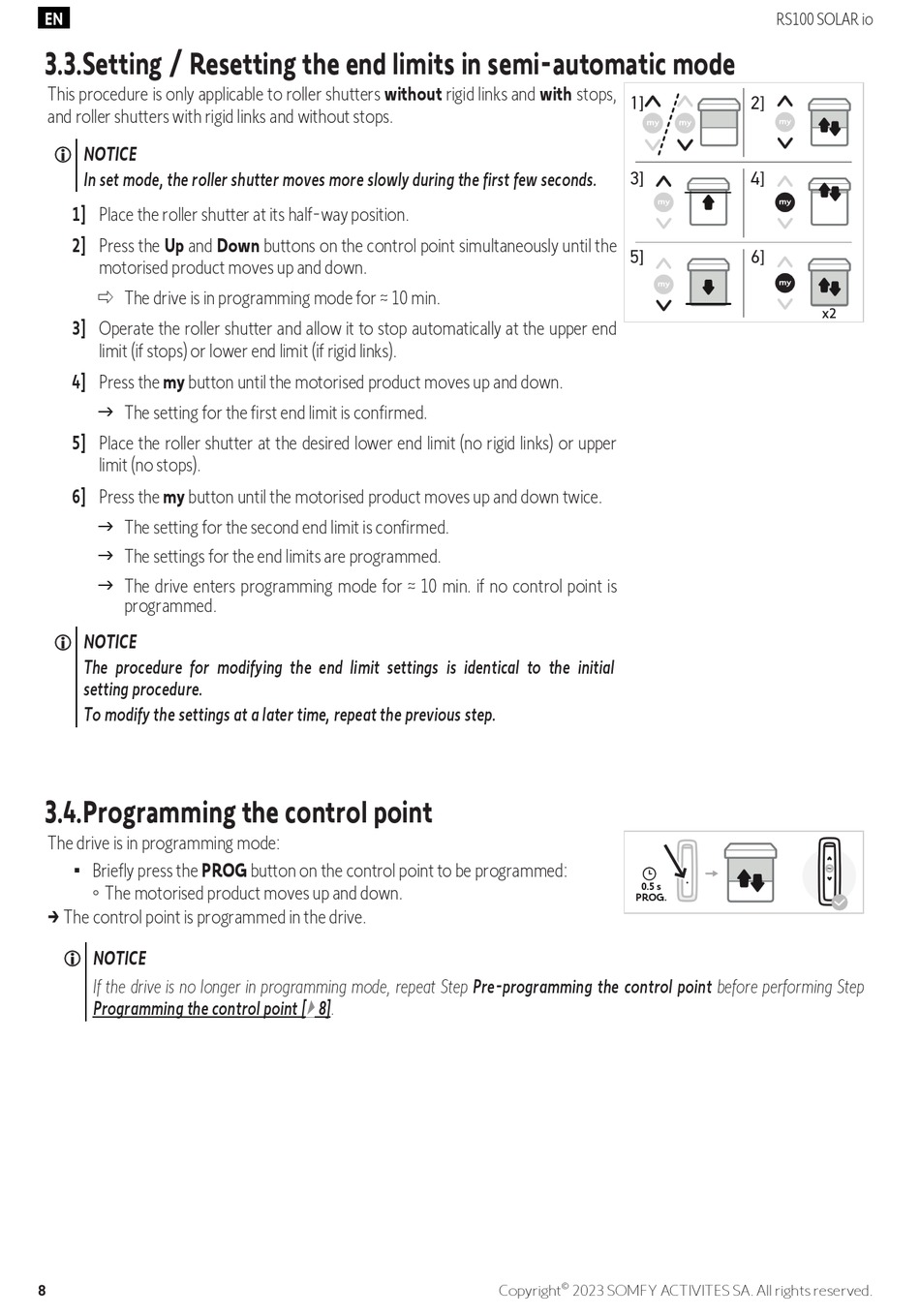

3.3.Setting / Resetting the end limits in semi-automatic mode
This procedure is only applicable to roller shutters without rigid links and with stops,
and roller shutters with rigid links and without stops.
NOTICE
In set mode, the roller shutter moves more slowly during the first few seconds.
1] Place the roller shutter at its half-way position.
2] Press the Up and Down buttons on the control point simultaneously until the
motorised product moves up and down.
ð The drive is in programming mode for ≈ 10 min.
3] Operate the roller shutter and allow it to stop automatically at the upper end
limit (if stops) or lower end limit (if rigid links).
4] Press the my button until the motorised product moves up and down.
g The setting for the first end limit is confirmed.
5] Place the roller shutter at the desired lower end limit (no rigid links) or upper
limit (no stops).
6] Press the my button until the motorised product moves up and down twice.
g The setting for the second end limit is confirmed.
g The settings for the end limits are programmed.
g The drive enters programming mode for ≈ 10 min. if no control point is
programmed.
NOTICE
The procedure for modifying the end limit settings is identical to the initial
setting procedure.
To modify the settings at a later time, repeat the previous step.
3.4.Programming the control point
The drive is in programming mode:
▪ Briefly press the PROG button on the control point to be programmed:
◦ The motorised product moves up and down.
→ The control point is programmed in the drive.
NOTICE
If the drive is no longer in programming mode, repeat Step Pre-programming the control point before performing Step
Programming the control point [
8
} 8].
1]
3]
5]
0.5 s
PROG.
©
Copyright 2023 SOMFY ACTIVITES SA. All rights reserved.
RS100 SOLAR io
2]
4]
6]
x2
