RS100 SOLAR io

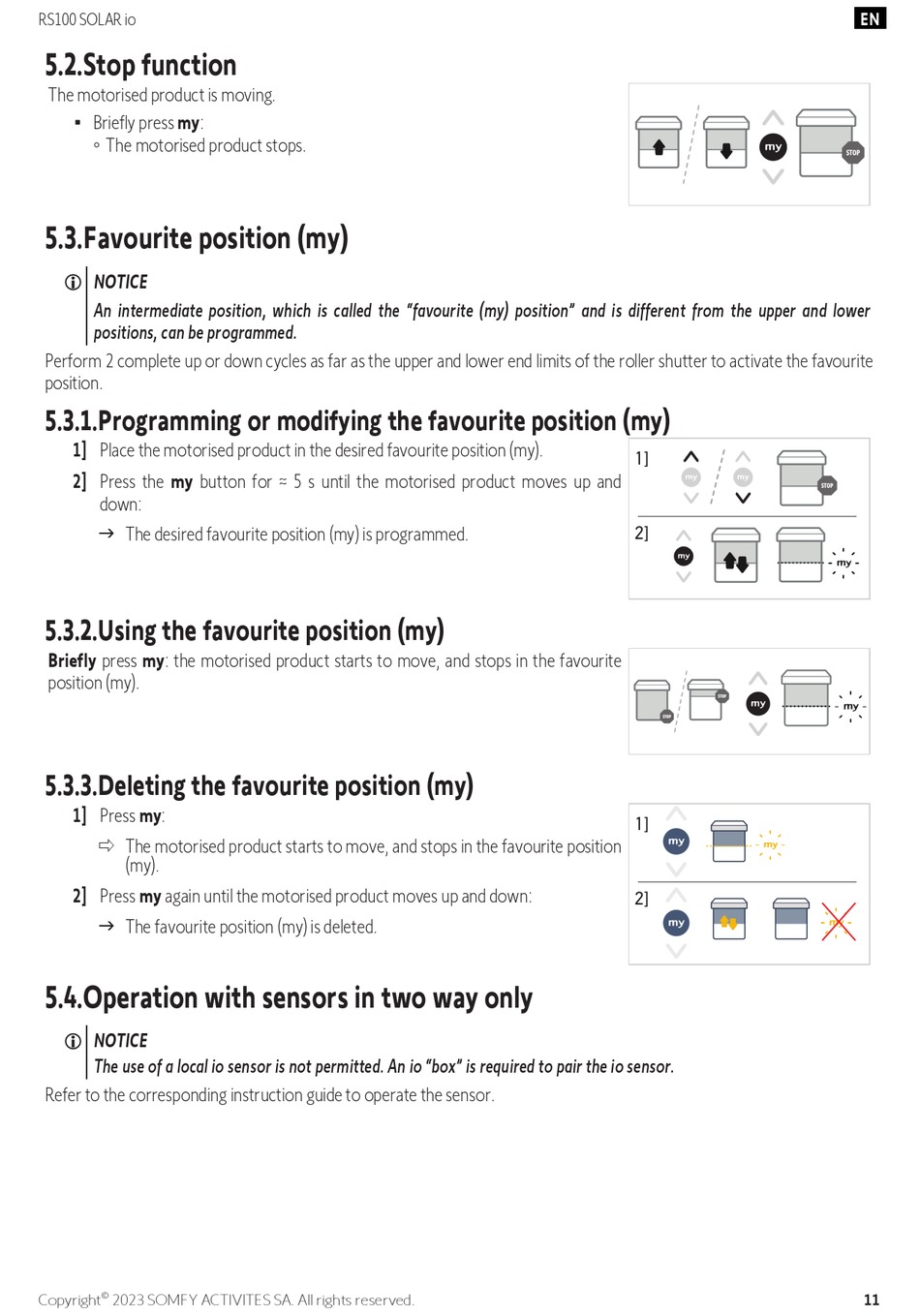

5.2.Stop function
The motorised product is moving.
▪ Briefly press my:
◦ The motorised product stops.
5.3.Favourite position (my)
NOTICE
An intermediate position, which is called the "favourite (my) position" and is different from the upper and lower
positions, can be programmed.
Perform 2 complete up or down cycles as far as the upper and lower end limits of the roller shutter to activate the favourite
position.
5.3.1.Programming or modifying the favourite position (my)
1] Place the motorised product in the desired favourite position (my).
2] Press the my button for ≈ 5 s until the motorised product moves up and
down:
g The desired favourite position (my) is programmed.
5.3.2.Using the favourite position (my)
Briefly press my: the motorised product starts to move, and stops in the favourite
position (my).
5.3.3.Deleting the favourite position (my)
1] Press my:
ð The motorised product starts to move, and stops in the favourite position
(my).
2] Press my again until the motorised product moves up and down:
g The favourite position (my) is deleted.
5.4.Operation with sensors in two way only
NOTICE
The use of a local io sensor is not permitted. An io "box" is required to pair the io sensor.
Refer to the corresponding instruction guide to operate the sensor.
©
