RS100 SOLAR io

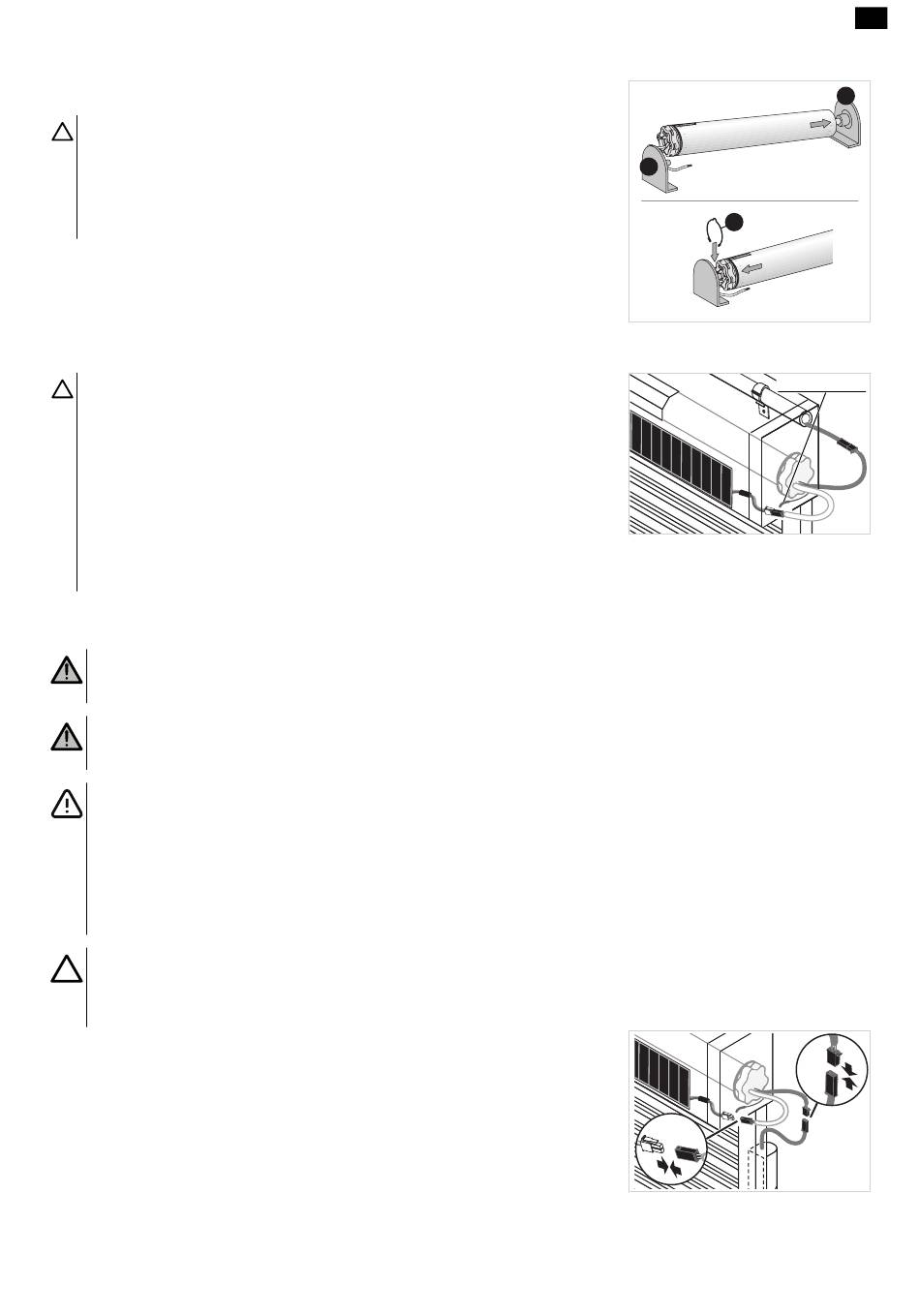

2.1.4.Installing the drive-tube
Secure the tube end piece onto the roller tube.
CAUTION
• The motorised product must not be compressed between the brackets.
• Ensure that the drive-tube assembly is secured onto the end bracket. This
operation prevents the tube-drive assembly from coming out of the end
bracket attachment.
1] Install and fix the drive-tube assembly onto the end bracket (f) and onto the
drive bracket (g).
2] Depending on the type of bracket, fit the stop ring (h) in place.
2.1.5.Installation of the antenna
CAUTION
• The antenna must be positioned between the endplate of the roller shutter
and the inner cheek of the box.
• The antenna must imperatively be protected from the moving parts of the
roller shutter.
• The antenna should never be cut or degraded (Risk of alteration of the radio
range).
• To ensure the best radio performance of the system, it is recommended to
position the antenna downwards and away from the battery power cables.
2.1.6.Wiring
WARNING
Comply with Standard NF C 15-100 for electrical installations.
WARNING
To ensure electrical safety, this drive must be powered by a «SELV» voltage source (Safety Extra Low Voltage).
PRECAUTION
• Cables routed through a metal wall must be protected and insulated by sleeving or sheathing.
• Secure the cables to prevent any contact with moving parts.
• If the drive is used outdoors and if the power supply cable is of the H05-VVF type, run the cable in a UV-resistant
duct, e.g. trunking.
• The drive cable is removable. If it becomes damaged, replace it with an identical cable.
CAUTION
• Leave the drive power supply cable accessible: it must be easily replaceable.
• Always make a loop in the power supply cable to prevent water from entering the drive.
1] Wire the 2-pin connector (A) of the battery with the 2-pin connector (B) of
the drive black cable.
2] Wire the 2-pin connector (C) of the solar panel with the 2-pin connector (D)
of the drive white cable.
©
Copyright
2023 SOMFY ACTIVITES SA. All rights reserved.
1]
g
2]
h
Antenna
B
A
C
D
EN
f
5
