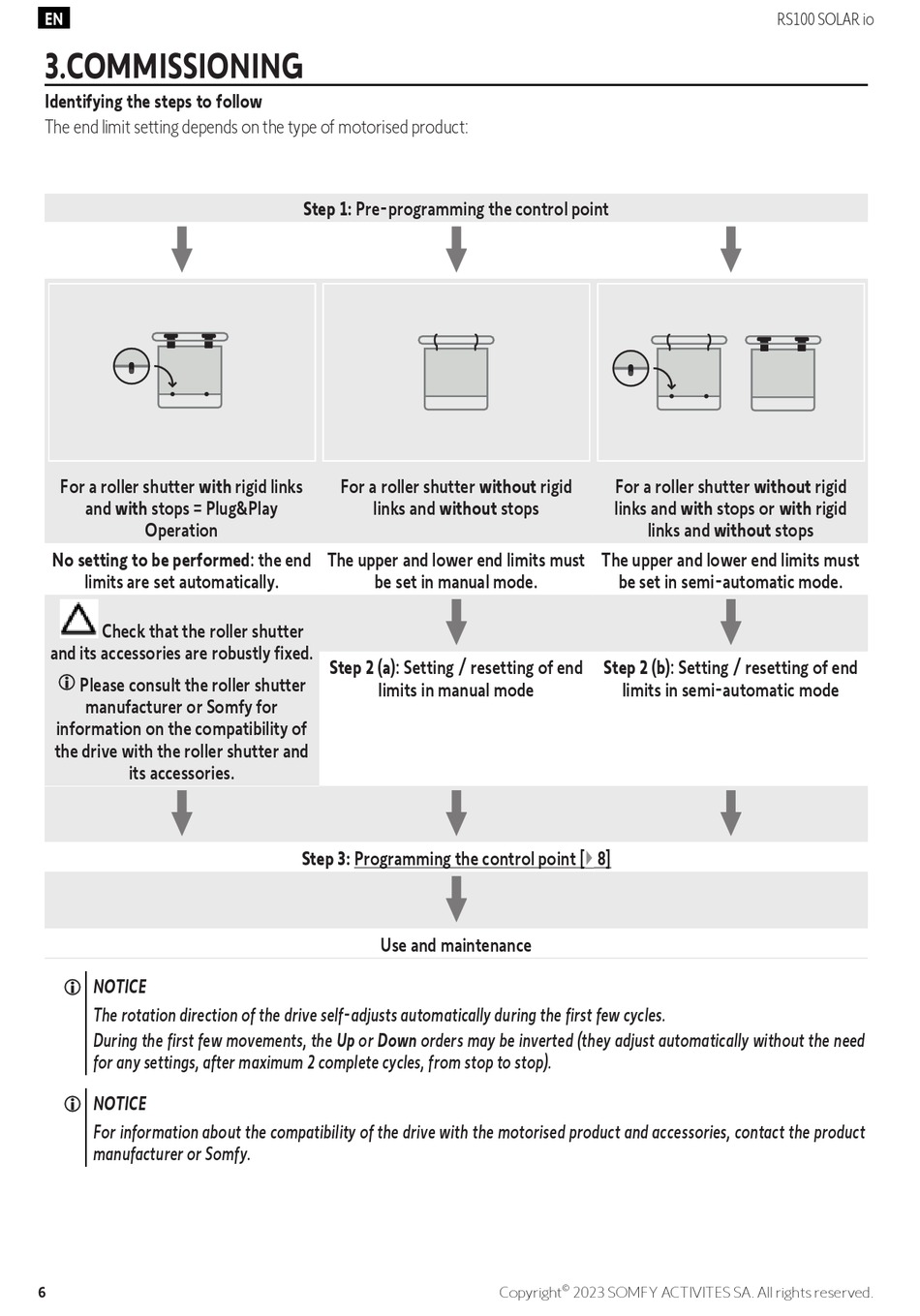

3.COMMISSIONING

Identifying the steps to follow

The end limit setting depends on the type of motorised product:

For a roller shutter with rigid links

and with stops = Plug&Play

Operation

No setting to be performed: the end

limits are set automatically.

Check that the roller shutter

and its accessories are robustly fixed.

Please consult the roller shutter

manufacturer or Somfy for

information on the compatibility of

the drive with the roller shutter and

its accessories.

NOTICE

The rotation direction of the drive self-adjusts automatically during the first few cycles.

During the first few movements, the Up or Down orders may be inverted (they adjust automatically without the need

for any settings, after maximum 2 complete cycles, from stop to stop).

NOTICE

For information about the compatibility of the drive with the motorised product and accessories, contact the product

manufacturer or Somfy.

Step 1: Pre-programming the control point

For a roller shutter without rigid

links and without stops

The upper and lower end limits must

be set in manual mode.

Step 2 (a): Setting / resetting of end

limits in manual mode

Step 3: Programming the control point [} 8]

Use and maintenance

For a roller shutter without rigid

links and with stops or with rigid

links and without stops

The upper and lower end limits must

be set in semi-automatic mode.

Step 2 (b): Setting / resetting of end

limits in semi-automatic mode
