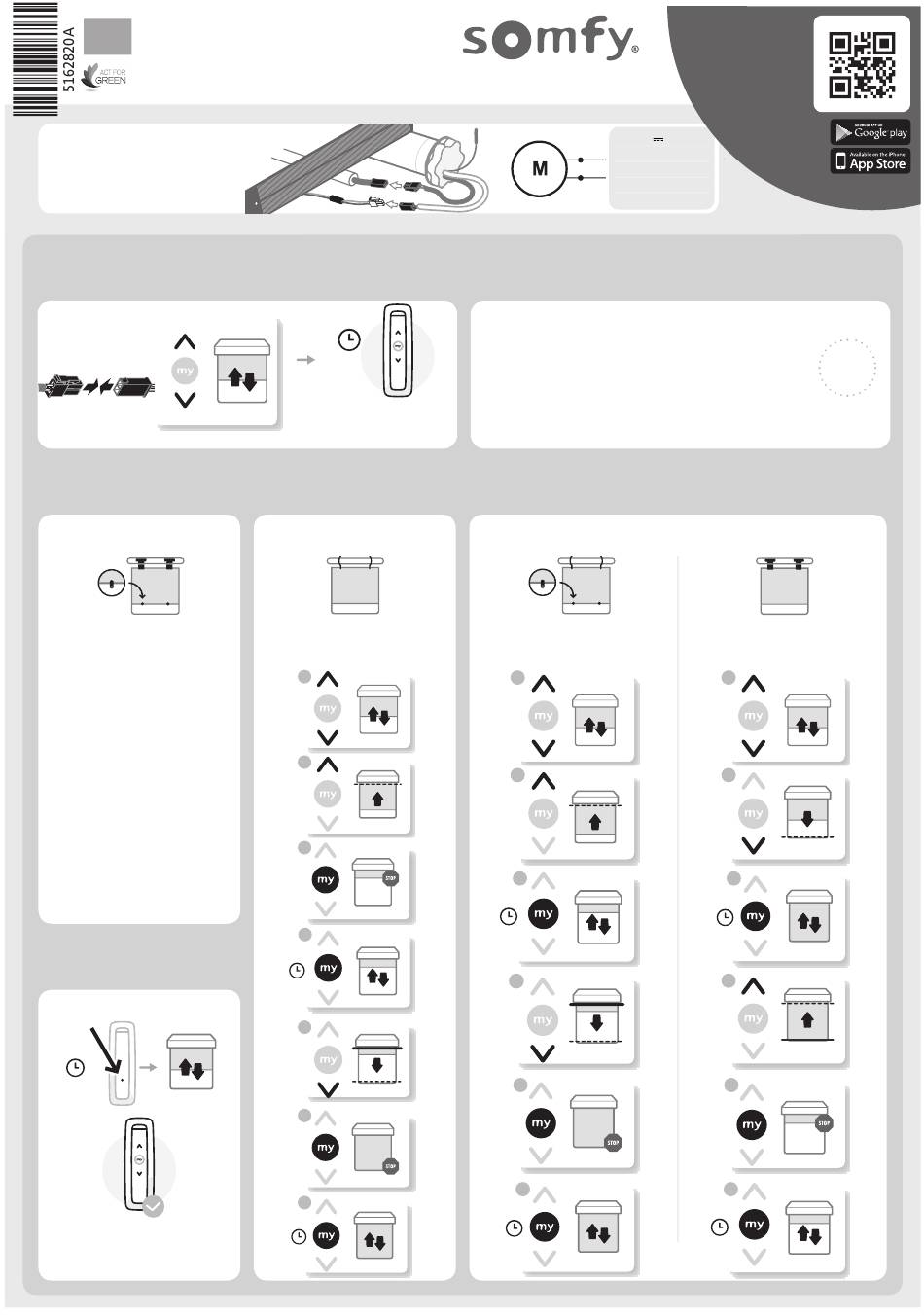

RS100 SOLAR io
Short installation guide
O
RIGINAL INSTRUCTIONS
Complete instruction guide available online on www.somfy.info
1
PREPROGRAMMING A CONTROL POINT
ON
2
AUTOMATIC MODE
Roller shutter with rigid links and
with stops
No setting to be
performed: the end limits
are set automatically.
3
PAIRING
0.5 s
PROG.
Control point is completely
programmed
10 min
Control point is temporary
programmed for 10 minutes
END LIMITS SETTING
MANUAL MODE
Roller shutter without rigid links
and without stops
1
2 2
3
4
2 s
5
6
7
2 s
x 2
9.6 VDC
+
Red
Black
-
DIRECTION OF ROTATION
The rotation direction of the drive self-adjusts
automatically during the first few cycles.
SEMI AUTOMATIC MODE
Roller shutter without rigid links
and with stops
1
2 2
3
2 s
4
5
6
2 s
x 2
From the Application
"Help me by Somfy"
scan the QR code here
to find complete
setting instructions.
"Help me by Somfy"
16.8 VDC
available on stores
2
You can go
to the step
Roller with rigid links and without
stops
1
2 2
3
2 s
4
5
6
2 s
x 2
