RS100 SOLAR io

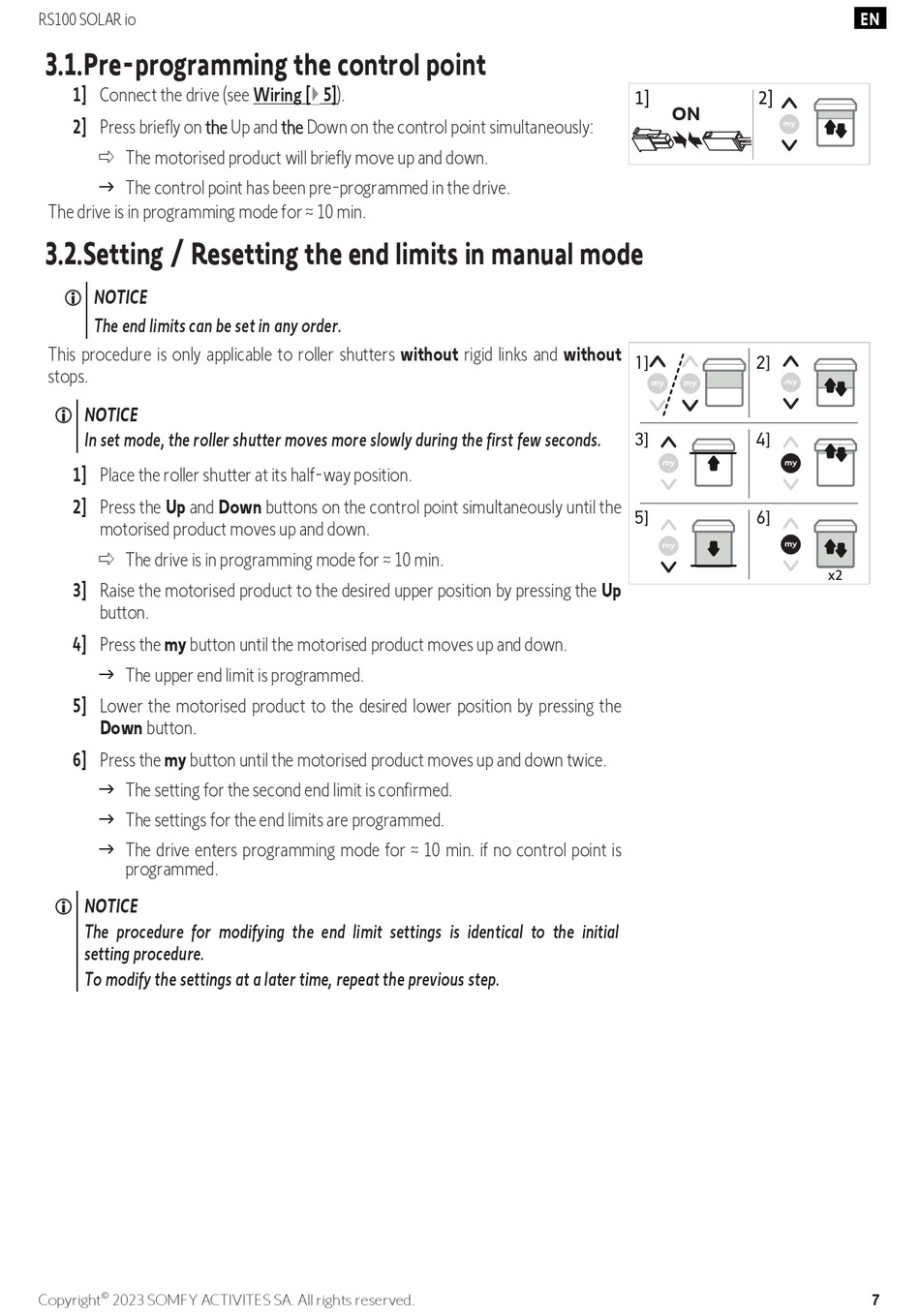

3.1.Pre-programming the control point
1] Connect the drive (see Wiring [} 5]).
2] Press briefly on the Up and the Down on the control point simultaneously:
ð The motorised product will briefly move up and down.
g The control point has been pre-programmed in the drive.
The drive is in programming mode for ≈ 10 min.
3.2.Setting / Resetting the end limits in manual mode
NOTICE
The end limits can be set in any order.
This procedure is only applicable to roller shutters without rigid links and without
stops.
NOTICE
In set mode, the roller shutter moves more slowly during the first few seconds.
1] Place the roller shutter at its half-way position.
2] Press the Up and Down buttons on the control point simultaneously until the
motorised product moves up and down.
ð The drive is in programming mode for ≈ 10 min.
3] Raise the motorised product to the desired upper position by pressing the Up
button.
4] Press the my button until the motorised product moves up and down.
g The upper end limit is programmed.
5] Lower the motorised product to the desired lower position by pressing the
Down button.
6] Press the my button until the motorised product moves up and down twice.
g The setting for the second end limit is confirmed.
g The settings for the end limits are programmed.
g The drive enters programming mode for ≈ 10 min. if no control point is
programmed.
NOTICE
The procedure for modifying the end limit settings is identical to the initial
setting procedure.
To modify the settings at a later time, repeat the previous step.
©
Copyright 2023 SOMFY ACTIVITES SA. All rights reserved.
1] 2]
ON
1] 2]
3] 4]
5] 6]
EN
x2
