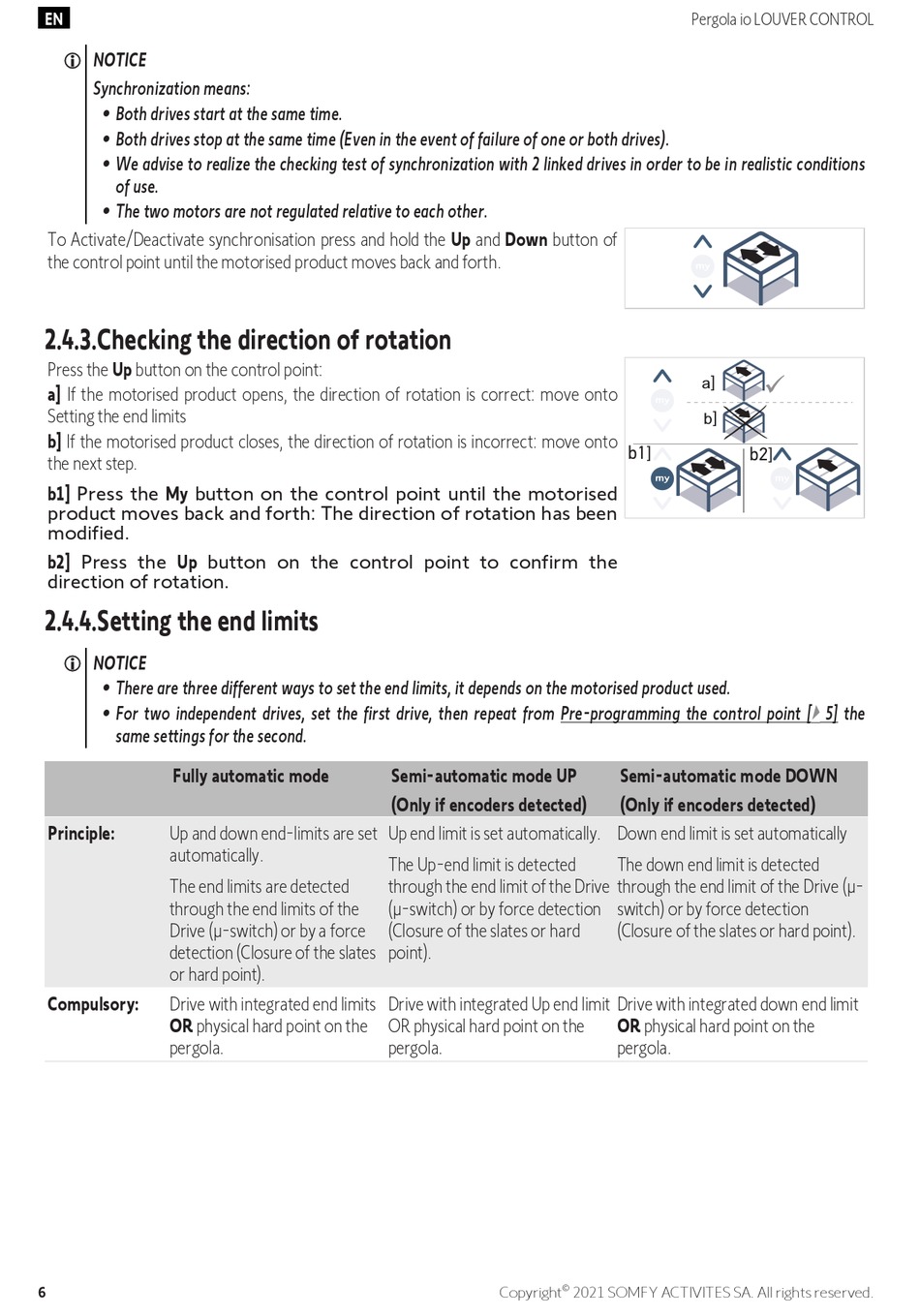

NOTICE
Synchronization means:
• Both drives start at the same time.
• Both drives stop at the same time (Even in the event of failure of one or both drives).
• We advise to realize the checking test of synchronization with 2 linked drives in order to be in realistic conditions
of use.
• The two motors are not regulated relative to each other.
To Activate/Deactivate synchronisation press and hold the Up and Down button of
the control point until the motorised product moves back and forth.
2.4.3.Checking the direction of rotation
Press the Up button on the control point:
a] If the motorised product opens, the direction of rotation is correct: move onto
Setting the end limits
b] If the motorised product closes, the direction of rotation is incorrect: move onto
the next step.
b1] Press the My button on the control point until the motorised
product moves back and forth: The direction of rotation has been
modified.
b2] Press the Up button on the control point to confirm the
direction of rotation.
2.4.4.Setting the end limits
NOTICE
• There are three different ways to set the end limits, it depends on the motorised product used.
• For two independent drives, set the first drive, then repeat from Pre-programming the control point [
same settings for the second.
Fully automatic mode
Principle:
Up and down end-limits are set
automatically.
The end limits are detected
through the end limits of the
Drive (µ-switch) or by a force
detection (Closure of the slates
or hard point).
Compulsory:
Drive with integrated end limits
OR physical hard point on the
pergola.
6
Semi-automatic mode UP
(Only if encoders detected)
Up end limit is set automatically.
The Up-end limit is detected
through the end limit of the Drive
(µ-switch) or by force detection
(Closure of the slates or hard
point).
Drive with integrated Up end limit
OR physical hard point on the
pergola.
Copyright
Pergola io LOUVER CONTROL
]
a
]
b
b1]
Semi-automatic mode DOWN
(Only if encoders detected)
Down end limit is set automatically
The down end limit is detected
through the end limit of the Drive (µ-
switch) or by force detection
(Closure of the slates or hard point).
Drive with integrated down end limit
OR physical hard point on the
pergola.
©
2021 SOMFY ACTIVITES SA. All rights reserved.
9
b2]
}
5] the
