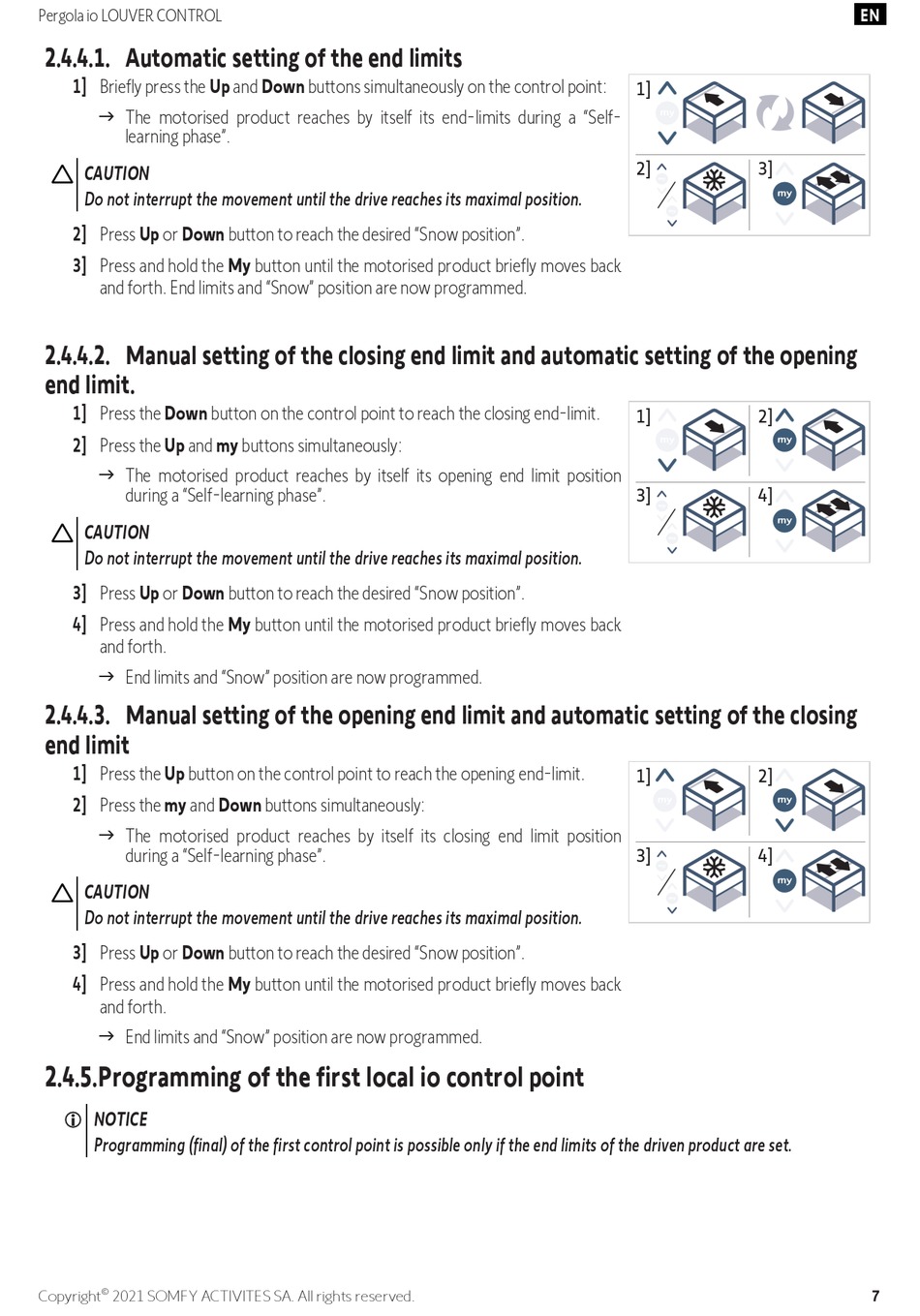

Pergola io LOUVER CONTROL
2.4.4.1. Automatic setting of the end limits
1] Briefly press the Up and Down buttons simultaneously on the control point:
g The motorised product reaches by itself its end-limits during a "Self-
learning phase".
CAUTION
Do not interrupt the movement until the drive reaches its maximal position.
2] Press Up or Down button to reach the desired "Snow position".
3] Press and hold the My button until the motorised product briefly moves back
and forth. End limits and "Snow" position are now programmed.
2.4.4.2. Manual setting of the closing end limit and automatic setting of the opening
end limit.
1] Press the Down button on the control point to reach the closing end-limit.
2] Press the Up and my buttons simultaneously:
g The motorised product reaches by itself its opening end limit position
during a "Self-learning phase".
CAUTION
Do not interrupt the movement until the drive reaches its maximal position.
3] Press Up or Down button to reach the desired "Snow position".
4] Press and hold the My button until the motorised product briefly moves back
and forth.
g End limits and "Snow" position are now programmed.
2.4.4.3. Manual setting of the opening end limit and automatic setting of the closing
end limit
1] Press the Up button on the control point to reach the opening end-limit.
2] Press the my and Down buttons simultaneously:
g The motorised product reaches by itself its closing end limit position
during a "Self-learning phase".
CAUTION
Do not interrupt the movement until the drive reaches its maximal position.
3] Press Up or Down button to reach the desired "Snow position".
4] Press and hold the My button until the motorised product briefly moves back
and forth.
g End limits and "Snow" position are now programmed.
2.4.5.Programming of the first local io control point
NOTICE
Programming (final) of the first control point is possible only if the end limits of the driven product are set.
©
