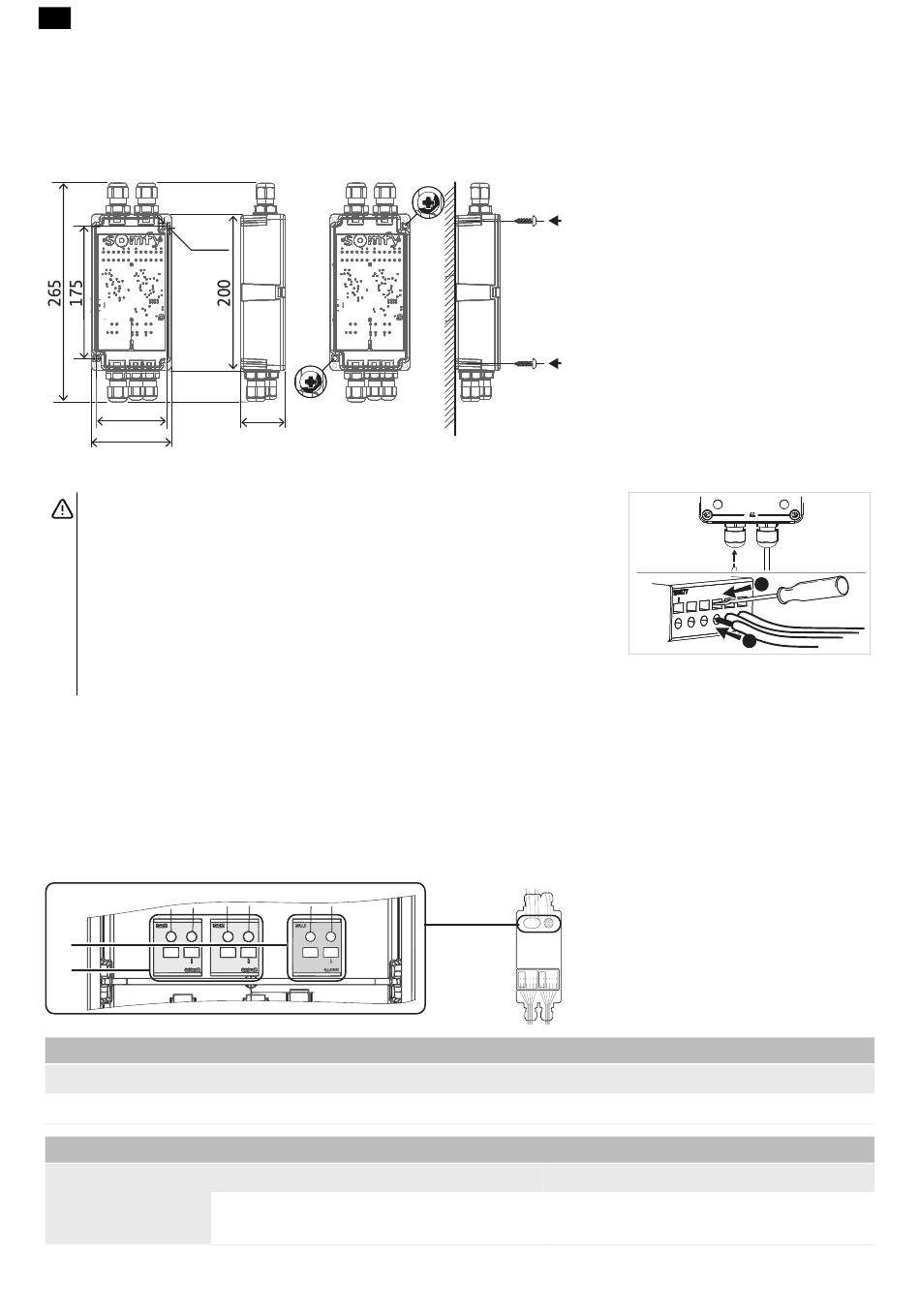

2.1.Assembly
2.1.1.Dimensions
Dimension in millimeters: 80 x 265 x 45
Use two ISO 7049 self-tapping sheet metal screws ST2.9 x 9.5-C to secure the product to the pergola.
Ø 3
68
80
2.1.2.Wiring
PRECAUTION
• The length of the cables must not exceed 10 meters.
• Only one cable must be inserted into a cable gland.
• Pay attention to the cable courses to avoid water entering.
• If more than two cable transitions are required, use the cable glands supplied
with the operating control.
• Do not touch electronic components.
• Make sure the box lid is securely closed.
1] Insert each cable through its cable gland. (Diameter of the cables is between 5
and 9 mm, and the minimum cross-section of the wires is 0.2 mm
2
3.31 mm ) and tighten them firmly.
2] Strip the wires (between 9 and 10 mm) and tighten the wires in the
connectors.
2.2.Upper description and connections
1]
2]
0 Vdc
Power supply (0 Vdc)
Control Unit
4
45
1] Wiring power supply 24 V DC
2] Wiring Ondeis 24V rain sensor
+Vdc (Rain sensor) 0 Vdc (Rain sensor)
Rain sensor power Rain sensor power
supply +24 Vdc supply 0 Vdc
1]
3]
2
to
+Vdc 0Vdc +Vdc 0Vdc C1 C2 +Vdc 0Vdc +Vdc 0Vdc C1 C2
Motor Encoder Motor Encoder
+Vdc
Power supply +24 Vdc
Contact + -
Contact 1
©
